SQUARE D

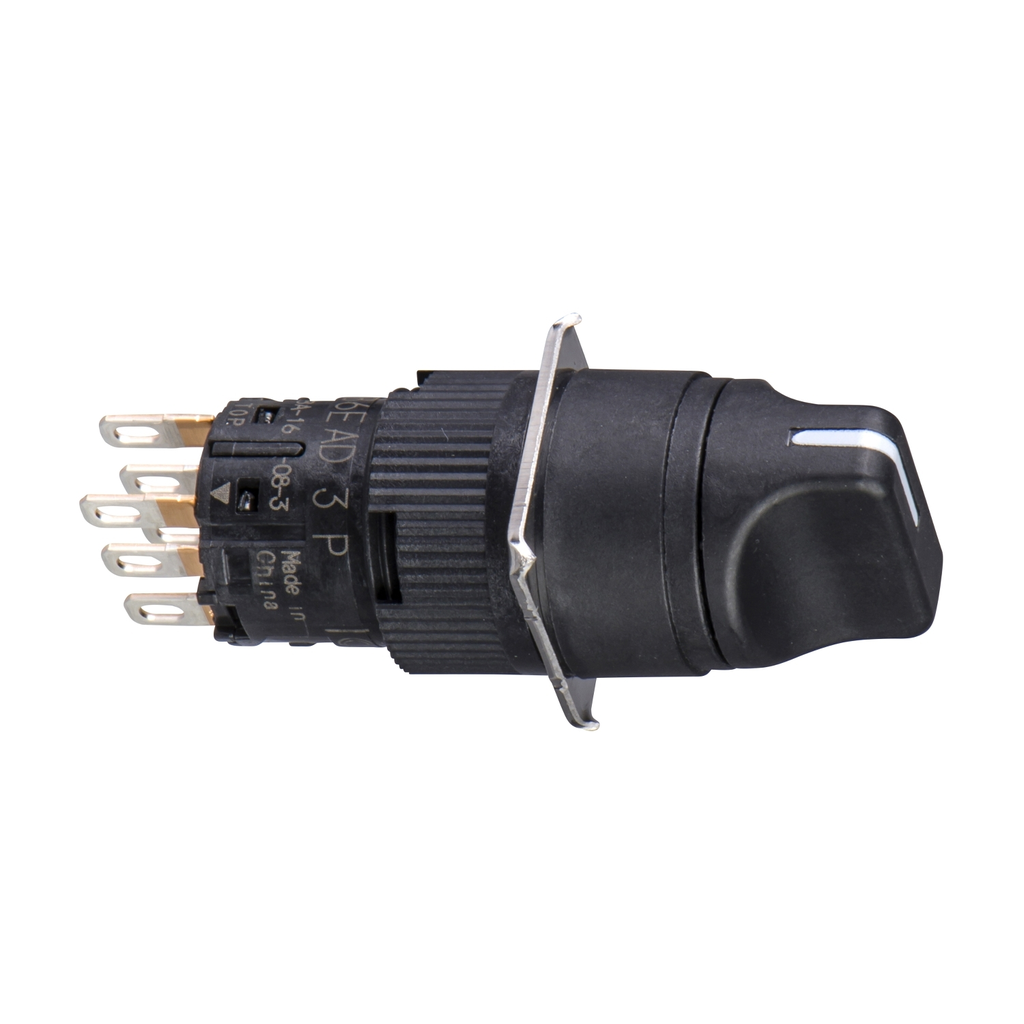

Monolithic selector switch, Harmony XB6E, round black, 16mm, 2 positions, projecting handle, stay put, 1CO

MONOLITHIC SELECTOR SWITCH, HA

SQDXB6EAD221P XB6EAD221P 3389110640021
8.67 / EA
http://schema.org/OutOfStock
Monolithic selector switch, Harmony XB6E, round black, 16mm, 2 positions, projecting handle, stay put, 1CO
  • Bezel Material: Plastic
  • Country of Origin: France
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • Ie Rated Operational Current : 1 A 120 V, AC-13 IEC 60947-5-1, 1.5 A 120 V, AC-12 IEC 60947-5-1, 1 A 240 V, AC-12 IEC 60947-5-1, 0.7 A 240 V, AC-13 IEC 60947-5-1, 1 A 24 V, DC-12 IEC 60947-5-1, 0.7 A 24 V, DC-13 IEC 60947-5-1, 0.2 A 125 V, DC-12 IEC 60947-5-1, 0.15 A 125 V, DC-13 IEC 60947-5-1
  • Important Information Attributes
    • Connections Terminals : insulated faston 2.8 x 0.5 mm, solder terminal <= 0.75 mm² AWG 19, fast connector socket
    • Ie Rated Operational Current : 1 A 120 V, AC-13 IEC 60947-5-1, 1.5 A 120 V, AC-12 IEC 60947-5-1, 1 A 240 V, AC-12 IEC 60947-5-1, 0.7 A 240 V, AC-13 IEC 60947-5-1, 1 A 24 V, DC-12 IEC 60947-5-1, 0.7 A 24 V, DC-13 IEC 60947-5-1, 0.2 A 125 V, DC-12 IEC 60947-5-1, 0.15 A 125 V, DC-13 IEC 60947-5-1
    • Ith Conventional Free Air Thermal Current : 3 A fast connector socket), 5 A
    • Carbon Footprint Of The Distribution Phase A4 : 0.0014384247, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0199575342
    • Carbon Footprint Of The Installation Phase A5 : 0.001240137, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2457328767
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Certificate Agency : CCC, cURus
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-03-26
    • Return Indicator : Y
    • Stocking Flag : N
    • Stock Policy : 2
    • Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2403025EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Conformity Date : 2129
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • China Rohs Label : 1
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Product Kit Identifier : N
    • Bezel Material : plastic
    • Compatibility Code : XB6
    • Contact Operation : snap action
    • Contact Resistance : 50 mOhm 1/6 V
    • Contacts Material : gold-flashed silver
    • Contacts Type And Composition : 1 C/O
    • Device Short Name : XB6E
    • Electrical Durability : 100000 cycles, AC, 0.7 A 220 V IEC 60947-5-1 appendix C
    • Marking : CE
    • Mechanical Durability : 250000 cycles
    • Mounting Diameter : 16 mm
    • Operator Position Information : 2 positions
    • Operator Profile : black standard handle
    • Overvoltage Category : II conforming to IEC 60536
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : monolithic selector switch
    • Range Of Product : Harmony XB6E
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 5
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Short Circuit Protection : 2 A cartridge fuse gG
    • Software Version : v5.9.4
    • Sustainable Packaging : No
    • Tightening Torque : 0.6-1 N.m
    • Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
    • Type Of Operator : stay put
    • Vibration Resistance : 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Warranty In Months : 18
    • Pep Code : ENVPEP2403025EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : Harmony XB6 illuminated rectangular green push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 16mm diameter panel. It has power consumption of 0.39375 W with use rate of 71% for a period of 10 years and product is adhering to standards IEC 60947-5-1.
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y2 : 10
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; FR
    • Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
    • Recyclability Potential In 2 : 17
    • Offer Owner Code : 190786
    • Pn : 1
  • Environment Attributes Main
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.2683689726
    • Ambient Air Temperature For Operation : -10-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2403025EN
    • Environmental Disclosure : ENVPEP2403025EN
    • Eu Rohs Directive : Compliant
    • Ip Degree Of Protection : IP65 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2403025EN
    • Pep Verification Date : 2023-10-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : monolithic selector switch
    • Range Of Product : Harmony XB6E
  • ETIM
    • ETIM 8 : EC001029
    • ETIM 9 : EC001029
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
