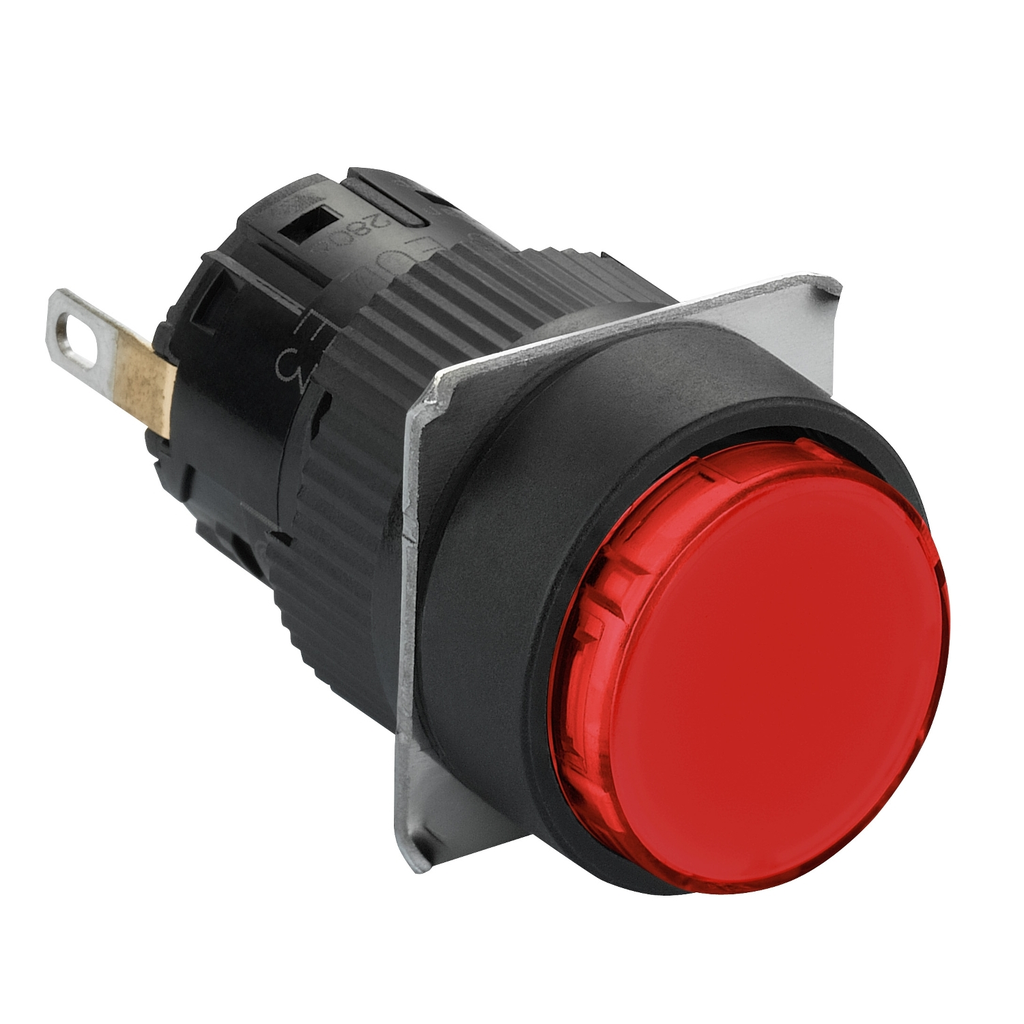

Monolithic pilot light, Harmony XB6E, round red, 16mm, plastic, IP65, integral LED, 24V DC

Monolithic pilot light, Harmony XB6E, round red, 16mm, plastic, IP65, integral LED, 24V DC

SQDXB6EAV4BP XB6EAV4BP 3389110624748
6.74 / EA
http://schema.org/OutOfStock
Monolithic pilot light, Harmony XB6E, round red, 16mm, plastic, IP65, integral LED, 24V DC
  • Bezel Material: Plastic
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Complementary Attributes
    • UI Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • UIMP Rated Impulse Withstand Voltage : 2.5 kV IEC 60947-1
    • US Rated Supply Voltage : 24 V DC polarised
  • Important Information Attributes
    • Carbon Footprint Of The Distribution Phase A4 : 0.0013076613, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0158125
    • Carbon Footprint Of The Installation Phase A5 : 0.0013515121, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.3 kg CO2 eq., 0.2993649194
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.2 kg CO2 eq., 0.21316
    • Connections Terminals : insulated faston 2.8 x 0.5 mm, solder terminal <= 0.75 mm² AWG 19, fast connector socket
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2312044EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : plastic
    • Compatibility Code : XB6
    • Device Short Name : XB6E
    • Light Block Supply : direct
    • Mounting Diameter : 16 mm
    • Overvoltage Category : II conforming to IEC 60536
    • Package Weight Lbs : 10.000 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : monolithic pilot light
    • Range Of Product : Harmony XB6E
    • Returnability : Yes
    • Service Life : 30000 h
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Signalling Type : steady
    • Sustainable Packaging : No
    • Tightening Torque : 0.6-1 N.m
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Vibration Resistance : 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Pep Code : ENVPEP2312044EN
    • Pep Verification Date : 2023-12-07
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : Harmony XB6 complete pilot light is part of the range diameter 16mm plastic.It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness.
    • Functional Unit Unit : Unit
    • Product Kit Identifier : N
    • Product Manager : MARIAM  TAYMOUR
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 0.5309965927
    • Circularity Profile : ENVEOLI2312044EN
    • Environmental Disclosure : ENVPEP2312044EN
    • IP Degree Of Protection : IP65 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2312044EN
    • Pep Verification Date : 2023-12-07
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : monolithic pilot light
    • Range Of Product : Harmony XB6E
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
