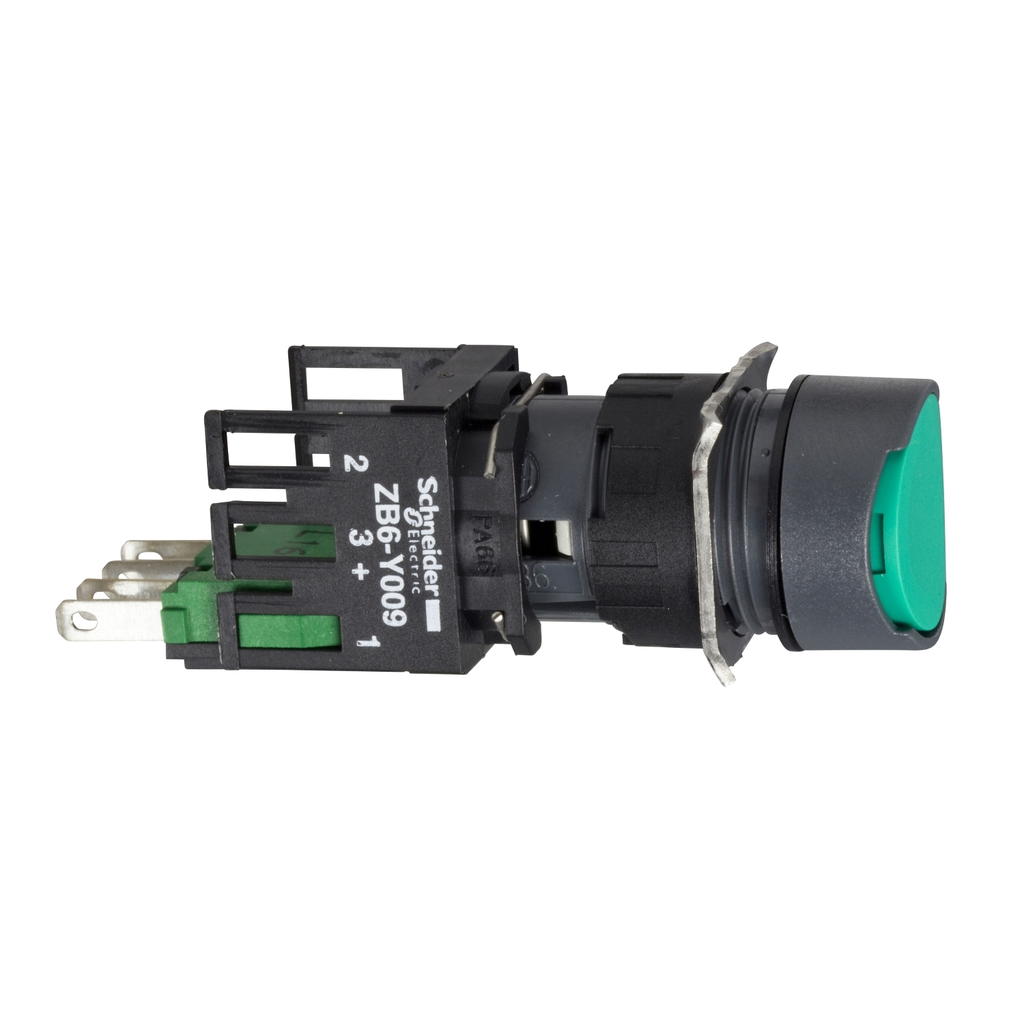

Complete push button, Harmony XB6, green flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked

COMPLETE PUSH BUTTON, HARMONY

SQDXB6AA35B XB6AA35B 3389110764284
21.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete push button, Harmony XB6, green flush pushbutton, 16mm, spring return, 1NO + 1NC, unmarked-1
  • Bezel Material: Plastic
  • Country of Origin: France
  • Height: 18 mm
  • Net Weight: 0.022 kg
  • Operating Force: 3.5 N, 4.5 N
  • Operating Position: Any Position
  • Warranty Length: 18 mth
  • Weight: 0.022 kg
  • Width: 18 mm
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : GOST || CSA || CCC || UL
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL 508 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C 852 || IEC 60947-5-5 || JIS C 4520 || IEC 60947-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 || 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP65 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2403025EN
    • Packaging Without Single Use Plastic : No
    • Toxic Heavy Metal Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2403025EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.3415605106
  • Complementary
    • Terminals Description Iso N°1 : (13-14)NO || (21-22)NC
    • Operating Force : 3.5 N NO changing electrical state || 4.5 N NC changing electrical state
    • Short-Circuit Protection : 6 A cartridge fuse gG
    • Operating Travel : 1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Net Weight : 0.022 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • Cad Overall Height : 18 mm
    • Electrical Durability : 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    • Mechanical Durability : 2000000 cycles
    • Operating Position : any position
    • Electrical Reliability : λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    • Cad Overall Width : 18 mm
    • Cad Overall Depth : 57 mm
  • Specifications
    • Country of Origin : France
    • Width : 18 mm
    • Height : 18 mm
    • Weight : 0.022 kg
    • Range Of Product : Harmony XB6
    • Mounting Diameter : 16 mm
    • Type Of Operator : spring return
    • Product Or Component Type : complete push-button
    • Shape Of Signaling Unit Head : round
    • Connections - Terminals : Faston connectors 2.8 x 0.5 mm
    • Contacts Type And Composition : 1 NO + 1 NC
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic
    • Contact Operation : slow-break
    • Operator Profile : green flush, unmarked
    • Device Short Name : XB6
