SQUARE D

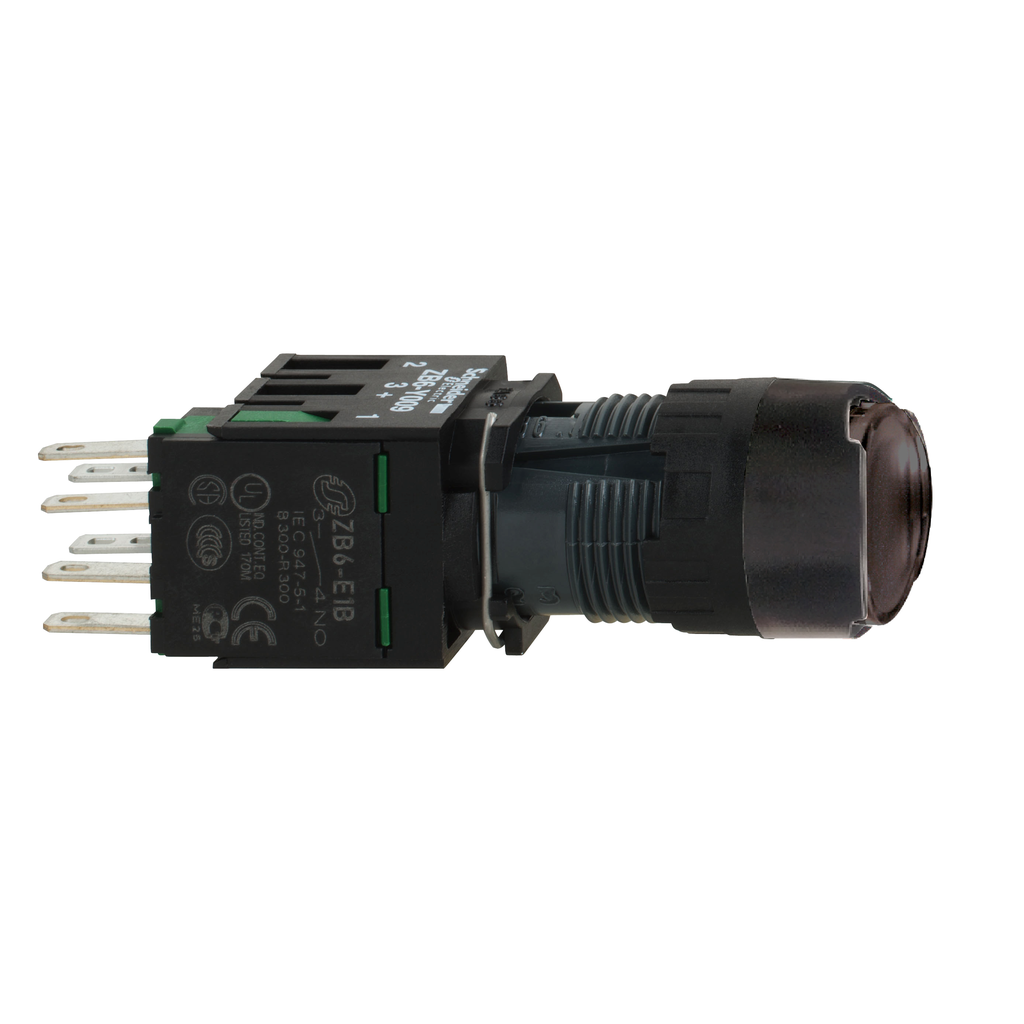

Complete push button, Harmony XB6, black flush pushbutton, 16mm, spring return, 1NO, unmarked

COMPLETE PUSH BUTTON, HARMONY

SQDXB6AA21B XB6AA21B 785901325673
16.56 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete push button, Harmony XB6, black flush pushbutton, 16mm, spring return, 1NO, unmarked-1
  • Bezel Material: Plastic
  • Certifications: CCC, CSA, GOST, UL
  • Contact Material: Silver Alloy
  • Height: 18 mm
  • Net Weight: 0.019 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C 4520, JIS C 852, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 18 mm
This push-button provides a simple and robust control to machines and processes Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed into a standard 16mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X)
QTY
  • Product Description
  • Specifications
This push-button provides a simple and robust control to machines and processes Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments It is easily installed into a standard 16mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X)
  • Environment
    • Product Certifications : CSA || CCC || UL || GOST
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : UL 508 || JIS C 4520 || IEC 60947-5-5 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || JIS C 852
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP65 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Terminals Description Iso N°1 : (13-14)NO
    • Short-Circuit Protection : 6 A cartridge fuse gG
    • Operating Force : 3.5 N NO changing electrical state
    • Operating Travel : 1 mm NO changing electrical state) || 3.5 mm total travel)
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Net Weight : 0.019 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • Cad Overall Height : 18 mm
    • Electrical Durability : 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    • Mechanical Durability : 2000000 cycles
    • Operating Position : any position
    • Electrical Reliability : λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    • Cad Overall Width : 18 mm
    • Cad Overall Depth : 57 mm
  • Specifications
    • Width : 18 mm
    • Height : 18 mm
    • Weight : 0.019 kg
    • Range Of Product : Harmony XB6
    • Mounting Diameter : 16 mm
    • Type Of Operator : spring return
    • Product Or Component Type : complete push-button
    • Shape Of Signaling Unit Head : round
    • Connections - Terminals : Faston connectors 2.8 x 0.5 mm
    • Contacts Type And Composition : 1 NO
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic
    • Contact Operation : slow-break
    • Operator Profile : black flush, unmarked
    • Device Short Name : XB6
