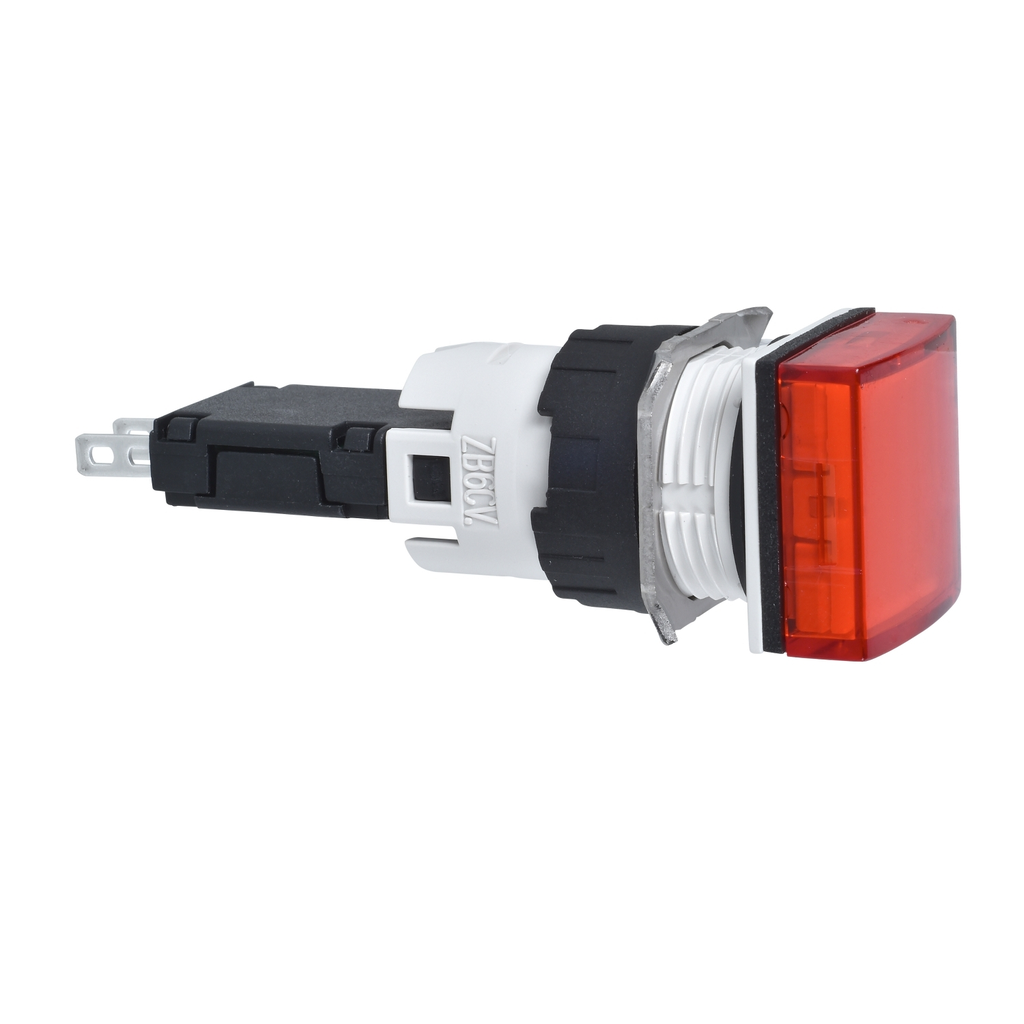

This Harmony XB6 red, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a square head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || CCC || GOST || UL
• Ambient Air Temperature For Operation : -25-70 °C
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
• Standards : IEC 60947-5-5 || IEC 60947-1 || JIS C 852 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6 || 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP65 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Nema Degree Of Protection : NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
• Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
• Electrical Shock Protection Class : class II IEC 61140
• Protective Treatment : TC
• Resistance To Fast Transients : 2 kV IEC 61000-4-4
• Electromagnetic Emission : class B IEC 55011
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2312044EN
• Packaging Without Single Use Plastic : No
• Scip Number : 902182a2-9610-45f2-840e-6da530122efe
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Minimum Percentage Of Recycled Plastic Content : 0
• Circularity Profile : ENVEOLI2312044EN
• Take-Back : No
• Global Warming ; Total Life Cycle​ : 1 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.6375765927
• Complementary
• Height : 18 mm
• Terminals Description Iso N°1 : (+ -)PL
• Net Weight : 0.015 kg
• [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
• Current Consumption : 15 mA
• Connections - Terminals : Faston connectors 2.8 x 0.5 mm
• Surge Withstand : 1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5
• [Ui] Rated Insulation Voltage : 250 V 2)IEC 60947-1
• Signalling Type : steady
• Supply Voltage Limits : 6-30 V AC/DC
• Operating Position : any position
• Width : 18 mm
• Depth : 57 mm
• Specifications
• Country of Origin : Mexico
• Width : 18 mm
• Height : 18 mm
• Weight : 0.015 kg
• [Us] Rated Supply Voltage : 12...24 V AC/DC
• Range Of Product : Harmony XB6
• Light Source : LED
• Light Block Supply : direct
• Mounting Diameter : 16 mm
• Product Or Component Type : complete pilot light
• Shape Of Signaling Unit Head : square
• Cap/Operator Or Lens Colour : red
• Sale Per Indivisible Quantity : 1
• Bezel Material : plastic
• Device Short Name : XB6
• Bulb Base : integral LED
