Complete illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton, 32mm, trigger turn pull to release, 2NC

COMPLETE ILLUMINATED MUSHROOM

SQDXB6ETI523P XB6ETI523P 3606480597688
25.01 / EA
http://schema.org/OutOfStock

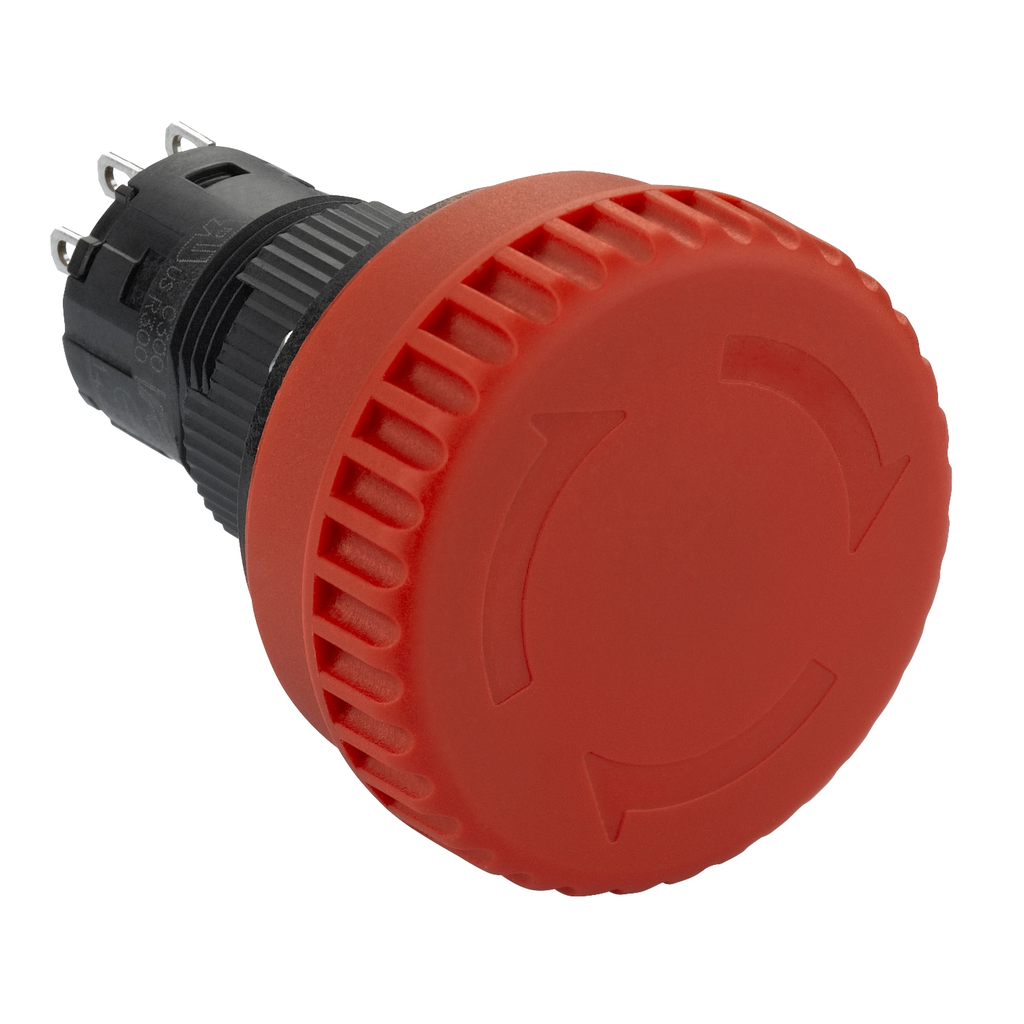

Mayer-DDS-Complete illuminated mushroom head push button, Harmony XB6E, 16mm, red pushbutton, 32mm, trigger turn pull to release, 2NC-1
  • Bezel Material: Plastic
  • Light Source: 24 V
This Harmony XB6 illuminated emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a a circular head shape, and is supplied with a turn/pull to release red mushroom, diameter 32mm, with trigger action. It features 2 NC slow break contacts and faston connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 20g. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB6 illuminated emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a a circular head shape, and is supplied with a turn/pull to release red mushroom, diameter 32mm, with trigger action. It features 2 NC slow break contacts and faston connection type. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It weighs 20g. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Electrical Durability : 1000000 cycles, 50000 cycles, DC-13
    • Vibration Resistance : +/- 0.7 mm (f= 10-500 Hz), +/- 0.7 mm (f= 10-500 Hz)
    • IE Rated Operational Current : 1.5 A 120 V, AC-12, C300 IEC 60947-5-1, 0.3 A 120 V, AC-15, C300 IEC 60947-5-1, 1 A 240 V, AC-12, C300 IEC 60947-5-1, 0.3 A 240 V, AC-15, C300 IEC 60947-5-1, 1 A 24 V, DC-12, R300 IEC 60947-5-1, 0.7 A 24 V, DC-13, R300 IEC 60947-5-1, 0.2 A 125 V, DC-12, R300 IEC 60947-5-1, 0.15 A 125 V, DC-13, R300 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.0036484217, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0494909721
    • Carbon Footprint Of The Installation Phase A5 : 0.0097788204, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2270006192
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2312039EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Bezel Material : plastic
    • Compatibility Code : XB6
    • Device Short Name : XB6E
    • Insulation Resistance : < 100 MOhm
    • Light Source : LED 24 V DC polarised
    • Mounting Diameter : 16 mm
    • Operator Profile : red mushroom Ø 32 mm
    • Package Weight Lbs : 27.9 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : complete illuminated mushroom head push-button
    • Range Of Product : Harmony XB6E
    • Returnability : No
    • Shape Of Signaling Unit Head : round
    • Shock Resistance : 500 m/s²mechanical durability
    • Short Circuit Protection : 6 A fuse gG IEC 60269
    • Sustainable Packaging : No
    • Tightening Torque : 0.6-1 N.m
    • Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
    • Type Of Operator : trigger action
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • ITH Conventional Free Air Thermal Current : 5 A
    • Connections Terminals : solder terminal <= 0.75 mm² AWG 19
    • Pep Code : ENVPEP2312039EN
    • Pep Verification Date : 2023-12-07
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Functional Unit Description : This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It has energy consumption of 0.0675 W at use rate of 71% during 10 years. Product meets the international standards such as EN/IEC 60947-1 and EN/IEC 60204 -1.
    • Product Kit Identifier : N
    • Product Manager : MARIAM  TAYMOUR
  • Complementary Attributes
    • IE Rated Operational Current : 1.5 A 120 V, AC-12, C300 IEC 60947-5-1, 0.3 A 120 V, AC-15, C300 IEC 60947-5-1, 1 A 240 V, AC-12, C300 IEC 60947-5-1, 0.3 A 240 V, AC-15, C300 IEC 60947-5-1, 1 A 24 V, DC-12, R300 IEC 60947-5-1, 0.7 A 24 V, DC-13, R300 IEC 60947-5-1, 0.2 A 125 V, DC-12, R300 IEC 60947-5-1, 0.15 A 125 V, DC-13, R300 IEC 60947-5-1
    • UI Rated Insulation Voltage : 250 V 3)
    • UIMP Rated Impulse Withstand Voltage : 2.5 kV
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 0.2899188334
    • Circularity Profile : ENVEOLI2312039EN
    • Environmental Disclosure : ENVPEP2312039EN
    • IP Degree Of Protection : IP65 IEC 60529
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2312039EN
    • Pep Verification Date : 2023-12-07
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete illuminated mushroom head push-button
    • Range Of Product : Harmony XB6E
