16mm push button, Harmony XB6, selector switch, nonilluminated, black 3 position maintained, 2NO contacts

16mm push button, Harmony XB6,

SQDXB6AD233B XB6AD233B 785901161226
19.13 / EACH
http://schema.org/OutOfStock

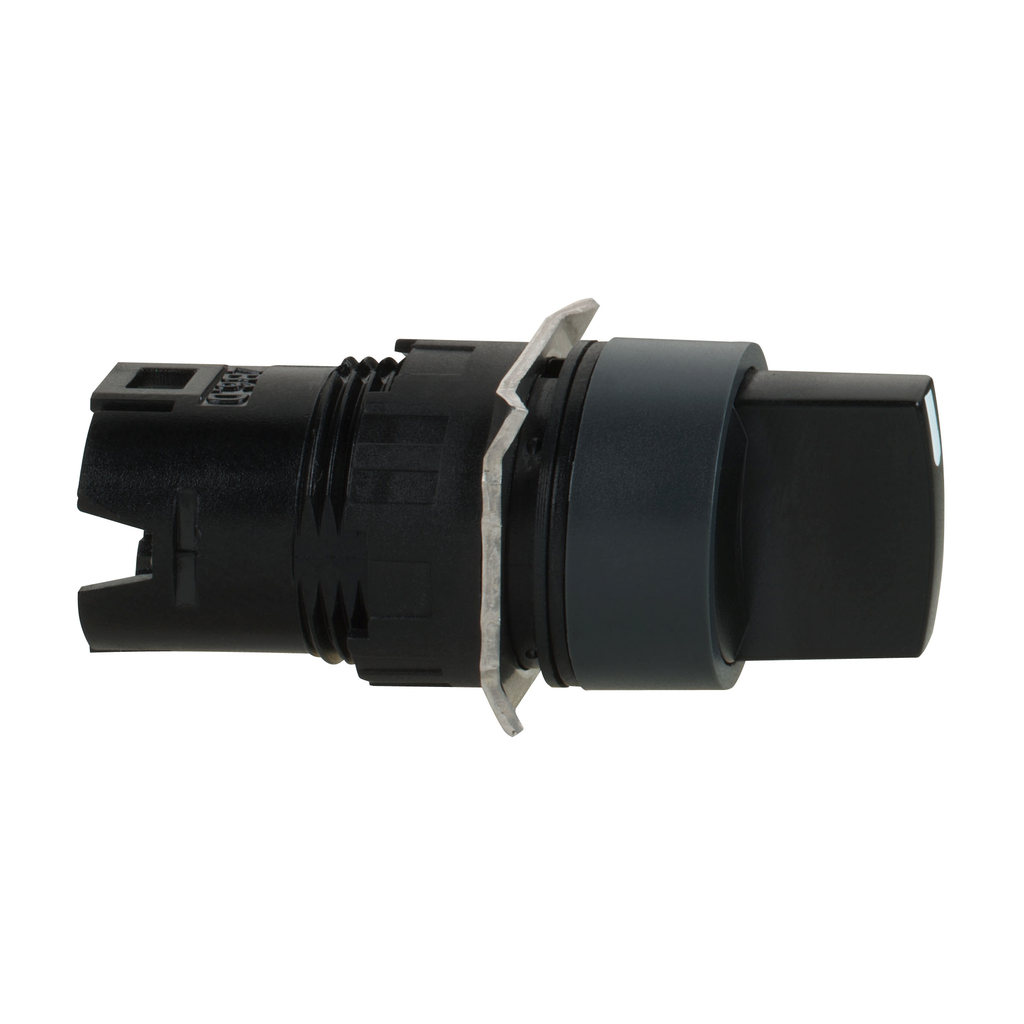

Mayer-DDS-16mm push button, Harmony XB6, selector switch, nonilluminated, black 3 position maintained, 2NO contacts-1
  • Bezel Material: Plastic
  • Certifications: CCC, CSA, GOST, UL
  • Contact Material: Silver Alloy
  • Depth: 68 mm
  • Height: 18 mm
  • Net Weight: 0.024 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C 852, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 18 mm
XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted. These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more. This operator is a complete 16mm plastic 3 position selector switch. Each of the selector switch positions is 60 degrees apart. The selector switch has a black knob. Selector switch has 2 normally open contacts. Contacts has a UL B300 and UL R300 current rating. Contacts has 2.8 x 0.5 mm faston connectors. Selector switch is 0.71 inches tall, 0.71 inches wide and 2.68 inches deep. Selector switch weighs 0.05 lbs. Operator is NEMA 4, 4X and 13 rated. Selector switch is UL listed and CSA certified. "It is installed into a Ø 16mm panel cutout." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."
QTY
  • Product Description
  • Specifications
XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted. These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more. This operator is a complete 16mm plastic 3 position selector switch. Each of the selector switch positions is 60 degrees apart. The selector switch has a black knob. Selector switch has 2 normally open contacts. Contacts has a UL B300 and UL R300 current rating. Contacts has 2.8 x 0.5 mm faston connectors. Selector switch is 0.71 inches tall, 0.71 inches wide and 2.68 inches deep. Selector switch weighs 0.05 lbs. Operator is NEMA 4, 4X and 13 rated. Selector switch is UL listed and CSA certified. "It is installed into a Ø 16mm panel cutout." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."
  • Environment
    • Product Certifications : GOST || CCC || CSA || UL
    • Ambient Air Temperature For Operation : -25-70 °C
    • Standards : JIS C 852 || IEC 60947-5-5 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : +/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP65 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94
    • Electrical Shock Protection Class : class II IEC 61140
    • Protective Treatment : TC
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Height : 18 mm
    • Terminals Description Iso N°1 : (13-14)NO
    • Short-Circuit Protection : 6 A cartridge fuse gG
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Net Weight : 0.024 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV IEC 60947-1
    • Electrical Durability : 1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Connections - Terminals : Faston connectors 2.8 x 0.5 mm
    • [Ui] Rated Insulation Voltage : 250 V 3)IEC 60947-1
    • [Ie] Rated Operational Current : 3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
    • Mechanical Durability : 500000 cycles
    • Electrical Reliability : λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
    • Width : 18 mm
    • Depth : 68 mm
  • Specifications
    • Range Of Product : Harmony XB6
    • Mounting Diameter : 16 mm
    • Type Of Operator : stay put
    • Product Or Component Type : complete selector switch
    • Shape Of Signaling Unit Head : square
    • Contacts Type And Composition : 2 NO
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : plastic
    • Contact Operation : slow-break
    • Operator Profile : black standard handle
    • Operator Position Information : 3 positions 60°
    • Operating Position : any position
    • Device Short Name : XB6
