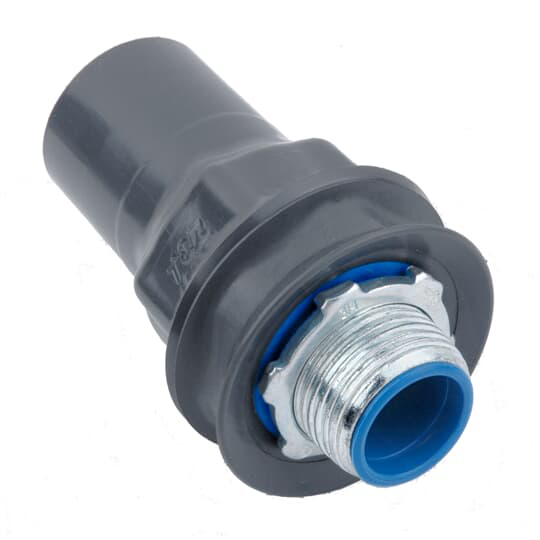

PVC Coated Liquitight Conduit Connector, Straight, Pipe Size 1 Inch/27 Metric, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Steel Fitting, Dark Gray

• Features
• A minimum of .040 inch (40 mil) PVC coating is bonded to the exterior.
• Double coated with a nominal .002 inch (2 mil) blue urethane on both the interior and exterior, before PVC coating is applied.
• Pressure-sealing sleeves are designed to protect the connection.
• PVC coated connectors are available in straight, 45 degree and 90 degree configurations
• Ocal uses T&B Industrial Liquidtight fittings to insure quality installations.

• European Specifications (ETIM)
• ETIM : EC001180 Screw connection for protective metallic hose
• Nominal diameter : 27mm
• Nominal size in inch : 1 inch
• Model : Straight
• Revolving thread : N
• Construction type : External thread
• Material housing : Steel
• Surface protection : Other
• Packaging
• Inner Dimensions (inches) : xx
• Outer Quantity : 20
• Outer Dimensions (inches) : 11.55x7.6x8.25
• Weight Uom : 0.47 lbs. Each
• North American Specifications (UNSPSC)
• UNSPSC : 39121420 Liquid tight connectors
• IGCC : 4585 Liquid tight connectors
• Brand Name : Ocal
• Type : Liquidtight Conduit Fitting - Straight
• Special Features : Pressure-Sealing Sleeves Protect the Connection
• Application : To Positively Bond Conduit to Box or Enclosure
• Size : 1 Inch/27mm
• Connection : Straight
• Material : Steel
• Finish : PVC Coated
• Color : Dark Gray
• Environmental Conditions : Hazardous Locations
