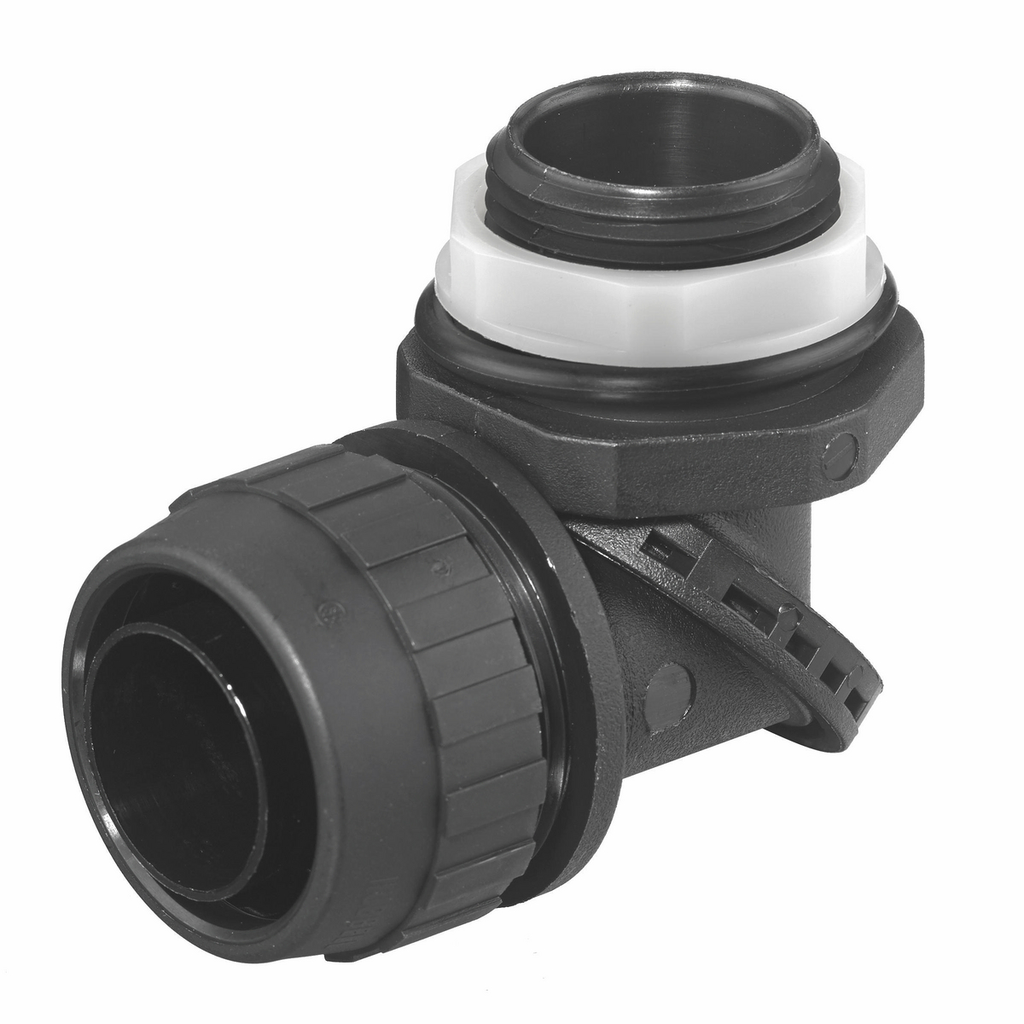

Kellems Wire Management, Liquidtight System, SwivelLok® Multi-Position Male Liquid Tight Connector, 1", Non-Metallic, Black

SWIVEL MALE L/T CONN 1 NM

HUBPS1009NBK PS1009NBK 783585339184
0.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Kellems Wire Management, Liquidtight System, SwivelLok® Multi-Position Male Liquid Tight Connector, 1", Non-Metallic, Black-1
  • Material: Nylon
  • Width: 1.800 in
Kellems Wire Management, Liquidtight System, SwivelLok® Multi-Position Male Liquid Tight Connector, 1", Non-Metallic, Black
QTY
  • Product Description
  • Features
  • Specifications
Kellems Wire Management, Liquidtight System, SwivelLok® Multi-Position Male Liquid Tight Connector, 1", Non-Metallic, Black
  • Features
    • Nylon compression nut has a tapered dome to tighten ferrule onto conduit
    • Neoprene O-ring provides liquidtight seal
    • Non integral ferrule provides conduit seal and pullout protection
    • Swiveled to any position from straight to 90°
  • Specifications
    • Country of Origin : US
    • Width : 1.800 in
    • Each - Width : 1.800 in
    • Industry Standard(s) : CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
    • Product Type : PolyTuff® SwivelLok® Fittings
    • Standards - RoHS Compliance Status : CM
    • Application : Fittings are to be used with PolyTuff® I and PolyTuff® II
    • Color : Black
    • Standard : CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
    • Type : PolyTuff® SwivelLok® Non-Metallic Liquidtight Fittings
    • Style : SwivelLok® Multi-Position
    • Trade Size : 1
    • Class Code : A52
    • Description - Invoice : SWIVEL MALE L/T CONN, 1", NM, BK
    • Freight Class Code : 06168002
    • Harmonization Code : 3926909999
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : HPWPS1009NBK
    • Sub Class Code : A52A500
    • Material : Nylon
    • Base Unit of Measure : EA
    • BOX SIZE : 4.400x6.200x5.500 (in)
    • Carton - Gross Weight per Pack : 0.8 lb.
    • Carton - Number of Sub Packs : 5
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585339184
    • Carton - Total Units : 5 EA
    • Case - Total Units : 20 EA
    • Case Weight : 5.869 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Pallet Height : 46.200 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 418.600 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Yes
