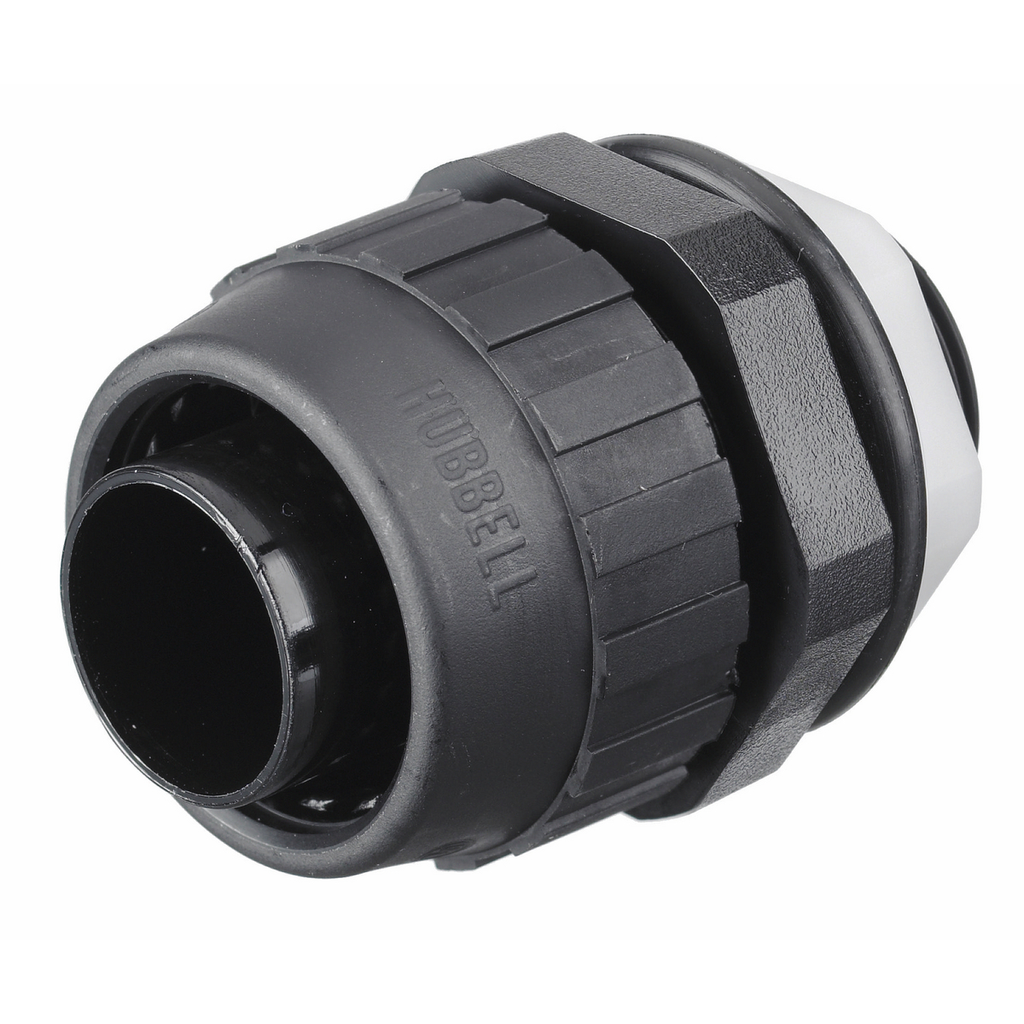

Kellems Wire Management, Liquidtight System, PolyTuff® Straight Male Liquid Tight Connector, 3/4", Non-Metallic, Black

LQT CONN NM MALE STR 3/4IN

HUBP075NBKA P075NBKA 783585339160
4.45 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Kellems Wire Management, Liquidtight System, PolyTuff® Straight Male Liquid Tight Connector, 3/4", Non-Metallic, Black-1
  • Material: Nylon
  • Width: 1.520 in
Kellems Wire Management, Liquidtight System, PolyTuff® Straight Male Liquid Tight Connector, 3/4", Non-Metallic, Black
QTY
  • Product Description
  • Features
  • Specifications
Kellems Wire Management, Liquidtight System, PolyTuff® Straight Male Liquid Tight Connector, 3/4", Non-Metallic, Black
  • Features
    • Nylon compression nut has a tapered dome to tighten ferrule onto conduit
    • Neoprene O-ring provides liquidtight seal
    • Non integral ferrule provides conduit seal and pullout protection
  • Specifications
    • Engineering Drawing 1 Display Text : P075NBKA AutoCAD Drawing
    • General Literature Asset 2 Display Text : Industrial Solutions
    • General Literature Asset 3 Display Text : 50A Twist-Lock® Insulgrip® Conduit Adapters
    • Country of Origin : United States
    • Width : 1.520 in
    • Industry Standard(s) : CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
    • Product Type : PolyTuff® Straight Fittings
    • Standards - RoHS Compliance Status : CM
    • Application : Fittings are to be used with PolyTuff® I and PolyTuff® II
    • Color : Black
    • Standard : CSA Certified;UL Listed:UL50 Type 4X, 12 and 13
    • Type : PolyTuff® Non-Metallic Liquidtight Fittings
    • General Literature Asset 1 Display Text : Wire Management Solutions Brochure
    • Style : Straight
    • Trade Size : 3/4
    • Class Code : A52
    • Description - Invoice : STRAIGHT MALE LT CONN 3/4 IN NM BLACK
    • Freight Class Code : 06168002
    • Harmonization Code : 3926909999
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : P075NBK
    • Sub Class Code : A52A500
    • Material : Nylon
    • Base Unit of Measure : EA
    • BOX SIZE : 5.000x8.500x5.600 (in)
    • Carton - Gross Weight per Pack : 1.95 lb.
    • Carton - Number of Sub Packs : 25
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585339160
    • Carton - Total Units : 25 EA
    • Case - Total Units : 100 EA
    • Case Weight : 7.852 lb.
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
    • Pallet - GTIN - Package : 70783585339169
    • Pallet Height : 45.600 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 598.400 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Yes
