Squeeze Connector 1-1/2", Die Cast Zinc

Squeeze Connector 1-1/2", Die Cast Zinc

BRG414DC2 414-DC2 781747154149
12.21 / Each
http://schema.org/OutOfStock
Mayer-DDS-Squeeze Connector 1-1/2", Die Cast Zinc-1
  • Country of Origin: USA
  • Depth: 0.75 in
  • Finish: Ball Burnished, Mirror Smooth
  • Length: 2.625 in
  • Material: Die-Cast Zinc
  • Warranty Length: 1 yr
  • Weight: 41.6 lb
  • Width: 1.49 in

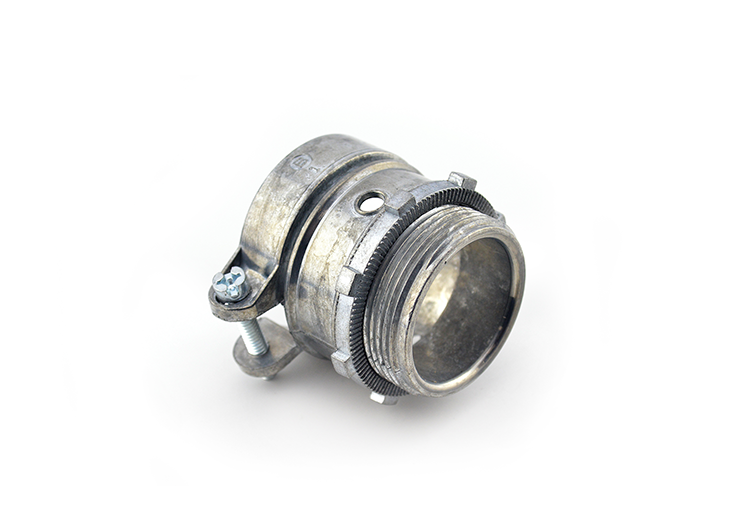

Use Bridgeport’s 414-DC2 Die Cast Zinc Squeeze Connector to connect 1-1/2" flexible metal conduit (FMC) or armored cable to an electrical box or enclosure. Die cast zinc connectors feature a precise finish, finish and excellent corrosion resistance for use in harsh environments. To install, insert flexible metal conduit into the squeeze connector and tighten down a single flex screw to secure the conduit in place. Then, attach the connector to a 1-1/2" knockout using Bridgeport’s legendary locknut. Bridgeport’s die cast zinc squeeze connectors come in flex trade sizes 3/8" through 4".
QTY
  • Product Description
  • Features
  • Specifications
Use Bridgeport’s 414-DC2 Die Cast Zinc Squeeze Connector to connect 1-1/2" flexible metal conduit (FMC) or armored cable to an electrical box or enclosure. Die cast zinc connectors feature a precise finish, finish and excellent corrosion resistance for use in harsh environments. To install, insert flexible metal conduit into the squeeze connector and tighten down a single flex screw to secure the conduit in place. Then, attach the connector to a 1-1/2" knockout using Bridgeport’s legendary locknut. Bridgeport’s die cast zinc squeeze connectors come in flex trade sizes 3/8" through 4".
  • Certifications and Standards
    • UL-514B
  • Specifications
    • Country of Origin : United States
    • Length : 2.625 in
    • Width : 1.49 in
    • Depth : 0.75 in
    • Weight : 41.6 lbs
    • Quick and Easy : To secure flexible metal conduit, simply insert conduit into the squeeze connector and tighten down a single flex screw
    • Sizing : For securing 1-1/2" flexible metal conduit to an electrical box or enclosure through a 1-1/2" knockout
    • Zinc Body : Die cast zinc squeeze connectors have a precise fit and finish with excellent corrosion resistance when used in harsh environments
    • Safety Compliance : All Bridgeport squeeze connectors are cULus listed and RoHS compliant
    • Collection Folder : 414-DC2
    • NPD Date Electrical : 07/01/2008 00:00:00
    • MATERIAL : Zinc Die Cast
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : Used to connect flexible metal conduit or armored cable to box or enclosure.
    • UL File # : E9391
    • FINISH : Ball burnished, mirror smooth
    • Sub-Division : Electrical-E H2
    • NEMA Rating : FB-1
    • BPT Trade Size : 1-1/2"
