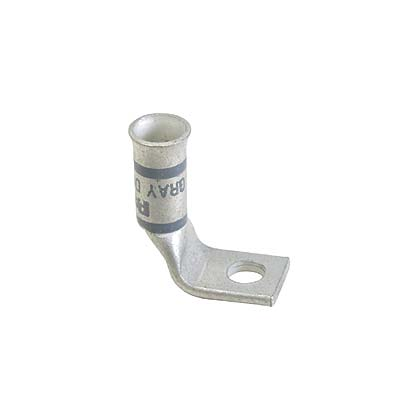

Pan-Lug™ LCAF2/0-38F-X Copper Compression Connectors - Lugs

CULUG 2/0AWG FLARED 3/8STUD 90

PANLCAF2038FX LCAF2/0-38F-X 074983877065
13.09 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pan-Lug™ LCAF2/0-38F-X Copper Compression Connectors - Lugs-1
  • Barrel Length: 1.35 in, 34.3 mm
  • Country of Origin: Mexico
  • Material: Copper
  • Overall Length: 1.77 in, 45 mm
  • Tongue Angle: 90 °
  • Tongue Thickness: 0.13 in, 3.3 mm
  • Tongue Type: Standard
  • Tongue Width: 0.96 in, 24.4 mm
  • Type: Compression Lug
One-hole, flared barrel, 2/0 AWG wire, 3/8 stud hole, 90° angle tongue.
QTY
  • Product Description
  • Features
  • Specifications
One-hole, flared barrel, 2/0 AWG wire, 3/8 stud hole, 90° angle tongue.
  • Standards and Certifications
    • Standards Met: UL Listed to 486A-486B File #E52164, CSA certified C22.2 No. 65-13, NEBS Level 3, ABS
  • Packaging Details
    • UPC : 07498387706
    • GTIN Package : 00074983877065
    • Standard Package Volume Ft3 : 0.0359
    • Standard Package Weight Pounds : 1.1000
    • Std Package Height In : 3.4
    • Std Package Height MM : 86.36
    • Std Package Length In : 5.8
    • Std Package Length MM : 147.32
    • Std Package Width In : 3.45
    • Std Package Width MM : 87.63
    • Std. Pkg. UOM : Piece
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 10
    • Standard Carton Volume Ft3 : 0.0000
    • Standard Carton Weight Pounds : 0.0000
    • Std Ctn Qty : 0
    • Min. Order UOM : Piece
    • Country of Origin 2Digit : MX
    • EAN : 00074983877065
    • REACH Status : N
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Hazardous Material Flag : N
    • Min Order Qty : 1.0000
    • Pallet Quantity : 0
    • Pallet Volume : 0.000000
    • Pallet Weight : 0.0000
    • RoHS Compliant : Compliant
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : IEI
    • Finish/Coating : Tin-Plated
    • Note : Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
    • Overall Length (mm) : 45
    • Color Code : Orange
    • Overall Length (In.) : 1.77
    • Barrel Type : Standard
    • Maximum Voltage (kV) : 35
    • Product Type : Compression Lug
    • Stud Hole Size (In.) : 3/8
    • Wire Strip Length (mm) : 36.5
    • Base Material : Copper
    • UL Temperature Rating (°C) : 90
    • Tongue Type : Standard
    • Tongue Thickness (mm) : 3.3
    • Barrel Length (mm) : 34.3
    • Tongue Width (In.) : 0.96
    • CSA Temperature Rating (°C) : 90
    • Wire Strip Length (In.) : 1-7/16
    • Panduit Die Index Number : P50
    • DLO Copper Flex Conductor Size (AWG) : 2/0
    • Tongue Angle : 90°
    • Stud Hole Size (mm) : 9.5
    • Sub Brand : Pan-Lug™
    • Tongue Thickness (In.) : 0.13
    • Barrel Length (In.) : 1.35
    • Class K Copper Flex Conductor Size (AWG) : 2/0
    • Tongue Width (mm) : 24.4
    • Class M Copper Flex Conductor Size (AWG) : 2/0
    • Barrel Entry : Flared
    • Inspection Window : Yes
    • Number of Stud Holes : 1
