Combination EMT To NM Transition Coupling 1/2", Zinc

NM 3/8" FMC TO 1/2" EMT

BRG280DC 280-DC 781747092809
4.14 / Each
http://schema.org/OutOfStock
Mayer-DDS-Combination EMT To NM Transition Coupling 1/2", Zinc-1
  • Country of Origin: China
  • Finish: Ball Burnished For Uniformed Shine
  • Length: 0.875 in
  • Material: Die-Cast Zinc
  • Warranty Length: 1 yr
  • Weight: 1.6 lb
  • Width: 0.75 in

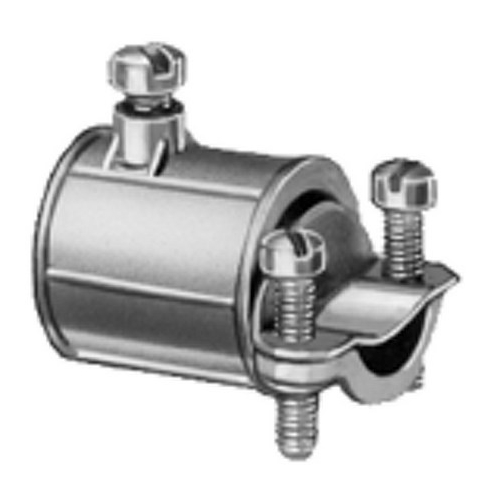

The Bridgeport 280-DC 1/2" Combination EMT To NM Transition Coupling joins EMT and up to two 14/2 to 10/3 Romex, non-metallic cables. Made of zinc, the body provides corrosion resistance for long-term use in most environments. This unit features a set screw end for EMT and a two-screw strap for NM cable. The transition coupling meets all the mechanical and electrical requirements of the National Electric Code.
QTY
  • Product Description
  • Features
  • Specifications
The Bridgeport 280-DC 1/2" Combination EMT To NM Transition Coupling joins EMT and up to two 14/2 to 10/3 Romex, non-metallic cables. Made of zinc, the body provides corrosion resistance for long-term use in most environments. This unit features a set screw end for EMT and a two-screw strap for NM cable. The transition coupling meets all the mechanical and electrical requirements of the National Electric Code.
  • Certifications and Standards
    • UL-514B
  • Specifications
    • Country of Origin : China
    • Length : 0.875 in
    • Width : 0.75 in
    • Weight : 1.6 lbs
    • Secure Electrical Connection : Users can maintain a proper electrical connection between EMT and NM cable
    • Zinc Die Cast Body : The zinc die cast body is naturally resistant to corrosion for long-term use in any environment
    • Set Screw End : The combination transition coupling features a set screw end to securely hold EMT in place
    • Two-Screw Steel Strap : The EMT transition coupling comes equipped with a two-screw steel strap that secures the NM cable
    • Collection Folder : 280-DC
    • NPD Date Electrical : 07/01/2008 00:00:00
    • MATERIAL : Zinc Die Cast
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : Used to join 1/2" EMT and up to two 14/2 and 12/2 Romex, Non-Metallic Cables. Two screw strap type for cable and a set screw type for EMT.
    • UL File # : E9391
    • FINISH : Ball burnished for uniformed shine
    • Sub-Division : Electrical-E H2
    • BPT Trade Size : 1/2"
