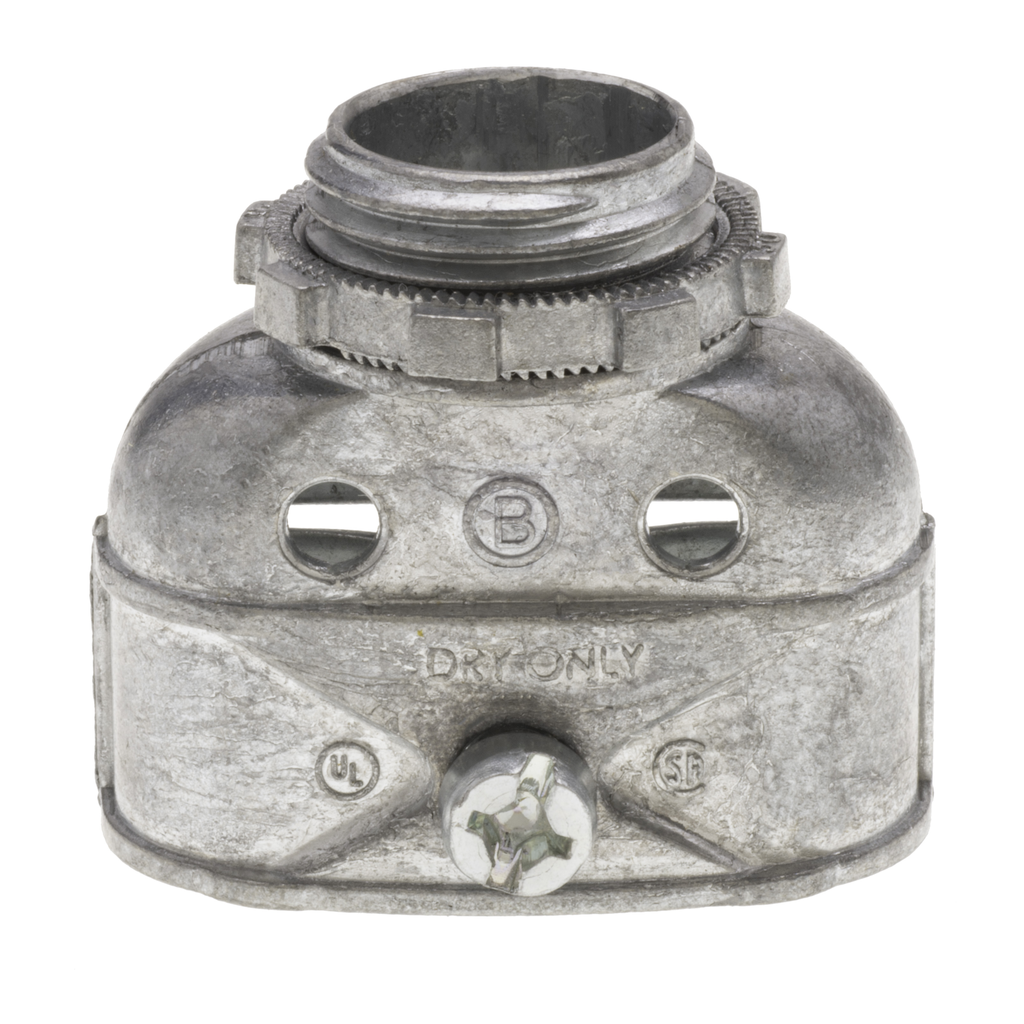

Duplex Connector 3/8", Die Cast Zinc

1/2" DUPLEX CONN.

BRG601DC2 601-DC2 781747156013
3.00 / Each
http://schema.org/OutOfStock
Mayer-DDS-Duplex Connector 3/8", Die Cast Zinc-1
  • Country of Origin: USA
  • Depth: 0.562 in
  • Finish: Ball Burnished, Mirror Smooth
  • Length: 1.687 in
  • Material: Die-Cast Zinc
  • Warranty Length: 1 yr
  • Weight: 11.9 lb
  • Width: 1.125 in
Use Bridgeport’s 601-DC2 3/8" Duplex Connector to connect two individual runs of flexible metal conduit or AC/MC/MCI-A/HCF/HCFMCI-A/MC-PCS cable to an electrical box or enclosure. Die cast zinc connectors feature a precise fit and finish with excellent corrosion resistance for use in harsh environments. The strap design allows for a secure and reliable connection. To install, simply insert FMC into the connector and tighten down a single set screw to secure the conduit in place. If only one cable is in use, this fitting is compatible with Bridgeport's A-FILPLG fill plug for filling the unused cable entry. Then, use the provided locknut to secure the connector to a box knockout. This connector is sized to join flex trade size 3/8" to 1/2" FMC or 14/2 to 10/3 (0.375" to 0.62") cable when installing into a 1/2" knockout.
QTY
  • Product Description
  • Features
  • Specifications
Use Bridgeport’s 601-DC2 3/8" Duplex Connector to connect two individual runs of flexible metal conduit or AC/MC/MCI-A/HCF/HCFMCI-A/MC-PCS cable to an electrical box or enclosure. Die cast zinc connectors feature a precise fit and finish with excellent corrosion resistance for use in harsh environments. The strap design allows for a secure and reliable connection. To install, simply insert FMC into the connector and tighten down a single set screw to secure the conduit in place. If only one cable is in use, this fitting is compatible with Bridgeport's A-FILPLG fill plug for filling the unused cable entry. Then, use the provided locknut to secure the connector to a box knockout. This connector is sized to join flex trade size 3/8" to 1/2" FMC or 14/2 to 10/3 (0.375" to 0.62") cable when installing into a 1/2" knockout.
  • Certifications and Standards
    • UL-514B
  • Specifications
    • Country of Origin : United States
    • Length : 1.6875 in
    • Width : 1.125 in
    • Depth : 0.5625 in
    • Weight : 11.9 lbs
    • Secure Connection : Strap design reliably secures two lengths of flexible metal conduit or AC/MC cable to the connector
    • Duplex Design : This connector was designed to join two lengths of conduit or cable to an electrical box or enclosure through a single knockout
    • Sizing : Use to join flex trade size 3/8" to 1/2" conduit or 14/2 to 10/3 (0.375" to 0.62") AC/MC/MCI-A/HCF/HCFMCI-A/MC-PCS cable to a 1/2" knockout
    • Zinc Body : Die cast zinc connectors have a precise fit and finish with excellent corrosion resistance when used in harsh environments
    • Professional Performance : All Bridgeport Fittings are NRTL listed and meet the stringent bonding and grounding requirements of UL 514B
    • Collection Folder : 601-DC2
    • NPD Date Electrical : 07/01/2008 00:00:00
    • MATERIAL : Zinc Die Cast
    • WARRANTY : 1 Year
    • Division : Electrical H1
    • Field Application : For use with AC/MC/MCI-A 14/2 (.375" 0 min) to 10/3 (.625" 0 max) HCF/HCFMCI-A 3/8" FMC and 14/2 to 10/3 NM Cable
    • UL File # : E20534
    • FINISH : Ball burnished, mirror smooth
    • Sub-Division : Electrical-E H2
    • NEMA Rating : FB-1
    • BPT Trade Size : 3/8"
