INS VIN FEM-250 DISC No12-10 YELLOW

INS VINYL FEM-250 DISC 12-10

TNBRC257 RC257 786210819723
0.00 / CASE
http://schema.org/OutOfStock
Mayer-DDS-INS VIN FEM-250 DISC No12-10 YELLOW-1

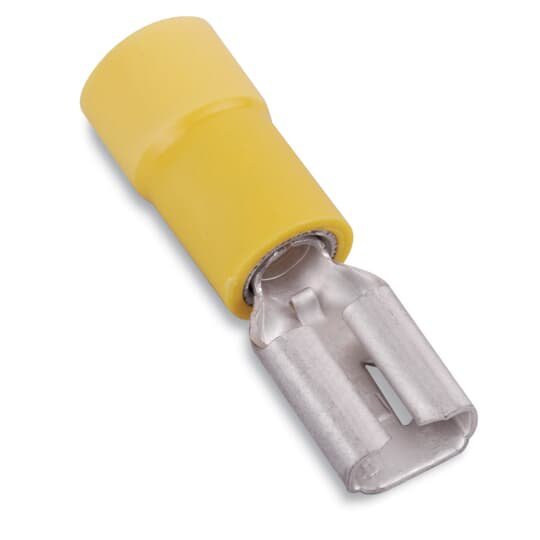

Vinyl Insulated Female Disconnect, Length 1.03 Inches, Width .29 Inches, Maximum Insulation .250, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
QTY
  • Product Description
  • Specifications
Vinyl Insulated Female Disconnect, Length 1.03 Inches, Width .29 Inches, Maximum Insulation .250, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack
  • Ordering
    • Country of Origin : United States (US)
    • Selling Unit of Measure : each
  • Additional Information
    • Brand / Label : Sta-Kon
    • Color : Yellow
    • Effective Date : 19730612
    • Insulation Material : Vinyl
    • Material : Brass
    • Product Name : ELECTRICAL TERMINAL
    • Product Type : Vinyl Insulated Female Disconnect
    • Special Functions : Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
    • Standards : UL E66716
    • Surface Finishing : Tin Plated
  • Classifications
    • WEEE Category : Product Not in WEEE Scope
    • IDEA Granular Category Code (IGCC) : 4667 >> Wire terminal disconnect
