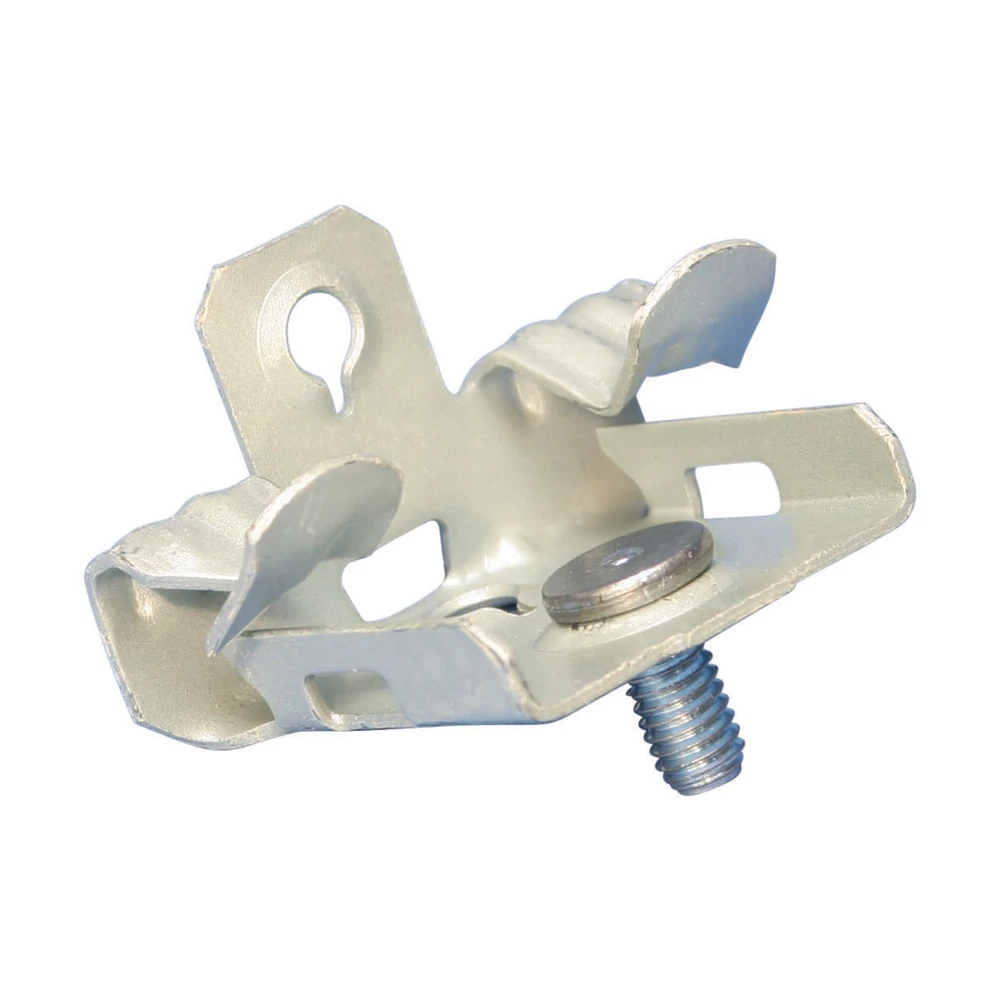

Easy to install, hammer on fastener designed to support various cable and conduit applications to structural steel beam elements. Spring steel fastener, attaches to 1/8" to 1/4" flange, with 1/4"-20 stud.

• Certifications
• cUL CAN/CSA C22.2 No. 18.4-04
• UL ANSI/UL 2239
• Features
• Can be used to support boxes, fixtures or other applications from beam flanges
• Captive threaded stud minimizes the need for additional hardware
• Assorted attachment points provided to reduce inventory
• Requires only a hammer to install

• Specifications
• Material : Spring Steel
• Finish : nVent CADDY Armour
• Flange Thickness (FT) : 3
• Rod Size (RS) : 0.25
• Screw Diameter (Sc) : 0.25
• Screw Length (L) : 9.5
• Static Load 1 (F1) : 440
• Static Load 2 (F2) : 330
• Static Load 3 (F3) : 110
• Sub Brand : CADDY
