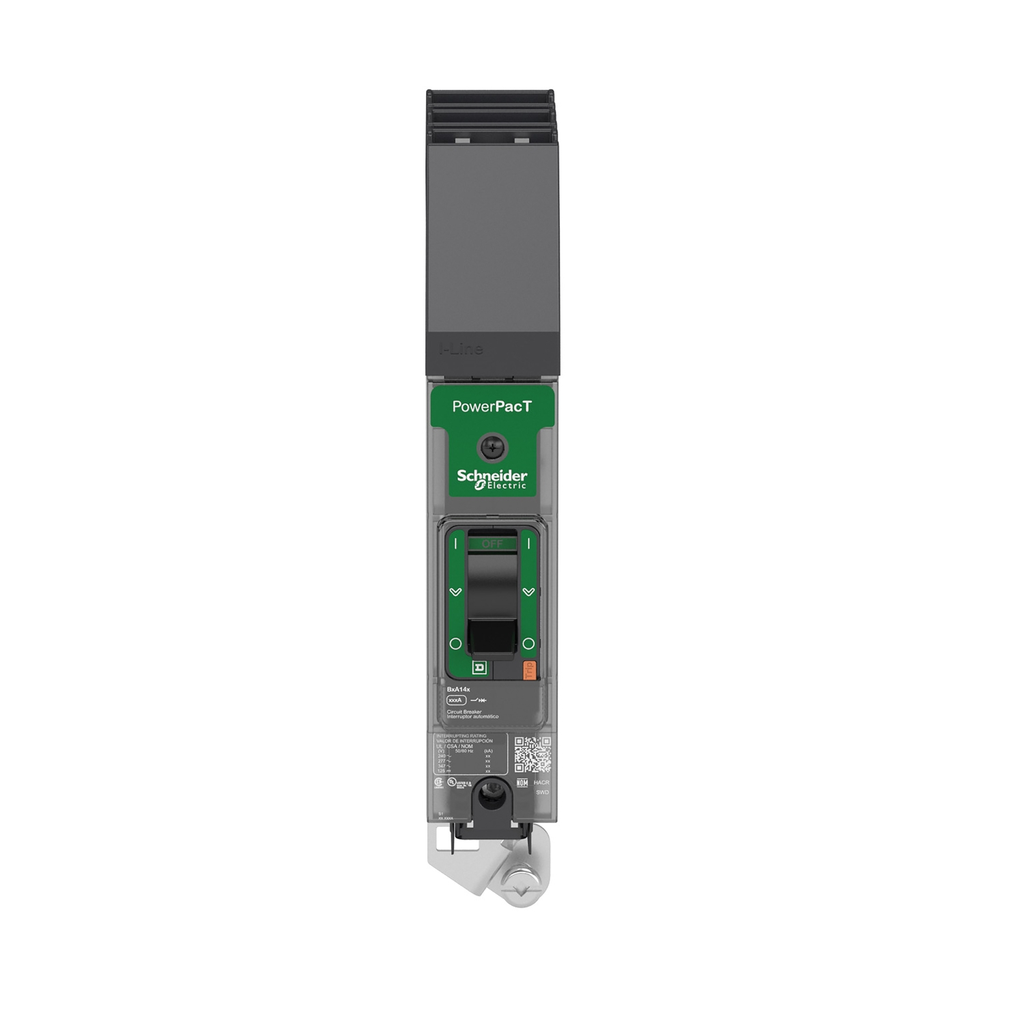

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

• Uimp Rated Impulse Withstand Voltage
• 8 kV IEC 60947-2
• Prop 65
• WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go t
• Mechanical Durability
• 20000 cycles IEC 947-1 Annex K ed 5.2
• Carbon Footprint Of The Installation Phase A5
• 0.14124669389835692
• 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.8 kg CO2 eq.
• 0.8245047228498424
• Standards
• NMX J-266
• UL 489
• GB 14048.2
• CSA C22.2 No 5
• EN/IEC 60947-2
• NEMA AB1
• EN/IEC 60947-5-1
• Ue Rated Operational Voltage
• 240 V AC 50/60 Hz UL 489
• Ui Rated Insulation Voltage
• 800 V IEC 60947-2
• Ip Degree Of Protection
• front cover IP40 IEC 60529
• Electrical Connection
• I-Line connection, line
• lugs, load
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 2.5910923753608333
• Electrical Durability
• 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
• Ics Rated Service Breaking Capacity
• 25 kA 220...240 V AC 50/60 Hz IEC 60947-2
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 61 kg CO2 eq.
• 60.770479871409236
• Persona Type Ids
• LC
• OM
• OM8
• PB
• Carbon Footprint Of The Distribution Phase A4
• 0
• 0 kg CO2 eq.
• Tightening Torque
• 3.6-4.4 N.m 2.5-6 mm² (AWG 14...AWG 10)
• 5-6.2 N.m 10-70 mm² (AWG 8...AWG 2/0)
• Operating Altitude
• < 6561.68 ft (2000 m) without derating
• 5000 m with derating
• Suitability For Isolation
• yes IEC 60947-2
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Color
• Gray RAL 7016)
• Awg Gauge
• AWG 14...AWG 2/0 aluminium/copper
• Local Signalling
• presence of auxiliary contacts flag green)
• Product Certifications
• UL
• IEC
• CCC
• EAC
• CSA
• NOM

• Physical Attributes
• Wire Stripping Length : 20 mm
• Complementary Attributes
• Line Rated Current : 40-40 A
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-09
• Device Type : LV equipment - Low voltage circuit breaker
• Serviceability : No
• Traceability : Yes
• Field Service Division : PPIBS
• Average Life Duration : 15 year(s)
• Manufacturing Carbon Footprint : 2.59109237536083
• Distribution Carbon Footprint : 0
• Installation Carbon Footprint : 0.141246693898357
• Use Carbon Footprint : 60.7704798714092
• End Of Life Carbon Footprint : 0.824504722849842
• Legacy Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : Outside of Europe
• Eoli Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1909
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Circuit Breaker Application : HACR rated
• Connection Pitch : 27 mm
• Continuous Current Rating : 80 %
• Control Type : toggle
• Device Application : distribution
• Device Short Name : BD 040
• Halogen Free Status : Halogen free product
• Mounting Mode : I-Line
• Network Frequency : 50/60 Hz
• Package Weight Lbs : 802.9 g
• Phase Connection : A
• Poles Description : 1P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : circuit breaker
• Quality Labels : CE
• Quantity Per Set : set of 1
• Range : PowerPact
• Returnability : Yes
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 64 kg CO2 eq.
• Trip Unit Technology : thermal-magnetic
• Utilisation Category : category A
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 64.32732366351827
• General Attributes
• Product Or Component Type : circuit breaker
• Environment Attributes
• Take Back : No
• Halogene Performance : Halogen free product
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 64.3273236635183
• 9 Mm Pitches : 3
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -50-85 °C
• Environmental Disclosure : ENVPEP2311047_V2
• Eu Rohs Directive : Compliant with Exemptions
• Halogen Content Performance : Halogen free product
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : Mexico
• Height : 5.39 in
• Width : 1.06 in
• Depth : 3.5 in
• Batteries & Runtime Attributes
• Removable Battery : NO
