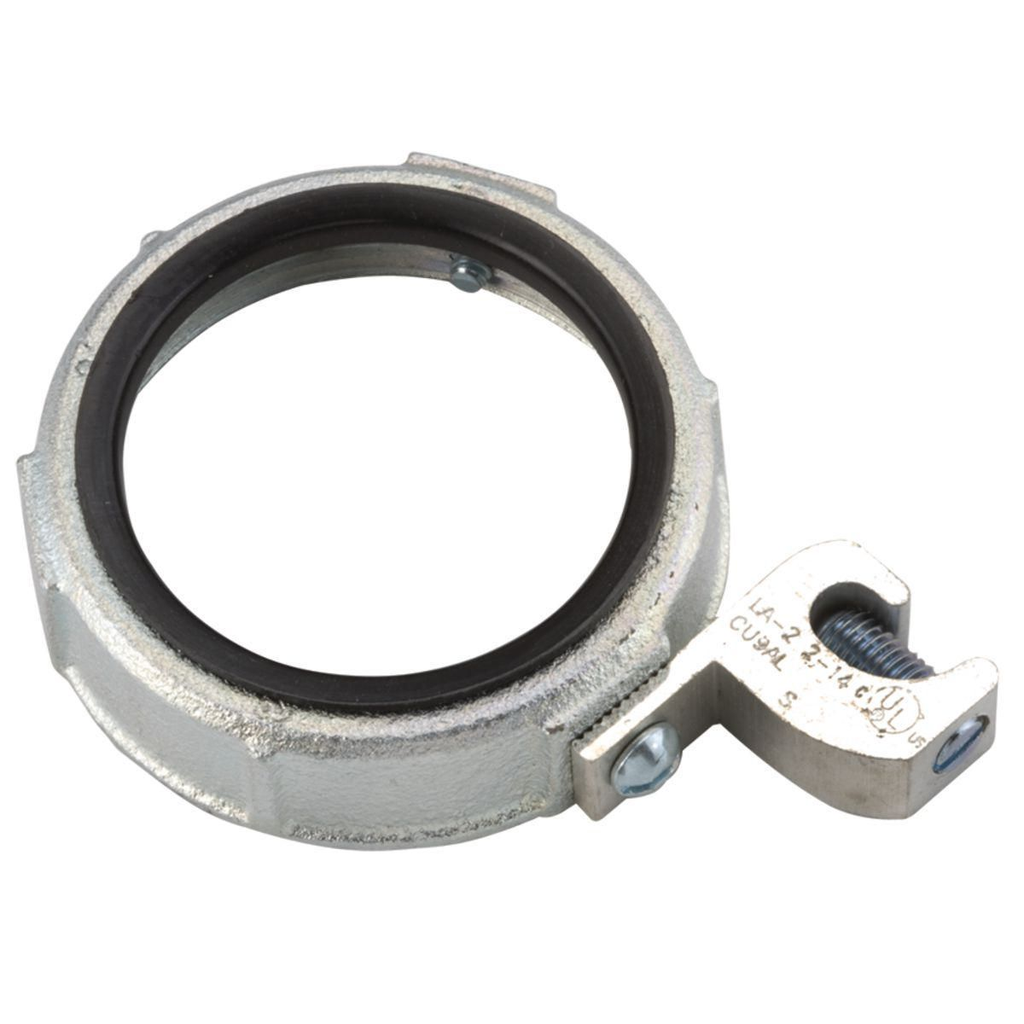

2 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated

BUSHING - 2 MALL INS GRND

RAC1218 1218 050169012185
24.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-2 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated-1
  • Country of Origin: India
  • Height: 3.094 in
  • Insulation Type: Insulated
  • Length: 1.953 in
  • Material: Iron
  • Weight: 0.355 lb
  • Width: 2.719 in
2 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated
QTY
  • Product Description
  • Features
  • Specifications
2 in. 150 Degree Rigid/IMC Grounding Bushing, Lay-in-Lug, Insulated
  • Features
    • Malleable iron construction ensures mechanical protection
    • Zinc-electroplated for added corrosion protection
    • Insuliner rated for 150° C
    • Grounding Wire Capacity - #14 Sol. - #4 Str.
    • UL and CSA Listed
    • Available in trade sizes of 1/2 in through 4 in.
  • Specifications
    • Buy American Compliant : Contact Manufacturer
    • ChannelSightWidgetId : 705
    • Size : 1.953 in x 2.719 in x 3.094 in
    • Standard : UL 514B
    • ARRA Compliant : Contact Manufacturer
    • Stock Indicator : S - Shelf Stock
    • Country of Origin : IN
    • Dimensions : 1.953 in x 2.719 in x 3.094 in
    • Each - Width : 2.719 in
    • Height : 3.094 in
    • Industry Standard(s) : UL 514B
    • Insulation Type : Insulated
    • Length : 1.953 in
    • Product Type : Commercial Fittings
    • Weight : 0.355 lb.
    • Width : 2.719 in
    • Configuration : 150 Degrees
    • Trade Size : 2 in
    • Class Code : D04
    • Description - Invoice : GRND BSHG LAYIN LUG 2 IN INSL MALL IRON
    • Freight Class Code : 06105700
    • Harmonization Code : 8547909902
    • Image Actual Or Representative : R
    • Lead Time : 21 wk
    • MSDS Flag : Yes
    • Order Multiple : 10 EA
    • Replaced Catalog Number : 10099523
    • Returnable Indicator : Yes
    • Sub Class Code : D052D0524
    • Fitting Type : Bushings
    • Grounding Wire Capacity Maximum : #4 STR
    • Grounding Wire Capacity Minimum : #14 SOL
    • Conduit Type : Rigid/IMC
    • Material : Malleable Iron
    • Base Unit of Measure : EA
    • BOX SIZE : 4.250x6.250x4.500 (in)
    • Carton - Gross Weight per Pack : 3.55 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 50169012185
    • Carton - Total Units : 10 EA
    • Each - Pack Description : Each
    • Item Package Type : Carton
    • Lowest Level UOM : Each
    • Pallet - GTIN - Package : 70050169012184
    • Pallet - Number of Sub Packs : 294
    • Pallet - Pack Description : Pallet
    • Pallet - SCC-14 Next Lower Level Sub Pack : 50050169012180
    • Pallet - Total Units : 2940 EA
    • Pallet Height : 34.125 in
    • Pallet Length : 42.000 in
    • Pallet Weight : 1088.700 lb.
    • Pallet Width : 48.000 in
  • Certifications
    • Certified Listed : UL Listed;CSA Certified
    • EU RoHS Indicator : Contact Manufacturer
