WIREMOLD

20GB206 Steel Plugmold® Multioutlet system

PLGMD 2FT SGL CRT 6" OC 2000 S

WRMS20GB206 S20GB206 786776084856
93.89 / EACH
http://schema.org/OutOfStock
Mayer-DDS-20GB206 Steel Plugmold® Multioutlet system-1
  • Amperage: 15 A
  • Applications: Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
  • Country of Origin: USA
  • Depth: 0.76 in
  • Indoor/Outdoor: Indoor
  • Length: 1.29 in
  • Material: Stainless Steel
  • Mounting Type: On Surface
  • Number of Receptacles: 4.0
  • Product Series: 2000 Series
  • Type: Plugmold
  • Voltage: 125.0 V
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 1.29 lb
  • Width: 1.29 in

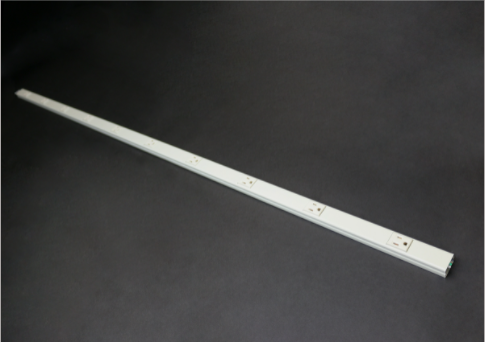

2' Plugmold Multioutlet System with 6 single outlets
QTY
  • Product Description
  • Features
  • Specifications
2' Plugmold Multioutlet System with 6 single outlets
  • Features
    • Steel Raceway. Provides superior strength for any dry location installation.
    • Compact, low profile appearance. Requires minimal space.
    • Available in Ivory ScuffCoat or gray baked enamel finish. The durable ScuffCoat provides a durable, scratch-resistant finish while the gray baked enamel compliments the décor or can be painted.
    • Full range of fittings. Provides a complete wiring solution.
    • Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
    • Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 15A receptacles installed in cover. Ideal for short runs requiring additional outlets in electrically busy areas.
    • Single, alternating circuit, and isolated ground receptacles. Meets virtually any job requirement.
    • Choice of receptacle spacing. Center spacing between receptacles of 6””, 9””, 12””, and 18””.
    • Snapicoil harnesses of prewired receptacles in 48’ and 50’. Eliminates multiple splicing, speeding up installation on long runs.
    • Snapicoil harnesses offer a choice of receptacle spacing. Center spacing between receptacles of 12””, 18”” and 30””.
    • Customization available. All products can be modified to accommodate virtually any application.
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Specifications
    • Depth : 0.76 in
    • Length : 1.29 in
    • Type : Plugmold
    • Amperage : 15.0 A
    • Weight : 1.29 lb
    • Voltage : 125.0 V
    • Width : 1.29 in
    • Country of Origin : United States
    • Is Pre-Wired : Yes
    • Indoor/Outdoor : Indoor
    • Mounting Type : On Surface
    • Wiring Method : Hard-Wired
    • Application Sector : Retail
    • Number of Receptacles : 4.0
    • Receptacle Spacing : 6.0 in
    • Product Series : 2000 Series
    • Application Sector : Education
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • NEMA Configuration Code : 5-15R
    • Application Sector : Hospitality
    • Application Sector : Entertainment
    • Installed Devices : Single Receptacle
    • Wiring Configuration : Single Circuit
    • Environmental Conditions : Dry interior locations
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover& Plugmold Series w/Snapcoil Harness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. Plugmold Wired Sections: Meets Article 380 of NEC. Meets Section 12-3032 of CEC.
    • Special Features : Steel Raceway, Compact low profile design, Full range of fittings, one and two - gang device boxes.
    • Color : Stainless Steel
    • Material : Stainless Steel
    • Product Line : Wiremold
