WIREMOLD

AL20GB618TR Aluminum Plugmold® Multioutlet Strip

TR PLGMD 6FT. SGL CRT 18IN. OC

WRMAL20GB618TR AL20GB618TR 786776195552
166.46 / EA
http://schema.org/OutOfStock

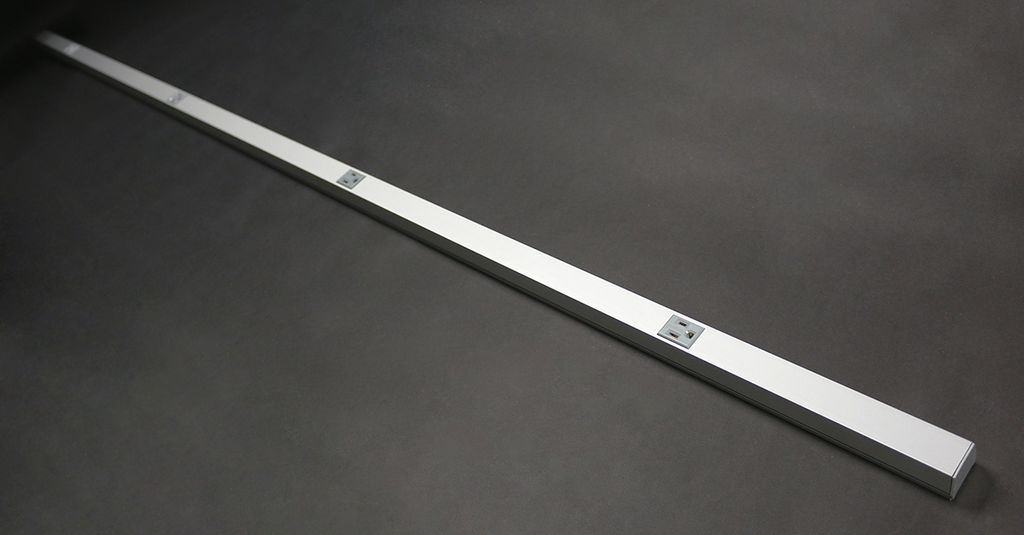

Mayer-DDS-AL20GB618TR Aluminum Plugmold® Multioutlet Strip-1
  • Amperage: 15 A
  • Applications: Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
  • Country of Origin: USA
  • Depth: 1.13 in
  • Indoor/Outdoor: Indoor
  • Length: 1.42 in
  • Material: Aluminum
  • Mounting Type: On Surface
  • Number of Receptacles: 4.0
  • Outlet Type: Tamper-Resistant
  • Product Series: AL2000 Series
  • Type: Plugmold
  • Voltage: 125.0 V
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Width: 1.42 in
6' Aluminum Plugmold Multioutlet System comprised of four 18 inches apart, GB
QTY
  • Product Description
  • Features
  • Specifications
6' Aluminum Plugmold Multioutlet System comprised of four 18 inches apart, GB
  • Features
    • Attractive, tapered snap-together aluminum extrusions. Blend with any décor. Enables quick and easy circuit modifications or additions.
    • Satin anodized finish. Provides aesthetic upscale appearance and corrosion resistance.
    • Full range of fittings. Provides a complete wiring solution.
    • Factory wired in 3’, 5’, and 6’ lengths with flush 15A, 120V specification grade receptacles. Ideal for locations requiring a high concentration of devices.
    • Choice of standard 6'', 12'' and 18'' or custom receptacle spacings. Provides flexibility of outlet locations.
    • Choice of single circuit, alternating circuit or isolated ground receptacles. Meets any job requirement.
    • Customization available. All products can be modified to accommodate virtually any application.
    • This product meets the material restrictions of RoHS.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 1.13 in
    • Length : 1.42 in
    • Color : Aluminum
    • Width : 1.42 in
    • Material : Aluminum
    • Country of Origin : United States
    • Product Line : Wiremold
    • Type : Plugmold
    • Amperage : 15.0 A
    • Voltage : 125.0 V
    • Is Pre-Wired : Yes
    • Indoor/Outdoor : Indoor
    • Mounting Type : On Surface
    • Wiring Method : Hard-Wired
    • Application Sector : Retail
    • Number of Receptacles : 4.0
    • Receptacle Spacing : 18.0 in
    • Application Sector : Education
    • Outlet Type : Tamper-Resistant
    • Product Series : AL2000 Series
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • NEMA Configuration Code : 5-15R
    • Application Sector : Hospitality
    • Application Sector : Entertainment
    • Installed Devices : Single Receptacle
    • Wiring Configuration : Single Circuit
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
