WIREMOLD

5' Alternating USB Aluminum Plugmold® Multioutlet System

USB PLUGMOLD 5FT AL 3 OUTLETS

WRMAL20GB509TRUSBA AL20GB509TRUSBA 786776184426
324.60 / EACH
http://schema.org/OutOfStock
Mayer-DDS-5' Alternating USB Aluminum Plugmold® Multioutlet System-1
  • Amperage: 15 A
  • Applications: Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
  • Country of Origin: USA
  • Depth: 1.13 in
  • Indoor/Outdoor: Indoor
  • Length: 1.42 in
  • Material: Aluminum
  • Mounting Type: On Surface
  • Number of Receptacles: 3.0
  • Outlet Type: Tamper-Resistant
  • Product Series: AL2000 Series
  • Type: Plugmold
  • Voltage: 125.0 V
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 4.83 lb
  • Width: 1.42 in

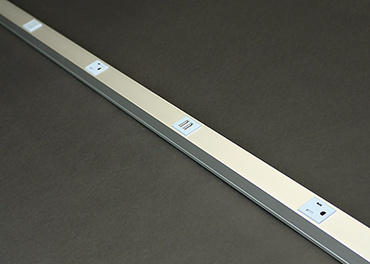

Available in 5' (1.5m) length with 9'' spacing. 15A tamper-resistant receptacles. 3-wire, #12 USB Plugmold THHN (1 hot, 1 neutral and insulated ground conductor). .040'' (1.0 mm) aluminum housing. Packed two per carton. Each unit supplied with one (1) Coupling and two (2) Blank End Fittings. USB is 2.4 Amps (shared between two ports) 5VDC. Please note the charging load on one module will not affect the charging performance of the other USB modules in the product.
QTY
  • Product Description
  • Features
  • Specifications
Available in 5' (1.5m) length with 9'' spacing. 15A tamper-resistant receptacles. 3-wire, #12 USB Plugmold THHN (1 hot, 1 neutral and insulated ground conductor). .040'' (1.0 mm) aluminum housing. Packed two per carton. Each unit supplied with one (1) Coupling and two (2) Blank End Fittings. USB is 2.4 Amps (shared between two ports) 5VDC. Please note the charging load on one module will not affect the charging performance of the other USB modules in the product.
  • Certifications
    • RoHS Compliant
    • USMCA Compliant
    • cULus Listed
  • Features
    • USB charging. Dual-port charging modules share 2.4 amps of charging capacity and can charge multiple phones, tablets or other mobile devices at the same time.
    • Compact design. Low-profile design installs in tight locations while offering multiple power and USB charging connections. Receptacle spacing accommodates bulky AC adapters.
    • Tamper-resistant receptacles. Prevents the insertion of foreign objects into receptacles reducing the risk of shocks or electrocution. Meets 2014 NEC section 406 requirements.
  • Specifications
    • Depth : 1.13 in
    • Type : Plugmold
    • Length : 1.42 in
    • Weight : 4.83 lb
    • Color : Silver
    • Material : Aluminum
    • Width : 1.42 in
    • Country of Origin : United States
    • Product Line : Wiremold
    • Amperage : 15.0 A
    • Voltage : 125.0 V
    • Is Pre-Wired : Yes
    • Number of USBs : 3.0
    • USB Amperage : 2.4 A
    • USB Wattage : 15.0 W
    • Indoor/Outdoor : Indoor
    • Features : USB-A Charging
    • Mounting Type : On Surface
    • Wiring Method : Hard-Wired
    • Application Sector : Retail
    • Number of Receptacles : 3.0
    • Receptacle Spacing : 9.0 in
    • Application Sector : Education
    • Outlet Type : Tamper-Resistant
    • Product Series : AL2000 Series
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Installed Devices : USB-A Ports
    • NEMA Configuration Code : 5-15R
    • Application Sector : Hospitality
    • Application Sector : Entertainment
    • Installed Devices : Single Receptacle
    • Wiring Configuration : Single Circuit
    • Environmental Conditions : Dry interior locations
    • Standard : cULus Listed Multioutlet Assembly: File E15191 Guide PVGT
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Special Features : Provides USB charging for up to 6 mobile devices as well as 3 power devices
