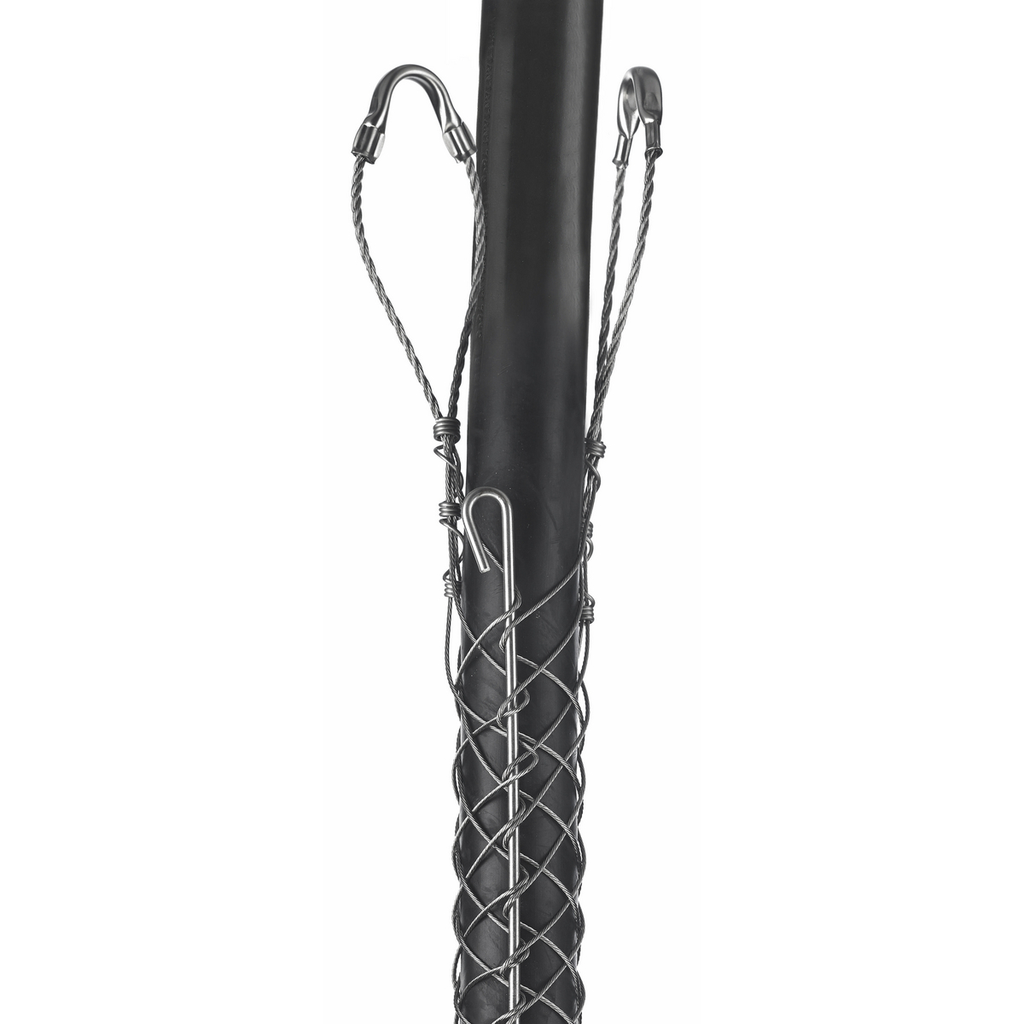

Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 2.50-2.99"

DBL EYE, SUP GRIP, 2.5-3.0", S

HUB02403010 02403010 783585498508
0.00 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 2.50-2.99"-1
  • Construction: Woven
  • Material: Stainless Steel
  • Width: 2.3 in, 2.300 in
Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 2.50-2.99"
QTY
  • Product Description
  • Features
  • Specifications
Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 2.50-2.99"
  • Features
    • Double eye
    • Strand equalizers position wires for equal loading throughout grip length
    • Eye assemblies provide eye reinforcement at support hardware
    • Split Mesh- Rod Closing
  • Specifications
    • Approx Breaking Strength : 8,950 lb.
    • Cable Diameter Range : 2.5 in-2.99 in
    • Country of Origin : US
    • Width : 2.300 in
    • Each - Width : 2.300 in
    • Industry Standard(s) : CSA Certified
    • Performance : Mechanical - Approximate Breaking Strength - 8,950 (39,812);Mechanical - Working Load - 895 (3981.2) Lbs. (N)
    • Application : Double Eye
    • Cable Size : 2.50"-2.99" (6.35-7.59)
    • Special Features : Split Mesh- Rod Closing
    • Standard : CSA Certified
    • Type : Double Eye
    • Style : Split Mesh, Rod Closing
    • Class Code : A52
    • Description - Invoice : DBL EYE, SUP GRIP, 2.5-3.0"; SS, ROD
    • Freight Class Code : 06168002
    • Harmonization Code : 7326200090
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Sub Class Code : A52A480
    • Material - Mounting Hardware : Screw Hook or Beam Clamp
    • Construction : Woven
    • Material : Stainless Steel
    • Series : Standard Duty
    • Base Unit of Measure : EA
    • BOX SIZE : 4.000x31.000x6.000 (in)
    • Carton - Gross Weight per Pack : 9.000 lb.
    • Carton - Number of Sub Packs : 10
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 783585498508
    • Carton - Total Units : 10 EA
    • Each - Pack Description : Each
    • Lowest Level UOM : Each
  • Certifications
    • EU RoHS Indicator : Yes
