WIREMOLD

3000 Device Bracket Fitting

BRACKET - 4 1/2 DEVICE

WRMG3007C G3007C 786776085358
8.63 / EACH
http://schema.org/OutOfStock

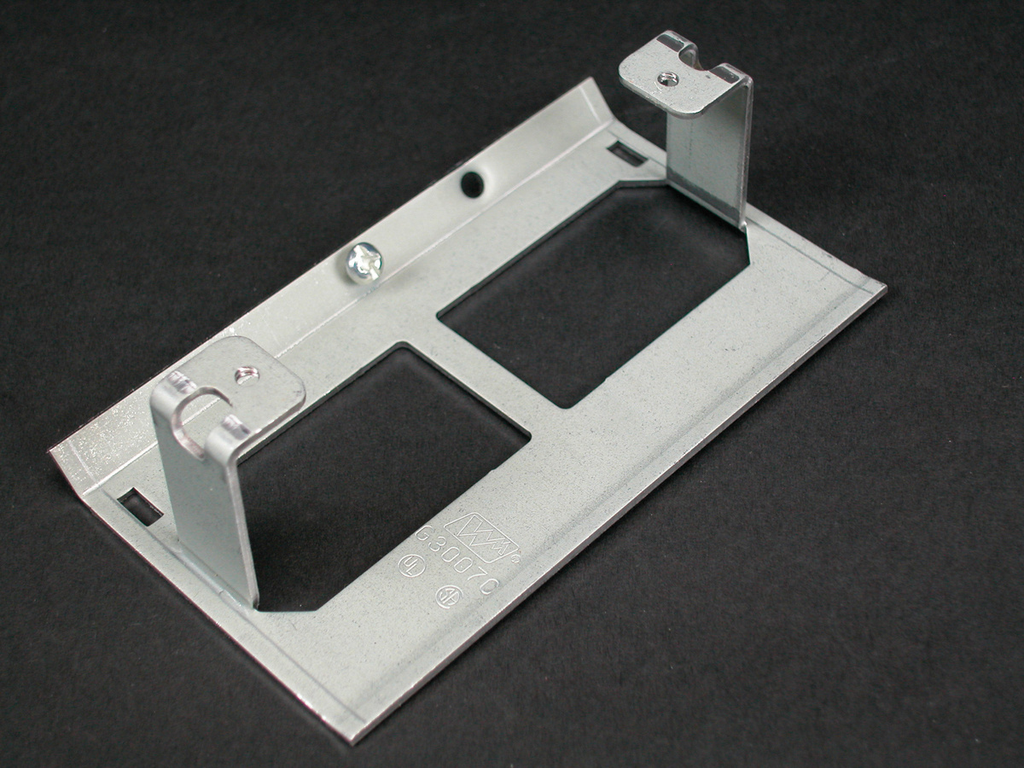

Mayer-DDS-3000 Device Bracket Fitting-1
  • Applications: Commercial
  • Country of Origin: USA
  • Indoor/Outdoor: Indoor
  • Length: 4.5 in
  • Material: Steel
  • Product Series: 3000 Series
  • Type: Bracket, Fitting
  • Voltage: 600.0 V
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 0.22 lb
The Wiremold 3000 Series Steel Raceway provides wiring capacities for small to medium size installations. Power or data/communication devices can be wired into the raceway for a flush appearance satisfying both aesthetic and functional requirements. The 3000 Series Steel Raceway is ideally suited for wiring applications in frequently changing environments such as labs, hospitals and other industrial applications.
QTY
  • Product Description
  • Features
  • Specifications
The Wiremold 3000 Series Steel Raceway provides wiring capacities for small to medium size installations. Power or data/communication devices can be wired into the raceway for a flush appearance satisfying both aesthetic and functional requirements. The 3000 Series Steel Raceway is ideally suited for wiring applications in frequently changing environments such as labs, hospitals and other industrial applications.
  • Features
    • Mounts standard after-market devices into 3000 Series Raceway. Accepts single-gang devices with 3.281'' (95mm) mounting centers. Use with commercially available flush plates (not furnished).
  • Certifications
    • UL Listed
    • RoHS Compliant
  • Specifications
    • Length : 4.5 in
    • Standard : cULus Listed Raceway:File E4376 Guide RJBT. Fittings: File E41751 Guide RJPR. Base & Blank Cover: Meets Article 386 of NEC. Meets Section 12-600 of CEC.
    • Weight : 0.22 lb
    • Type : Bracket
    • Country of Origin : United States
    • Type : Fitting
    • Is Pre-Wired : No
    • Voltage : 600.0 V
    • Indoor/Outdoor : Indoor
    • Product Series : 3000 Series
    • Application Sector : Commercial
    • Installation Location : On Wall
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Color : Gray
    • Material : Steel
    • Product Line : Wiremold
    • Special Features : Mounts easily on walls, modular furniture, under raisedfloors, or over ceiling, speeds installation: providesflexibility to bring wiring to points of use. Removable cover, provides access to wiring.
