WIREMOLD

24S7224GBA99IV Steel Plugmold® Multioutlet Strip

PLGMD 20A 72IN. 24IN. OC DUAL

WRM24S7224GBA99IV 24S7224GBA99IV 786776165135
125.97 / EACH
http://schema.org/OutOfStock

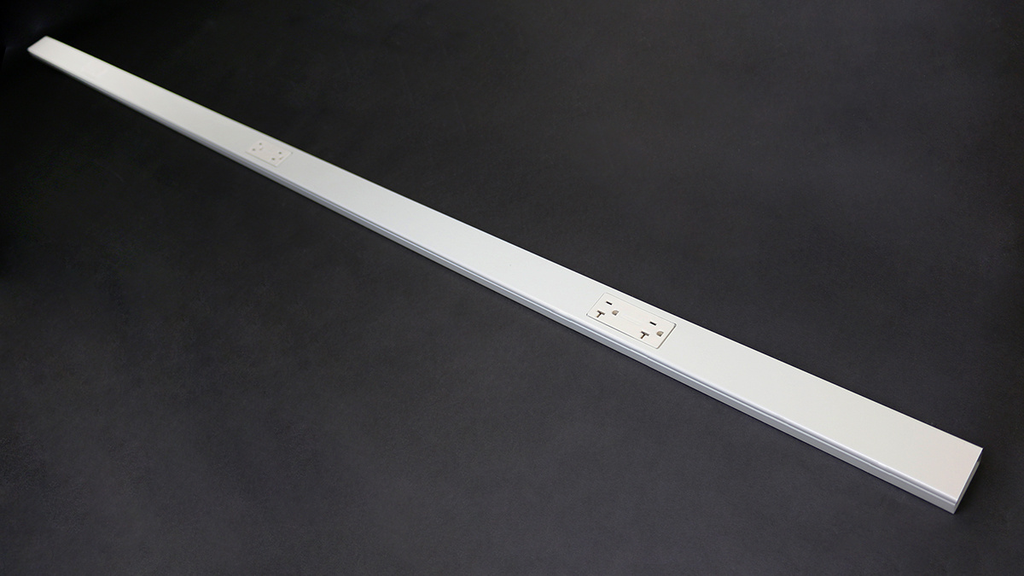

Mayer-DDS-24S7224GBA99IV Steel Plugmold® Multioutlet Strip-1
  • Amperage: 20 A
  • Applications: Commercial, Education, Entertainment, Healthcare, Hospitality, Retail
  • Country of Origin: USA
  • Indoor/Outdoor: Indoor
  • Material: Steel
  • Mounting Type: On Surface
  • Number of Receptacles: 3.0
  • Product Series: 2400 Series
  • Type: Plugmold
  • Voltage: 125.0 V
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 5.0 lb
6' Steel Plugmold Multioutlet Strip with 3 duplex receptacles spaced at 24'', GBA
QTY
  • Product Description
  • Features
  • Specifications
6' Steel Plugmold Multioutlet Strip with 3 duplex receptacles spaced at 24'', GBA
  • Features
    • Steel Raceway. Provides superior strength for any dry location installation with greater wire capacity than V2000.
    • Ivory ScuffCoat finish. Durable scratch resistant finish.
    • Removable cover. Allows easy access to wiring for changes or additions.
    • Full range of fittings. Provides a complete wiring solution.
    • Single-and-dual-gang boxes. Wire devices into the raceway system or protect a Plugmold® strip with a surge or GFCI device.
    • Factory wired Plugmold® sections available in 3’, 5’, and 6’ lengths with 20A, 120V receptacles. Ideal for short runs requiring additional outlets in electrically busy areas.
    • Single or alternating circuit. Meets virtually any circuit requirement.
    • Choice of receptacle spacing. Center spacing between receptacles of 6””, 12”” and 18””.
    • Simplex receptacle. More spacing options available.
    • Duplex receptacle. Aesthetically pleasing, functional 20A duplex for the 24S (2400) Series.
    • Customization available. All products can be modified to accommodate virtually any application.
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Specifications
    • Weight : 5.0 lb
    • Country of Origin : United States
    • Special Features : Steel Raceway, Ivory ScuffCoat finish, Removable cover, Full range of fittings, Single-and-dual-gang boxes, Factory wired in different lengths, Single or alternating circuit, Choice of receptacle spacing, simplex or duplex, customization available
    • Type : Plugmold
    • Amperage : 20.0 A
    • Voltage : 125.0 V
    • Is Pre-Wired : Yes
    • Indoor/Outdoor : Indoor
    • Mounting Type : On Surface
    • Wiring Method : Hard-Wired
    • Application Sector : Retail
    • Number of Receptacles : 3.0
    • Product Series : 2400 Series
    • Receptacle Spacing : 24.0 in
    • Application Sector : Education
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • NEMA Configuration Code : 5-20R
    • Application Sector : Hospitality
    • Application Sector : Entertainment
    • Wiring Configuration : Dual Circuit
    • Color : Ivory
    • Material : Steel
    • Product Line : Wiremold
    • Installed Devices : Duplex Receptacle
    • Environmental Conditions : Dry interior locations
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : cULus Listed Base & Blank Cover: File E4376 Guide RJBT. Multioutlet Assemblies: File E15191 Guide PVGT. Fittings: File E41751 Guide RJPR. Base & Blank Cover& Plugmold Series w/Snapcoil Harness: Meets Article 386 of NEC. Meets Section 12-3032 of CEC. Plugmold Wired Sections: Meets Article 380 of NEC. Meets Section 12-3032 of CEC.
