WIREMOLD

2300 Internal Elbow Fitting

WM 2317-WH NM INT. ELBOW 2300

WRM2317WH 2317-WH 786776523454
3.64 / EACH
http://schema.org/OutOfStock
Mayer-DDS-2300 Internal Elbow Fitting-1
  • Applications: Commercial, Residential
  • Country of Origin: USA
  • Indoor/Outdoor: Indoor
  • Length: 2.5 in
  • Material: Plastic
  • Product Series: 2300 Series
  • Type: Fitting
  • Voltage: 600.0 V
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 0.08 lb
  • Width: 2.5 in
400, 800, 2300 and 2300BACD Series™ Raceway, are a family of low-profile raceways that are designed for communication or power applications. 400, 800 and 2300 Raceway offer a single channel for either communication or power. And when power and low voltage services are both needed in a single raceway, the divided 2300BACD Raceway with it’s low-profile design, is an easy-to-install option. 400,800,2300 and 2300BACD Raceways are an ideal solution for use in classrooms, offices, hospitality applications, or anywhere a small, secure, low profile raceway is needed.
QTY
  • Product Description
  • Features
  • Specifications
400, 800, 2300 and 2300BACD Series™ Raceway, are a family of low-profile raceways that are designed for communication or power applications. 400, 800 and 2300 Raceway offer a single channel for either communication or power. And when power and low voltage services are both needed in a single raceway, the divided 2300BACD Raceway with it’s low-profile design, is an easy-to-install option. 400,800,2300 and 2300BACD Raceways are an ideal solution for use in classrooms, offices, hospitality applications, or anywhere a small, secure, low profile raceway is needed.
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Features

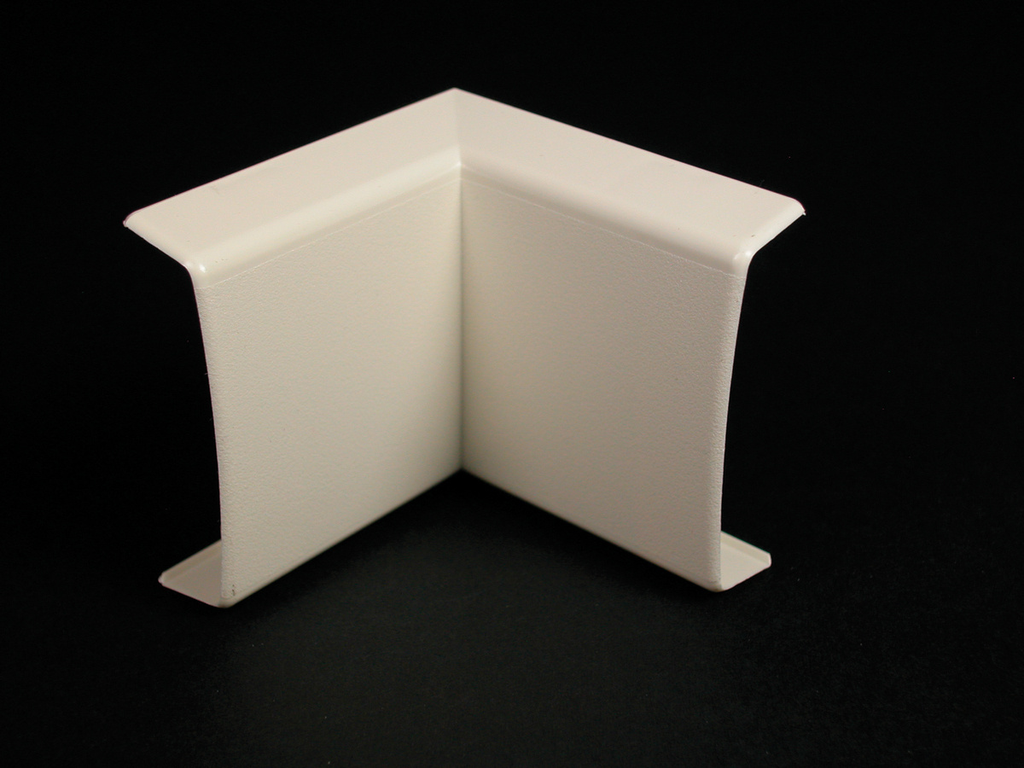

    • 2300 Series Internal Elbow. For right angle turns around internal corners.
  • Specifications
    • Length : 2.5 in
    • Weight : 0.08 lb
    • Special Features : Accommodates communication and/or power wiring. Durable, textured PVC ivory or white finish. Single- and dual-compartment low profile design. Adhesive backing for low voltage (under 50V)applications.
    • Width : 2.5 in
    • Standard : cULus Listed Raceway: File E90378 Guide RJTX. Complies with flammability rewuirements of UL-5A. Fittings: File E90377 Guide RJYT. Meets Article 388 of NEC. UL Listed for up to 600V. Meets Section 12-2600 of CEC.
    • Country of Origin : United States
    • Type : Fitting
    • Is Pre-Wired : No
    • Voltage : 600.0 V
    • Indoor/Outdoor : Indoor
    • Product Series : 2300 Series
    • Application Sector : Commercial
    • Installation Location : On Wall
    • Application Sector : Residential
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Color : White
    • Material : Plastic
    • Product Line : Wiremold
