HUBBELL WIRING DEVICES

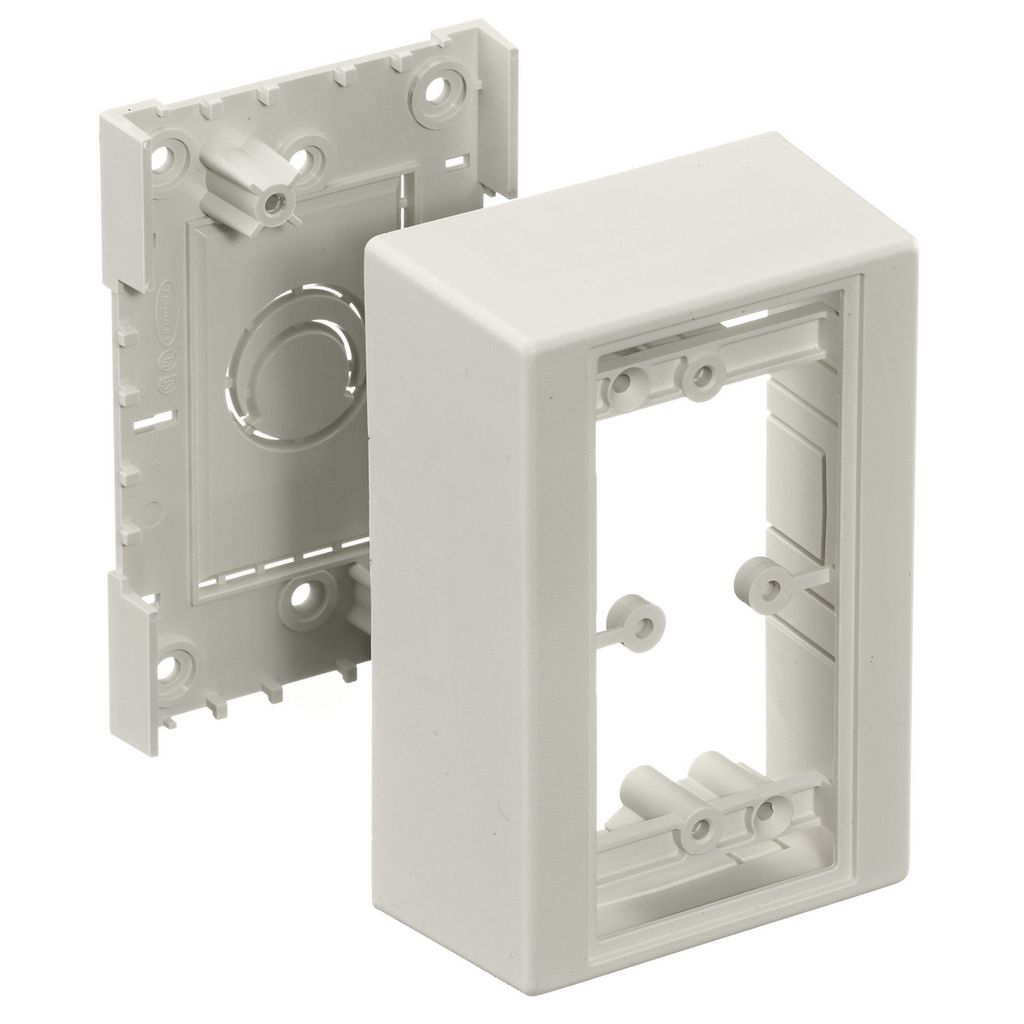

Non-Metallic Raceway, PolyTrak Series, PolyTrak Box, 1-Gang, 1.78" Depth Standard

PDB12S PLASTIC RACEWAY 1G BOX

HUBPDB12S PDB12S 783585090405
12.62 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Non-Metallic Raceway, PolyTrak Series, PolyTrak Box, 1-Gang, 1.78" Depth Standard-1
  • Number of Gangs: 1
  • Width: 5.510 in
Non-Metallic Raceway, PolyTrak Series, PolyTrak Box, 1-Gang, 1.78" Depth Standard
QTY
  • Product Description
  • Features
  • Specifications
Non-Metallic Raceway, PolyTrak Series, PolyTrak Box, 1-Gang, 1.78" Depth Standard
  • Features
    • Reduces inventory requirements
    • Eliminates need to order three separate boxes
    • Boxes available in low, standard and deep profiles
  • Specifications
    • Color : Office White
    • Country of Origin : PR
    • Width : 5.510 in
    • Each - Width : 5.510 in
    • Industry Standard(s) : CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
    • Performance : Environmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
    • Standard : CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
    • Type : Boxes
    • Style : Standard
    • Description - Invoice : POLYTRAK BOX, 1-G, 1.78"D STD
    • Freight Class Code : 06168002
    • Harmonization Code : 3925900000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : JPB650S;MT678SB
    • Number of Gang(s) : 1-Gang
    • Base Unit of Measure : EA
    • BOX SIZE : 5.400x12.000x6.000 (in)
    • Carton - Gross Weight per Pack : 1.700 lb.
    • Carton - Number of Sub Packs : 5
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00783585090405
    • Carton - Total Units : 5 EA
    • Case Weight : 2.342 lb.
    • Pallet - GTIN - Package : 70783585090404
    • Pallet Height : 43.200 in
    • Pallet Length : 48.000 in
    • Pallet Weight : 384.800 lb.
    • Pallet Width : 40.000 in
  • Certifications
    • EU RoHS Indicator : Contact Manufacturer
