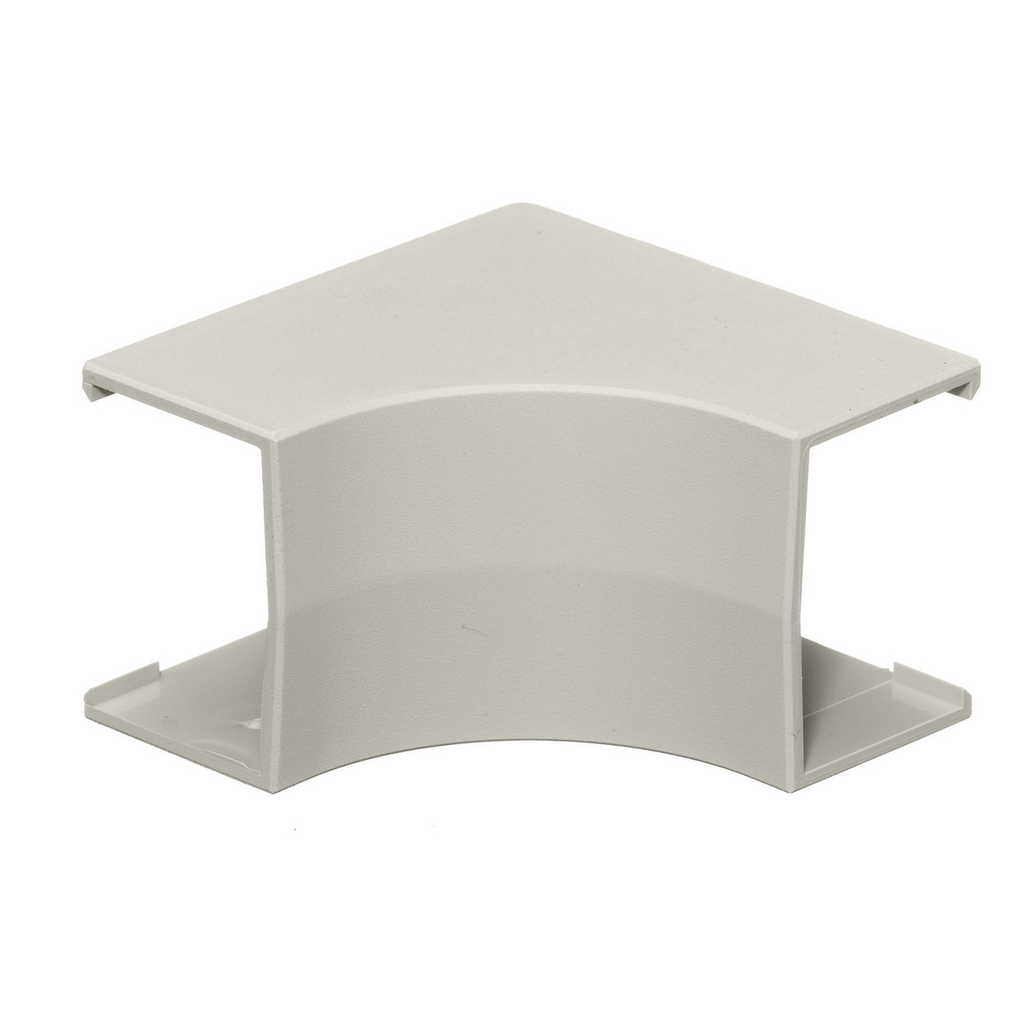

Non-Metallic Raceway, Latching LANTRAK, Internal Elbow

PL1IE PLASTIC RACEWAY INTERNAL

HUBPL1IE PL1IE 783585090313
4.52 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Non-Metallic Raceway, Latching LANTRAK, Internal Elbow-1
  • Material Type: Non-Metallic
  • Width: 1.25 in, 1.250 in
Non-Metallic Raceway, Latching LANTRAK, Internal Elbow
QTY
  • Product Description
  • Features
  • Specifications
Non-Metallic Raceway, Latching LANTRAK, Internal Elbow
  • Features
    • Full capacity 1¼ in. bend radius internal elbow
  • Specifications
    • Color : Office White
    • Country of Origin : PR
    • Width : 1.250 in
    • Each - Width : 1.250 in
    • Industry Standard(s) : CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
    • Performance : Environmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
    • Standard : CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
    • Type : Elbows
    • Style : Internal
    • Description - Invoice : LANTRAK, INTERNAL ELBOW
    • Freight Class Code : 06168002
    • Harmonization Code : 3925900000
    • Image Actual Or Representative : A
    • MSDS Flag : No
    • Replaced Catalog Number : JPT725;MT7IEC
    • Material : Non-Metallic
    • Base Unit of Measure : EA
    • BOX SIZE : 0.880x1.800x1.200 (in)
    • Carton - Gross Weight per Pack : 0.100 lb.
    • Carton - Number of Sub Packs : 2
    • Carton - Pack Description : Carton
    • Carton - SCC-14 Next Lower Level Sub Pack : 00783585090313
    • Carton - Total Units : 2 EA
    • Case - Total Units : 10 EA
    • Case Weight : 1.650 lb.
  • Certifications
    • EU RoHS Indicator : Contact Manufacturer
