Surface Raceway, LD5 Single Channel, 8 ft, Low Voltage, White

LD5 DUCT LATCH 8FT WH

PANLD5WH8-A LD5WH8-A 074983729869
4.66 / EA
http://schema.org/OutOfStock
Mayer-DDS-Surface Raceway, LD5 Single Channel, 8 ft, Low Voltage, White-1
  • Country of Origin: USA
  • Height: 0.58 in, 14.8 mm
  • Material: PVC
  • Mounting Type: Adhesive
  • Overall Length: 2.44 m, 8 ft
  • Type: Low Voltage Channel
  • Width: 1.01 in, 25.8 mm

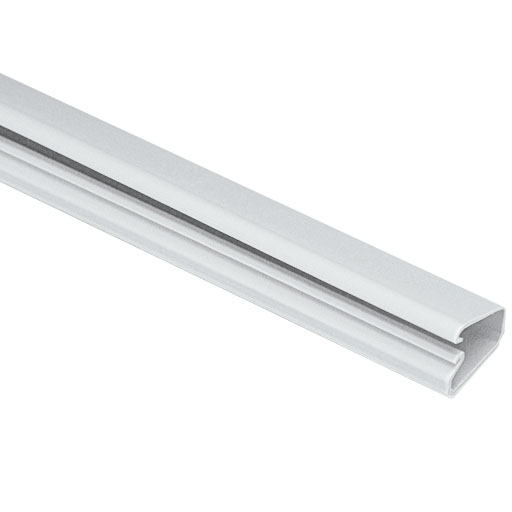

The LD5 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 1.01 inches wide by 0.58 inches deep. It meets TIA/EIA, used in applications up to 50 V. It is constructed of rigid PVC and is White.
QTY
  • Product Description
  • Features
  • Specifications
The LD5 Surface Raceway channel is a one-piece latching channel with integrated cover and is designed to route, protect, and conceal data, voice, and video cabling. It features a factory-applied adhesive backing for fast mounting. It is 8 feet in length and is 1.01 inches wide by 0.58 inches deep. It meets TIA/EIA, used in applications up to 50 V. It is constructed of rigid PVC and is White.
  • Prop 65
    • No
  • Standards and Certifications
    • Standards Met: UL94V-0, FT4, Meets TIA/EIA Standards
  • Specifications
    • Any Reason Not to Sell : N
    • Product Segment : EDI-ENT
    • Product Type : Low Voltage Channel
    • Material : PVC
    • Overall Height (In.) : 0.58
    • For Use With : LD Raceway
    • Internal Area (in²) : 0.38
    • Overall Width (In.) : 1.01
    • Color : White
    • Fitting Type : Channel
    • Overall Height (mm) : 14.8
    • Raceway Type : Low Voltage
    • Sub Brand : Pan-Way®
    • Mount Method : Adhesive
    • Application : Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment
    • Overall Width (mm) : 25.8
    • Material Properties : Rigid
    • Overall Length (m) : 2.44
    • Overall Length (ft.) : 8
  • Packaging Details
    • UPC : 07498372986
    • GTIN Package : 00074983729869
    • Standard Package Volume Ft3 : 0.0439
    • Standard Package Weight Pounds : 0.6800
    • Std Package Height In : .3
    • Std Package Height MM : 7.62
    • Std Package Length In : 90
    • Std Package Length MM : 2286
    • Std Package Width In : 3
    • Std Package Width MM : 76.2
    • Std. Pkg. UOM : Foot
    • UOM EA PK : PK
    • Std. Pkg. Qty. : 8
    • GTIN Carton : 50074983729864
    • Standard Carton Volume Ft3 : 0.8784
    • Standard Carton Weight Pounds : 13.6000
    • Std Carton Height In : 2.8
    • Std Carton Height MM : 71.12
    • Std Carton Length In : 96.8
    • Std Carton Length MM : 2458.72
    • Std Carton Width In : 5.6
    • Std Carton Width MM : 142.24
    • Std Ctn Qty : 160
    • Min. Order UOM : Foot
    • Country of Origin 2Digit : US
    • EAN : 00074983729869
    • REACH Status : N
    • California Pro65 Cancer : No
    • ARRA Compliant : Y
    • Mercury Content Indicator : N
    • Lead Content Indicator : N
    • Restricted Use of Hazardous Substances : N
    • Hazardous Material Flag : N
    • Min Order Qty : 160.0000
    • Pallet Quantity : 13,440
    • Pallet Volume : 73.783111
    • Pallet Weight : 1,142.4000
    • RoHS Compliant : Compliant
