SB-3

BOX 3G DEEP NEW WORK SLIDE SCR

ALISB3 SB-3 085339945024
10.60 / Each
http://schema.org/OutOfStock
Mayer-DDS-SB-3-1
  • Box Type: Receptacle, Switch, Wall
  • Carton Quantity: 6
  • Country of Origin: USA
  • Depth: 3 9/16 in
  • Height: 3 3/4 in
  • Installation: New Work, Old Work
  • Material: Polycarbonate
  • Number of Gangs: 3
  • Volume: 61 cu in
  • Width: 5 13/16 in

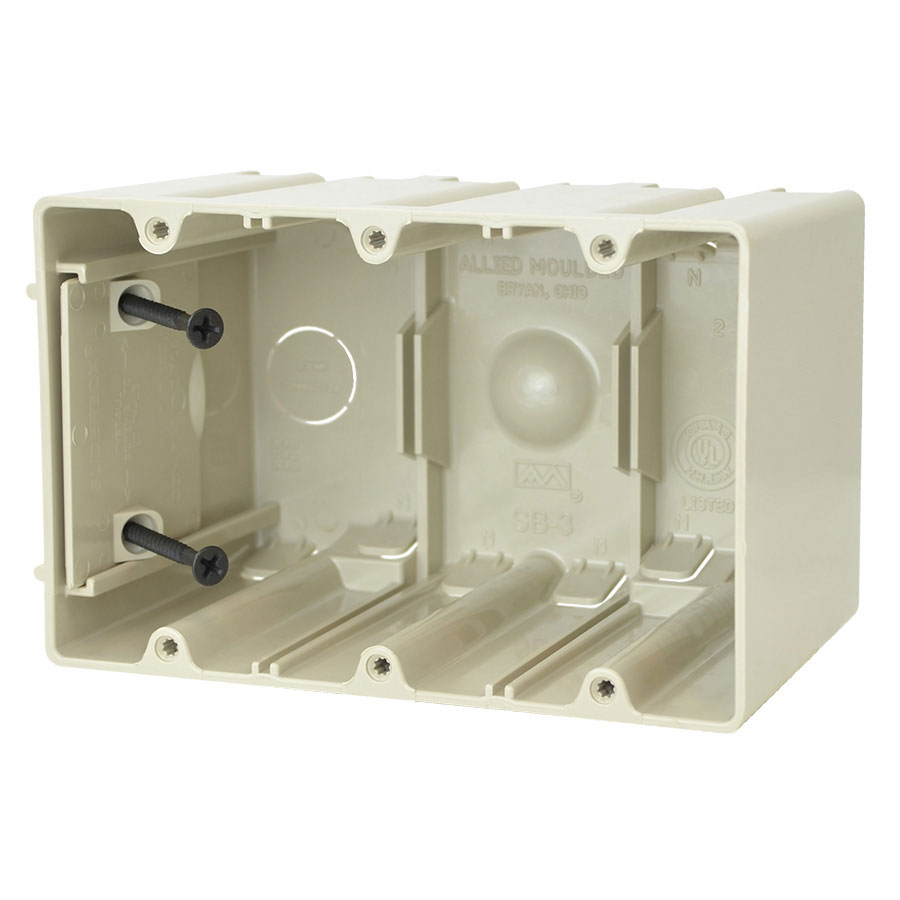

Three gang adjustable electrical box for use with nonmetallic sheathed cable
QTY
  • Product Description
  • Features
  • Specifications
Three gang adjustable electrical box for use with nonmetallic sheathed cable
  • Features
    • Molded-in splined device holes
    • adjustable slider plate for additional wall substrate thickness
    • slot provision for low voltage divider
    • rectangular exterior for easy cut-in
    • leveling ribs
    • offset gauge marks
  • Standards
    • ANSI / UL 514C - File No. E30594
  • Manufacturer Notes
    • Products must also be certified to: ANSI / UL 514C
    • For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Fire Classification
    • ANSI / UL 263 - File No. CEYY.R9379
    • Fire Resistance Classification in Wall Assemblies 2-Hours or less - Shall be separated by a horizontal distance of not less than 24 inches
  • Application
    • New and old work residential construction 2 HR fire resistive walls and ceilings
  • Specifications
    • Carton Quantity : 6
    • Mounting Description : 2 Screws
    • Box Type : Wall - Switch/Receptacle
    • Box Features : Adjustable box (SLIDERBOX®), Screws
    • Installation Type : New Work, Old Work
    • Height : 3-3/4 In
    • Width : 5-13/16 In
    • Depth : 3-9/16 In
    • Volume : 61 cu. in.
    • Number of Gangs : 3
    • Country of Origin : United States of America
    • Color : Beige
    • Patents : U.S. Patent No. 7,855,338, U.S. Patent No. 6,365,831 B1
    • Material : Polycarbonate
    • Additional Materials : Carbon steel fasteners
