SB-CBFR

CEIL BOX 4DIA DEEP NW SCREWS

ALISBCBFR SB-CBFR 085339945062
15.87 / Each
http://schema.org/OutOfStock
Mayer-DDS-SB-CBFR-1
  • Box Type: Ceiling, Fan, Fixture
  • Carton Quantity: 12
  • Country of Origin: USA
  • Depth: 2 3/4 in
  • Installation: New Work, Old Work
  • Material: Polycarbonate
  • Volume: 25 cu in
  • Width: 4 in

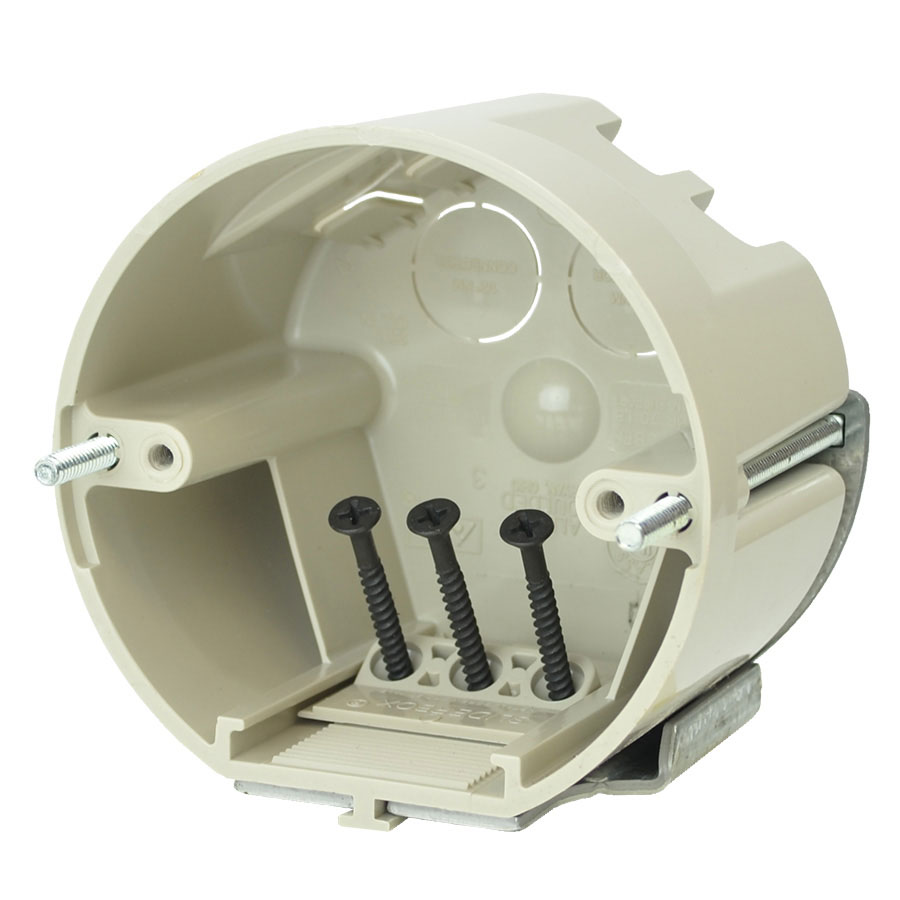

4" dia. round adjustable fan support box for use with nonmetallic sheathed cable
QTY
  • Product Description
  • Features
  • Specifications
4" dia. round adjustable fan support box for use with nonmetallic sheathed cable
  • Features
    • Machine tapped fixture holes and bolts/nuts for fan mounting
    • adjustable mounting plate for additional substrate thickness
  • Standards
    • ANSI / UL 514C - File No. E30594
  • Manufacturer Notes
    • Products must also be certified to: ANSI / UL 514C
    • For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Fire Classification
    • ANSI / UL 263 - File No. CEYY.R9379
    • Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less - Distance between boxes in adjacent cavities may be reduced to 5 1/2 inches
  • Application
    • New and old work residential construction 2 HR fire resistive floors and ceilings (70 lbs. fan support and 90 lbs. fixture support)
  • Specifications
    • Carton Quantity : 12
    • Mounting Description : 3 Screws
    • Box Type : Ceiling - Fan/Fixture
    • Box Features : Adjustable box (SLIDERBOX®), Screws
    • Installation Type : New Work, Old Work
    • Width : 4 In
    • Depth : 2-3/4 In
    • Volume : 25 cu. in.
    • Fan Rating : 70lbs
    • Fixture Rating : 90lbs
    • Country of Origin : United States of America
    • Color : Beige
    • Patents : U.S. Patent No. 7,855,338, U.S. Patent No. 6,365,831 B1
    • Material : Polycarbonate
    • Additional Materials : Carbon steel fasteners, Galvanized steel brackets and plated carbon steel fasteners, Plated carbon steel fasteners
    • Box Diameter : 4
