Switch Boxes

BOX 1G 2-1/2D EARS 1/2KO

TNBLXOWC25 LXOWC-25 785991118629
14.12 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Switch Boxes-1
  • Depth: 2-1/2 in
  • Finish: Galvanized
  • Length: 3 in
  • Material: Steel
  • Width: 2 in

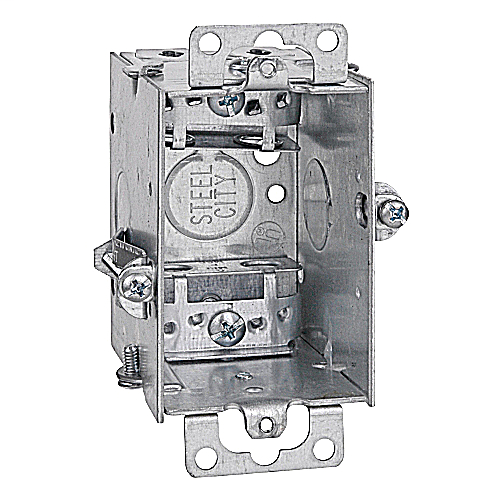

Gangable Switch Box, 12.5 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-1/2 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Armored Cable Clamps (C-3), Adapts to 3/4 Inch Wall Thickness, and Ears Flush for Old Work, For use with Armored/Metal Clad Cable
QTY
  • Product Description
  • Features
  • Specifications
Gangable Switch Box, 12.5 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-1/2 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Armored Cable Clamps (C-3), Adapts to 3/4 Inch Wall Thickness, and Ears Flush for Old Work, For use with Armored/Metal Clad Cable
  • Application
    • For use with armored/metal clad cable
  • Certifications
    • UL
  • Packaging
    • Package Length : 18.9
    • T&B Sold in UOM : Each
    • Package Width : 13.2
    • Package Height : 3.7
    • T&B Weight Per UOM : 63.5 lbs. per 100
    • Outer Package : 25
    • Order Multiple : 25
  • General
    • Finish : Galvanized
    • Knockouts-Bottom (Conduit) : (1) - 1/2"
    • Knockouts-Bottom (Cable) : 2
    • Volume (cu.in.) : 12.5
    • Work : Old
    • Knockouts-Each Side (Conduit) : (1) - 1/2"
    • Clamp : Armored Cable (C-3)
    • Material : Steel
    • Construction : Welded
  • Dimension Information
    • Width (inches) : 2
    • Length (inches) : 3
    • Depth (inches) : 2 1/2
  • Certifications
    • RoHS Compliance : No
