Ceiling Boxes

BOX OCTAGON METAL 4" OCTAGON B

TNB54171NV25 54171NV-25 785991173109
44.04 / CARTON
http://schema.org/OutOfStock
Mayer-DDS-Ceiling Boxes-1
  • Depth: 2-1/8 in
  • Diameter: 4 in
  • Finish: Galvanized

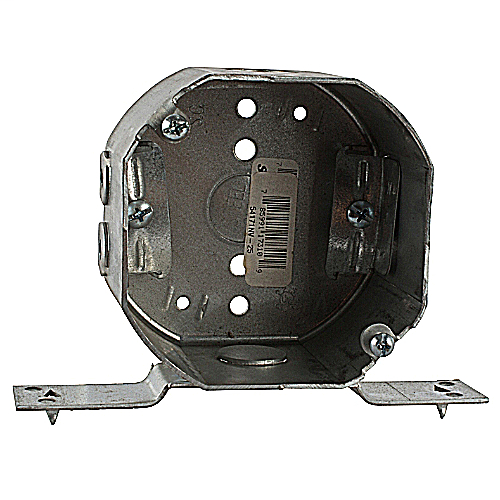

Octagon Box, 22.5 Cubic Inches, 4 Inch Diameter x 2-1/8 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Drawn Construction, with Non-Metallic Cable Clamps (C-5) and V Bracket, For use with Non-Metallic Sheathed Cable
QTY
  • Product Description
  • Features
  • Specifications
Octagon Box, 22.5 Cubic Inches, 4 Inch Diameter x 2-1/8 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Drawn Construction, with Non-Metallic Cable Clamps (C-5) and V Bracket, For use with Non-Metallic Sheathed Cable
  • Certifications
    • UL
  • Application
    • For use with non-Metallic sheathed cable
  • General
    • Material : Steel
    • Bracket : V
    • Knockouts-Each End (Cable) : 2
    • Volume (cu.in.) : 22.5
    • Style : 4 in. Octagon
    • Construction : Drawn
    • Knockouts-Each Side (Conduit) : (1) - 1/2"
    • Finish : Galvanized
    • Clamp : Non-Metallic (C-5)
  • Packaging
    • Package Length : 23.125
    • Package Width : 12
    • T&B Sold in UOM : Each
    • Package Height : 5.5
    • Outer Package : 25
    • T&B Weight Per UOM : 75 lbs. per 100
  • Certifications
    • RoHS Compliance : No
  • Dimension Information
    • Depth (inches) : 2 1/8
    • Diameter (inches) : 4
