Gang Boxes

BOX 5G DEEP 1/2&3/4KO

TNB5G1234 5G-1/2-3/4 785991131055
153.92 / CARTON
http://schema.org/OutOfStock
Mayer-DDS-Gang Boxes-1
  • Box Quantity: 1
  • Material: Metal, Steel
  • Unit Weight: 200 lb

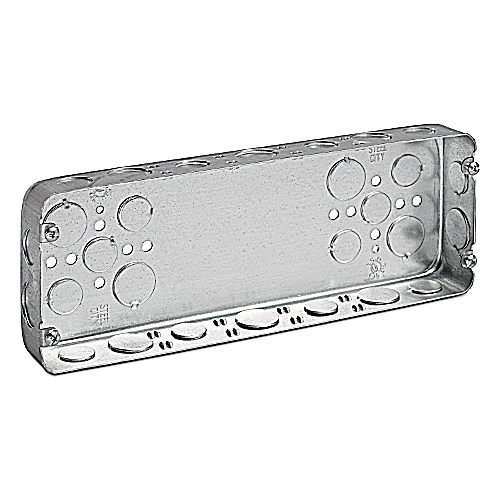

Five Gang Drawn Style Box, 85 Cubic Inches, 12-1/4 Inches Long x 4-1/2 Inches Wide x 1-5/8 Inches Deep, Drawn Construction with 1/2 Inch and 3/4 Inch Knockouts, For use with Conduit
QTY
  • Product Description
  • Specifications
Five Gang Drawn Style Box, 85 Cubic Inches, 12-1/4 Inches Long x 4-1/2 Inches Wide x 1-5/8 Inches Deep, Drawn Construction with 1/2 Inch and 3/4 Inch Knockouts, For use with Conduit
  • North American Specifications (UNSPSC)
    • UNSPSC : 39121330 Gang box
    • IGCC : 4484 Gang box
    • Brand Name : Steel City
    • Type : Gang Boxes
    • Application : For use with Conduit
    • Standard : UL E2969
    • Number Of Outlet : 5
    • Material : Steel
    • Size : 12-1/4 Inches Length x 4-1/2 Inches Width x 1-5/8 Inches Depth
    • Color : Silver
    • Construction : Drawn
    • Cubic Capacity : 85 Cubic Inches
    • Knockouts : 28
  • European Specifications (ETIM)
    • ETIM : EC000080 Surface mounted housing for flush mounted switching device
    • Assembly arrangement : Surface mounted housing
    • Mounting direction : Horizontal
    • Material : Metal
    • Colour : Silver
    • Transparent : N
    • Width of device : 114.3mm
  • Packaging
    • Outer Quantity : 1
    • Outer Dimensions (inches) : 14.1x4.6x1.9
    • Weight Uom : 200 lbs. per 100
