Switch Boxes

BOX SWITCH WALL METAL 1G SW BO

TNBCWNV25 CWNV-25 785991106305
23.57 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Switch Boxes-1
  • Depth: 2-3/4 in
  • Finish: Galvanized
  • Length: 3 in
  • Width: 2 in

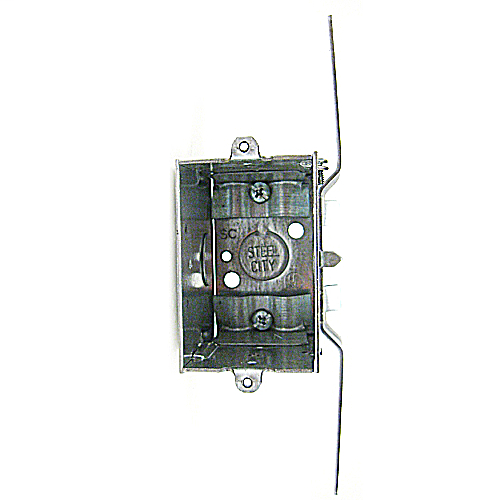

Gangable Switch Box, 14 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-3/4 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Non-Metallic Cable Clamps (C-5) and CV Bracket Recessed 7/8 Inches, For use with Non-Metallic Sheathed Cable
QTY
  • Product Description
  • Features
  • Specifications
Gangable Switch Box, 14 Cubic Inches, 3 Inches Long x 2 Inches Wide x 2-3/4 Inches Deep, 1/2 Inch Knockouts, Pre-Galvanized Steel, Non-Metallic Cable Clamps (C-5) and CV Bracket Recessed 7/8 Inches, For use with Non-Metallic Sheathed Cable
  • Application
    • For use with non-Metallic sheathed cable
  • Certifications
    • UL
  • Dimension Information
    • Width (inches) : 2
    • Depth (inches) : 2 3/4
    • Length (inches) : 3
  • General
    • Material : Steel
    • Clamp : Non-Metallic (C-5)
    • Knockouts-Bottom (Conduit) : (1) - 1/2"
    • Construction : Welded
    • Finish : Galvanized
    • Volume (cu.in.) : 14
    • Knockouts-Bottom (Cable) : 2
    • Bracket : CV
    • Knockouts-Each Side (Conduit) : (1) - 1/2"
  • Packaging
    • Outer Package : 25
    • Package Width : 7.75
    • T&B Sold in UOM : Each
    • Package Height : 8.25
    • Package Length : 19
    • T&B Weight Per UOM : 75.19 lbs. per 100
  • Certifications
    • RoHS Compliance : No
