3.75-inch Round Old Work Box

CEIL BOX 3-3/4DIA SWING BRKT

PSSC118WAC C1-18-WAC 785007206876
5.48 / EACH
http://schema.org/OutOfStock

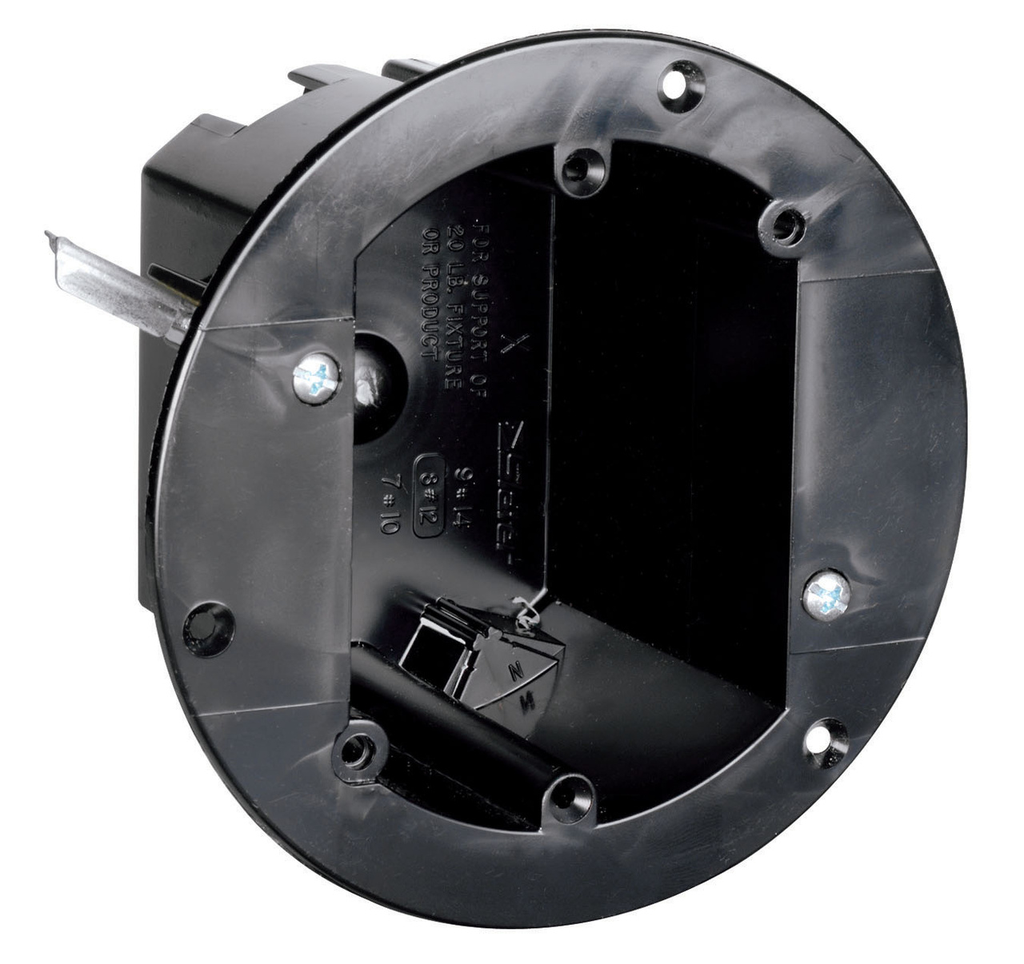

Mayer-DDS-3.75-inch Round Old Work Box-1
  • Applications: Commercial, Residential
  • Country of Origin: USA
  • Depth: 3.156 in
  • Indoor/Outdoor: Indoor
  • Material: Thermoplastic
  • Mounting Type: Swing Bracket
  • Number of Knockouts: 4.0
  • Type: Ceiling Box
  • Warranty Length: 1 yr
  • Weight: 0.21 lb
  • Width: 3.75 in
3 3/4-inch Round Old Work Box with Swing brackets for mounting that adjust from 1 1/4-inch down to 1/8-in. Four Auto/Clamps, Includes Device mounting holes. 50 pack.
QTY
  • Product Description
  • Features
  • Specifications
3 3/4-inch Round Old Work Box with Swing brackets for mounting that adjust from 1 1/4-inch down to 1/8-in. Four Auto/Clamps, Includes Device mounting holes. 50 pack.
  • Certifications
    • RoHS Compliant
    • cULus Listed
    • UL Listed
  • Features
    • Box designed so mounting strap of the device, with plaster ears removed, fits flush, allowing use of standard depth wall plate without unsightly gap between plate and wall surface.
    • Swing out wing brackets permit installation of box in wall with 1 1/4 inch thick wallboard down to 1/8 inch thick paneling.
    • New longer swing brackets have greater reach to clamp onto oversize cutouts.
    • Made of high impact thermoplastic.
    • Combination slotted/Phillips head swing bracket screws.
    • Include exclusive Auto/Clamp feature.
    • Suitable for in-wall use.
    • Suitable for in-ceiling use for supporting weights up to up to 6 lbs.
    • Includes device mounting holes.
    • For covering patents, see www.legrand.us/patents.
  • Specifications
    • Depth : 3.156 in
    • Color : Black
    • Weight : 0.21 lb
    • Material : Thermoplastic
    • Width : 3.75 in
    • Country of Origin : United States
    • Product Line : Pass & Seymour
    • Product Volume : 18.0
    • Box Shape : Round
    • Cable Entry : Top
    • Cable Entry : Back
    • Type : Ceiling Box
    • Features : Old Work
    • Cable Entry : Bottom
    • Standard : UL Listed
    • Features : Auto Clamps
    • Indoor/Outdoor : Indoor
    • Features : Fixture Rated
    • Number of Knockouts : 4.0
    • Mounting Type : Swing Bracket
    • Cubic Capacity : 18.0 in³
    • Application Sector : Commercial
    • Installation Location : Ceiling
    • Application Sector : Residential
    • Special Features : Old Work Ceiling Box
    • Warranty Type : 1-Year Limited Warranty
