ALLIED MOLDED PRODUCTS

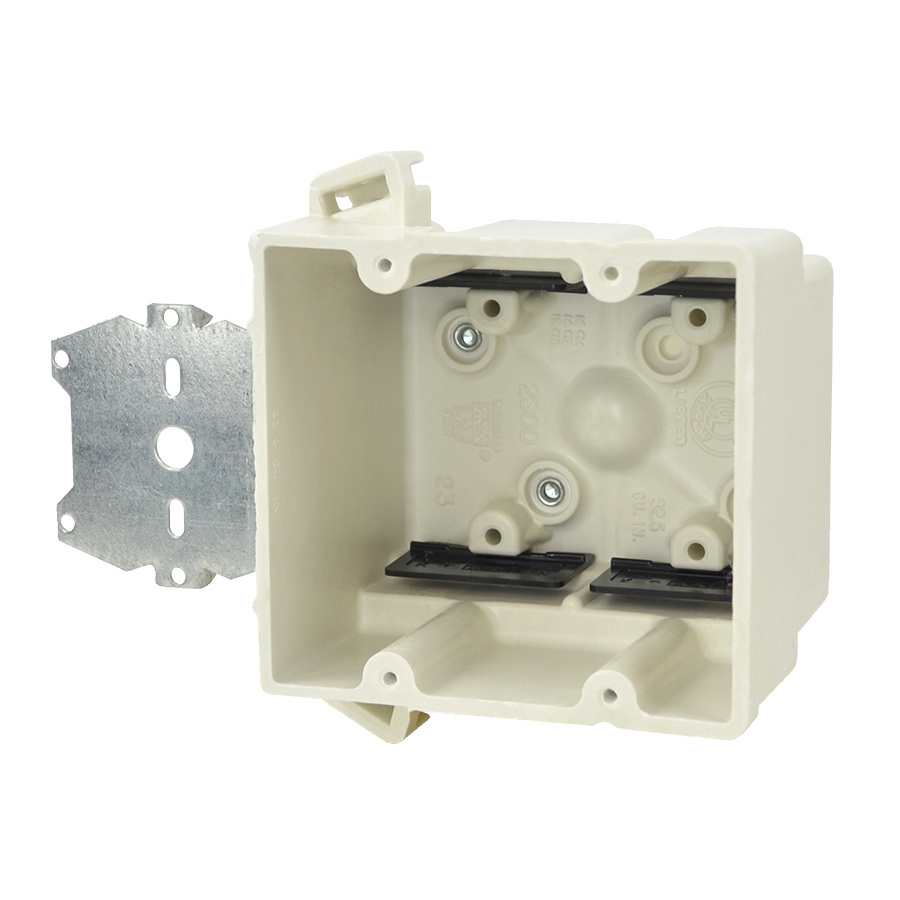

Two gang electrical box for use with nonmetallic sheathed cable

BOX 2G DEEP NEW WORK Z-BRKT

ALI2300Z4 2300-Z4 85339127000
7.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-Two gang electrical box for use with nonmetallic sheathed cable-1
  • Carton Quantity: 48
  • Carton Weight: 37 lb
  • Depth: 3 in
  • Height: 3 in
  • Number of Gangs: 2
  • Volume: 32.5 cu in
  • Width: 4 in
QTY
  • Features
  • Specifications
  • Features
    • Machine tapped device holes, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps bulk packed
  • Additional Materials
    • Galvanized steel brackets and plated carbon steel fasteners
    • Polyvinyl chloride clamps
  • Standards
    • ANSI / UL 514C: File No. E30594
  • Fire Resistance Classification in Wall Assemblies 2-Hours or less
    • Shall be separated by a horizontal distance of not less than 3 inches
    • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Fire Test of Building Construction Materials
    • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
    • Note: Products must also be certified to: ANSI / UL 514C
  • Application
    • New work residential construction stud face mounted 2 HR fire resistive walls
  • Specifications
    • Wall Box
  • Specifications
    • Brand : fiberglassBOX
    • Catalog # : 2300-Z4
    • Height : 3-3/4 in.
    • Width : 4 in.
    • Depth : 3 in.
    • Volume : 32.5 cu. in.
    • Type of Installation : New Work
    • Number of Gangs : 2
    • Carton Quantity : 48
    • Carton Weight : 37 lb.
    • UPC : 085339127000
    • UNSPSC : 39121308
    • Country of Origin : United States of America
    • Color : Beige/tan
    • Material : Fiberglass reinforced polyester BMC
    • Mounting : Stud mount "Z" hanger bracket with 1/2" offset
