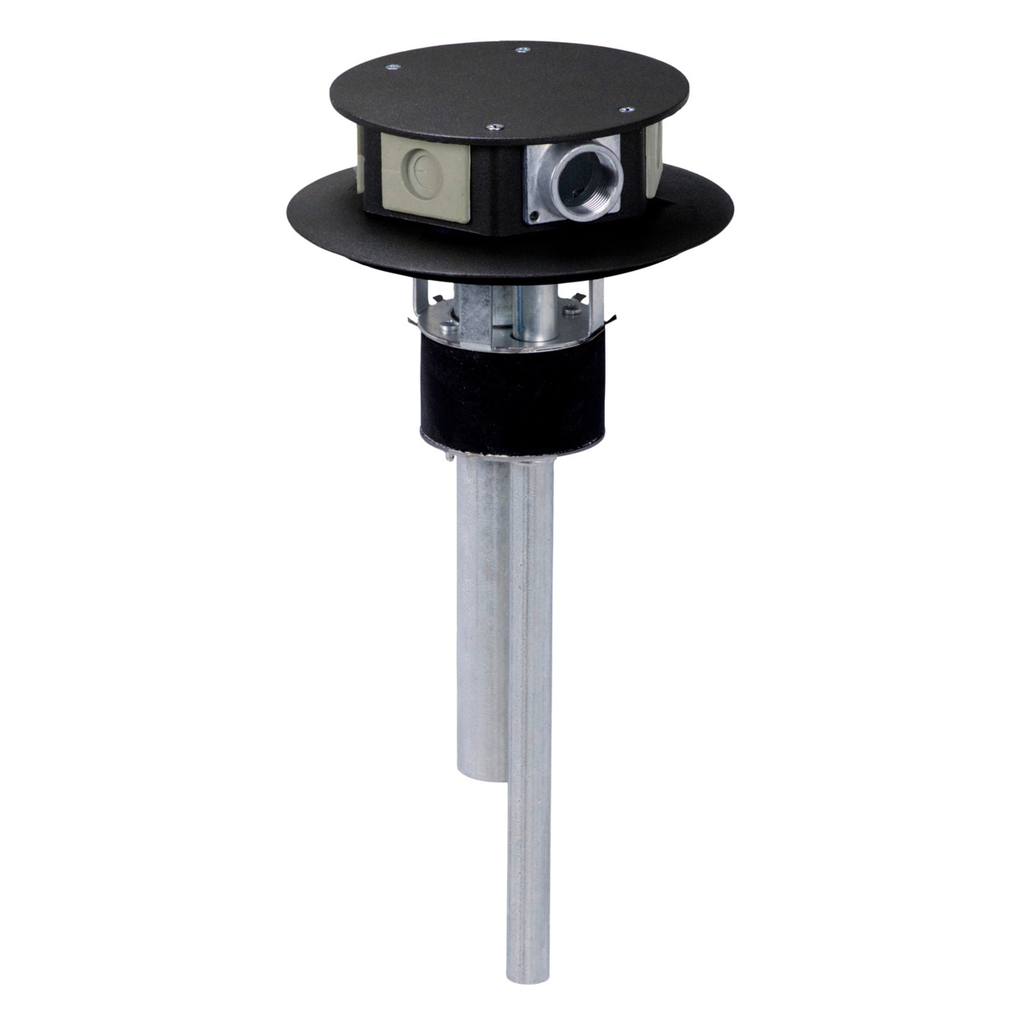

RC9AFFTC Furniture Feed Poke-Thru Assembly, Black

P-THRU FURNITURE FEED ASSY BLK

WRMRC9AFFTCBK RC9AFFTCBK 786564021704
604.65 / EACH
http://schema.org/OutOfStock
Mayer-DDS-RC9AFFTC Furniture Feed Poke-Thru Assembly, Black-1
  • Applications: Commercial, Education, Healthcare, Hospitality
  • Core Size: 3 in
  • Country of Origin: Mexico
  • Depth: 14.44 in
  • Height: 7.0 in
  • Material: Steel
  • Type: Poke-Thru
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 5.18 lb
  • Width: 7.0 in
Poke-thru devices are an industry standard, but they’re often limited to certain areas. Not anymore. Evolution Poke-Thru Devices can be installed throughout a building, no matter where you need them. With versatility like never before, choose from a wide range of options that bring connections to the floor—and evolve with the future
QTY
  • Product Description
  • Features
  • Specifications
Poke-thru devices are an industry standard, but they’re often limited to certain areas. Not anymore. Evolution Poke-Thru Devices can be installed throughout a building, no matter where you need them. With versatility like never before, choose from a wide range of options that bring connections to the floor—and evolve with the future
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Features
    • Complete with hexagonal service head. Service head has one 3/4inch trade size threaded conduit hub and five rubber grommets.
    • The service head includes scrub water gasket. Unit is supplied with one 1 1/4inch and one 1/2inch trade size conduit stem to feed power and communication services.
    • Service head is not to be used as a junction box. All power connections must be made in a junction box below (not supplied).
    • Colors available in painted gray (GY), and painted black (BK). NOTE: Assembled with scrub water gasket. For use on tile or carpet floors.
    • RC9AFFTC Series Poke-Thru Devices require a 3inch (76mm) diameter hole. Not designed to work with bare concrete or terrazzo. Floor covering thickness 1/8inch minimum.
  • Specifications
    • Depth : 14.44 in
    • Special Features : Dual Service, 3/4" trade size opening, 5 communication egress points, UL Lised, ADA Compliant, 2 Hour fire rating
    • Height : 7.0 in
    • Weight : 5.18 lb
    • Color : Black
    • Width : 7.0 in
    • Material : Steel
    • Country of Origin : Mexico
    • Product Line : Wiremold
    • Product Volume : 707.56
    • Standard : NEC
    • Standard : cULus
    • Type : Poke-Thru
    • Fire Rating : 2.0
    • Floor Type : Tile
    • Floor Type : Carpet
    • Core Hole Size : 3.0 in
    • Service Capacity : Dual
    • Cover Style : Furniture Feed
    • Standard : UL Fire Classified
    • Application Sector : Education
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Application Sector : Hospitality
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
