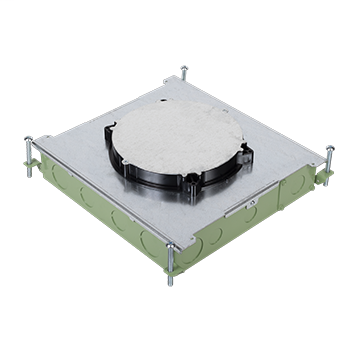

Resource RFB®E Series Six Gang On-Grade Floor Box

6 GANG ON GRADE CONCRETE FLR B

WRMRFB6EOG RFB6E-OG 786776171501
355.20 / EA
http://schema.org/OutOfStock
  • Applications: Commercial
  • Construction: Assembled
  • Country of Origin: USA
  • Depth: 14.5 in
  • Height: 3.25 in
  • Number of Outlets: 0
  • Type: Floor Box
  • Volume: 689.44 cu in
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 13.5 lb
  • Width: 14.63 in
Resource RFB6E-OG Series Six Gang On-Grade Floor Box is a versatile activation solution that provides power and/or communication services to open space areas or directly to the workstation. For use in either on-grade or above grade concrete floors, it is fully adjustable with a tunnel compartment. Supplied with two (2) duplex mounting plates. Other device plates sold separately. Other device plates sold separately. RFB6E-OG Series Floor Boxes are now available with the new Evolution™ Activation Covers. This new cover series incorporates TopGuard protection to prevent water, dirt, and debris from entering the power and communication devices. The Evolution™ Activation Covers are UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood floors. The RFB6E-OG Series has many unique applications, some of which include schools, financial institutions, commercial office buildings, and residences.
QTY
  • Product Description
  • Features
  • Specifications
Resource RFB6E-OG Series Six Gang On-Grade Floor Box is a versatile activation solution that provides power and/or communication services to open space areas or directly to the workstation. For use in either on-grade or above grade concrete floors, it is fully adjustable with a tunnel compartment. Supplied with two (2) duplex mounting plates. Other device plates sold separately. Other device plates sold separately. RFB6E-OG Series Floor Boxes are now available with the new Evolution™ Activation Covers. This new cover series incorporates TopGuard protection to prevent water, dirt, and debris from entering the power and communication devices. The Evolution™ Activation Covers are UL Listed to U.S. and Canadian safety standards for tile, terrazzo, carpet, and wood floors. The RFB6E-OG Series has many unique applications, some of which include schools, financial institutions, commercial office buildings, and residences.
  • Features
    • Six-compartment box: To accommodate power, communication, or A/V.
    • Pass-around tunneling: Flexible design of RFBE Series floor boxes allows adjacent compartments to be wired together.
    • Accepts 2'' trade size conduit hub (2HUB): Allows a 2'' trade size conduit to attach to the side of box while minimizing concrete pour depth.
    • Accepts round Evolution series poke-thru covers: Covers come in surface and flush styles, available in brushed aluminum, satin brass plated, satin nickel plated, and six powder-coated finishes to blend in with any space.
    • Suitable for slab-on-grade ground level floors: on-grade version fits in concrete pours of greater than 4-1/16''.
    • Lightweight ““slab-on-grade”” version: Special fusion-bonded epoxy corrosion resistant paint finish allows for slab-on-grade use without the weight of cast iron material.
    • Easy installation in many floor surface types: Carpet, Tile, Bare concrete and Terrazzo floors.
  • Certifications
    • RoHS Compliant
    • USMCA Compliant
    • cULus Listed
  • Specifications
    • Country of Origin : United States
    • Depth : 14.5 in
    • Height : 3.25 in
    • Width : 14.63 in
    • Weight : 13.5 lbs
    • Color : Green
    • Product Line : Wiremold
    • Product Volume : 689.44 cu in
    • Application Sector : Commercial
    • Construction : Assembled
    • Type : Floor Box
    • Standard : cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT Meets Article 314.27(C) of NEC.
    • Special Features : 6-gang floor box, epoxy coating allows box to be placed in contact with the Earth and no vapor barrier required, 1 1/4in trade size conduit feeds. 3 1/2in deep concrete pour, Accepts Evolution 8in style poke-thru covers.
    • Cubic Capacity : 23.0 in³
    • Number of Outlets : 0.0
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Cable Entry : Knockout
