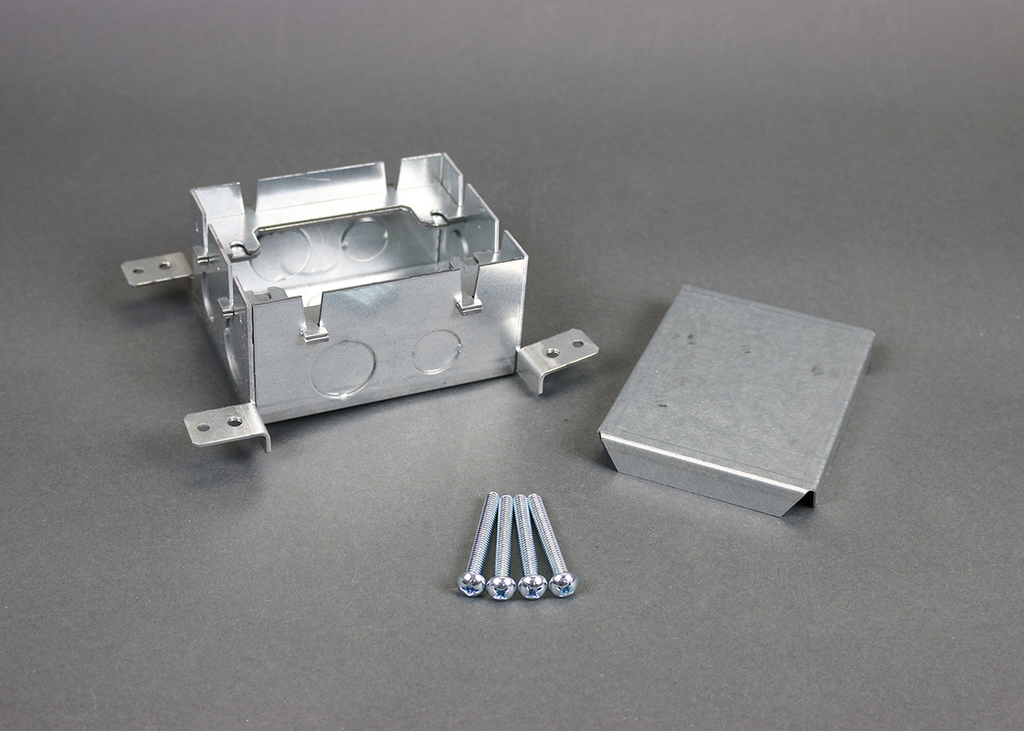

Omnibox® Series Single Gang Shallow Steel Floor Box

STL SH BX 1 GANG

WRM880M1 880M1 786564221722
81.55 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Omnibox® Series Single Gang Shallow Steel Floor Box-1
  • Applications: Commercial, Education
  • Construction: Assembled
  • Country of Origin: Mexico
  • Depth: 5.5 in
  • Height: 2.5 in
  • Knockout Size: 1/2 in, 3/4 in
  • Material: Steel
  • Number of Knockouts: 2
  • Number of Outlets: 0
  • Type: Floor Box
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 1.948 lb
  • Width: 7.0 in
The 880M1 shallow single gang Omnibox® Floor Box provides an excellent activation solution for applications where single service is required in open space areas. The 880M1 floor box is offered in a stamped steel construction, designed to be installed in above grade concrete floor applications and to meet a wide range of market requirements. This floor box series has many applications, some of which are schools, financial institutions, and commercial office buildings.
QTY
  • Product Description
  • Features
  • Specifications
The 880M1 shallow single gang Omnibox® Floor Box provides an excellent activation solution for applications where single service is required in open space areas. The 880M1 floor box is offered in a stamped steel construction, designed to be installed in above grade concrete floor applications and to meet a wide range of market requirements. This floor box series has many applications, some of which are schools, financial institutions, and commercial office buildings.
  • Certifications
    • cULus Listed
    • RoHS Compliant
  • Features
    • TopGuard protection. All cover assemblies for the Omnibox Floor Box Series have TopGuard protection. An integral design which keeps out water, dirt, and debris from the power and communication compartments.
    • Fully adjustable box. Before and after concrete pour adjustability. Lower installed cost.
    • Concrete-tight stamped steel construction. Lower cost option for above grade applications.
    • Boxes and covers have been listed by Underwriters Laboratories Inc. to their standard UL514A, 514C, 514D, and Canadian standard C22.2.
    • Flush activation assemblies for carpet and tile. Aesthetically pleasing assemblies are interchangeable for both cast-iron and stamped steel.
    • Datacom connectivity options. Accepts industry standard and proprietary devices from a wide range of manufacturers to provide a seamless and aesthetically pleasing interface for voice, data, audio, and video applications at the point-of-use.
    • A wide selection of data and bezel options available for use with Ortronics TracJack and Series II devices.
  • Specifications
    • Depth : 5.5 in
    • Color : Silver
    • Height : 2.5 in
    • Material : Steel
    • Weight : 1.948 lb
    • Product Line : Wiremold
    • Width : 7.0 in
    • Product Volume : 96.25
    • Country of Origin : Mexico
    • Type : Floor Box
    • Box Type : On-Grade
    • Cover Style : Flush
    • Box Capacity : 1 Gang
    • Floor Type : Concrete
    • Cable Entry : Knockout
    • Knockout Size : 1/2 in
    • Knockout Size : 3/4 in
    • Number of Knockouts : 2
    • Number of Outlets : 0.0
    • Construction : Assembled
    • Service Capacity : Single
    • Application Sector : Education
    • Cubic Capacity : 37.0 in³
    • Application Sector : Commercial
    • Depth Behind Device Plates : 1.75 in
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT. Meets Article 314.27(C) of NEC.
    • Special Features : Available in one-, two-, and three-gang configurations. More configurations to support multiservice applications. Single service boxes. Accommodates power, communication and/or audio/video devices which reduces the need for multiple boxes.
