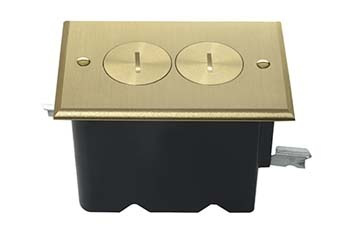

1-Gang Tamper-Resistant Floor Box Assembly (for Wood Sub-Floors)

FLOOR BOX SG DUPLEX RECPT BRAS

PSSFB1TRDRB FB1-TR-DR-B 785007108750
89.99 / EACH
http://schema.org/OutOfStock
Mayer-DDS-1-Gang Tamper-Resistant Floor Box Assembly (for Wood Sub-Floors)-1
  • Applications: Commercial, Residential
  • Country of Origin: Mexico
  • Depth: 4.0 in
  • Height: 4.75 in
  • Indoor/Outdoor: Indoor
  • Length: 4.75 in
  • Material: Brass,Thermoplastic
  • Mounting Type: Screw
  • Number of Gangs: 1
  • Type: Floor Box
  • Warranty Length: 1 yr
  • Width: 3.25 in
Tamper-Resistant Floor Box Assembly, #8 duplex opening. Two threaded screw plugs,Includes 3232 15A, 125A tamper-resistant receptacle. Brass.
QTY
  • Product Description
  • Features
  • Specifications
Tamper-Resistant Floor Box Assembly, #8 duplex opening. Two threaded screw plugs,Includes 3232 15A, 125A tamper-resistant receptacle. Brass.
  • Features
    • Tamper-Resistant shutters let plugs in, keep other things out.
    • Rugged diecast cover plates.
    • Meets UL514(c) and NEC 314.27(c).
    • Scrub water compliant.
    • With durable nickel or brass cover plates.
    • Dual-voltage models available.
    • Swing brackets mounting option eliminates drilling tile flooring for mounting screws.
    • Wood sub-floors only.
    • Wire Fill (AWG): 10 No. 14, 9 No. 12, 8 No. 10.
  • Certifications
    • cULus Listed
  • Specifications
    • Depth : 4.0 in
    • Height : 4.75 in
    • Color : Brass
    • Length : 4.75 in
    • Material : Brass,Thermoplastic
    • Width : 3.25 in
    • Product Line : Pass & Seymour
    • Product Volume : 20.5
    • Country of Origin : Mexico
    • Type : Floor Box
    • Cable Entry : Back
    • Features : Durable
    • Number of Gangs : 1
    • Standard : UL listed
    • Box Shape : Rectangular
    • Indoor/Outdoor : Indoor
    • Mounting Type : Screw Mount
    • Cubic Capacity : 20.5 in³
    • Application Sector : Commercial
    • Application Sector : Residential
    • Installation Location : Underfloor
    • Warranty Type : 1-Year Limited Warranty
    • Special Features : Tamper resistant, rugged diecast cover, wood floors only
