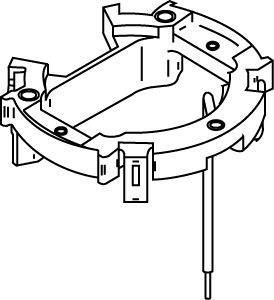

Ratchet-Pro 881 Series Ratchet Adjusting Ring

PVC BOX ADJ RING

WRM881ADP 881ADP 786564524274
17.62 / EACH
http://schema.org/OutOfStock
  • Applications: Commercial, Education, Healthcare, Hospitality
  • Construction: Not Assembled
  • Country of Origin: USA
  • Depth: 4.0 in
  • Height: 1.13 in
  • Material: PVC
  • Type: Accessory
  • Warranty Length: 1-Year From Installation Or 2-Years From Day Of Sale
  • Weight: 0.142 lb
  • Width: 4.0 in
Wiremold® Ratchet-Pro™ Series Floor Boxes provide single- and dual-service capability in a variety of easy-to-install round floor boxes. These designs allow the flexibility for providing power, A/V or communication services to open-space areas in an aesthetic solution. Applications include malls, shopping centers, department stores, airports, hospitals, and office buildings. Ratchet-Pro™ Series Floor Boxes are cULus Listed for use in both on grade and above grade concrete construction.
QTY
  • Features
  • Specifications
  • Features
    • Used to attach wiring devices and cover plates to PVC box. Locks into place without using glue or mechanical fasteners. Compensates for up to 10° of tilt if box is not level.
    • Ground wire is factory attached to the adjusting ring. One ring required per box, single- or dual-service, ordered separately.
  • Certifications
    • USMCA Compliant
    • cULus Listed
    • RoHS Compliant
  • Specifications
    • Depth : 4.0 in
    • Material : PVC
    • Height : 1.13 in
    • Weight : 0.142 lb
    • Product Line : Wiremold
    • Width : 4.0 in
    • Special Features : Parallel conduit hubs. Graduated cubic inch markings on interior of the box. Corresponding graduated cubic inch markings on divider. TopGuard protection.
    • Type : Accessory
    • Country of Origin : United States
    • Construction : Not Assembled
    • Application Sector : Education
    • Application Sector : Commercial
    • Application Sector : Healthcare
    • Application Sector : Hospitality
    • Warranty Type : 1-Year from Installation or 2-Years from Day of Sale
    • Standard : cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT Meets Article 314.27(C) of NEC.
