Omnibox® Single Gang Rectangular Aluminum Carpet/Tile Flange

WM 818TCAL 1-GANG ALUM CPT & T

WRM818TCAL 818TCAL 786564054511
80.09 / EACH
http://schema.org/OutOfStock
Mayer-DDS-Omnibox® Single Gang Rectangular Aluminum Carpet/Tile Flange-1
  • Country of Origin: China
  • Depth: 6.0 in
  • Height: 0.75 in
  • Material: Aluminum
  • Weight: 0.63 lb
  • Width: 5.0 in

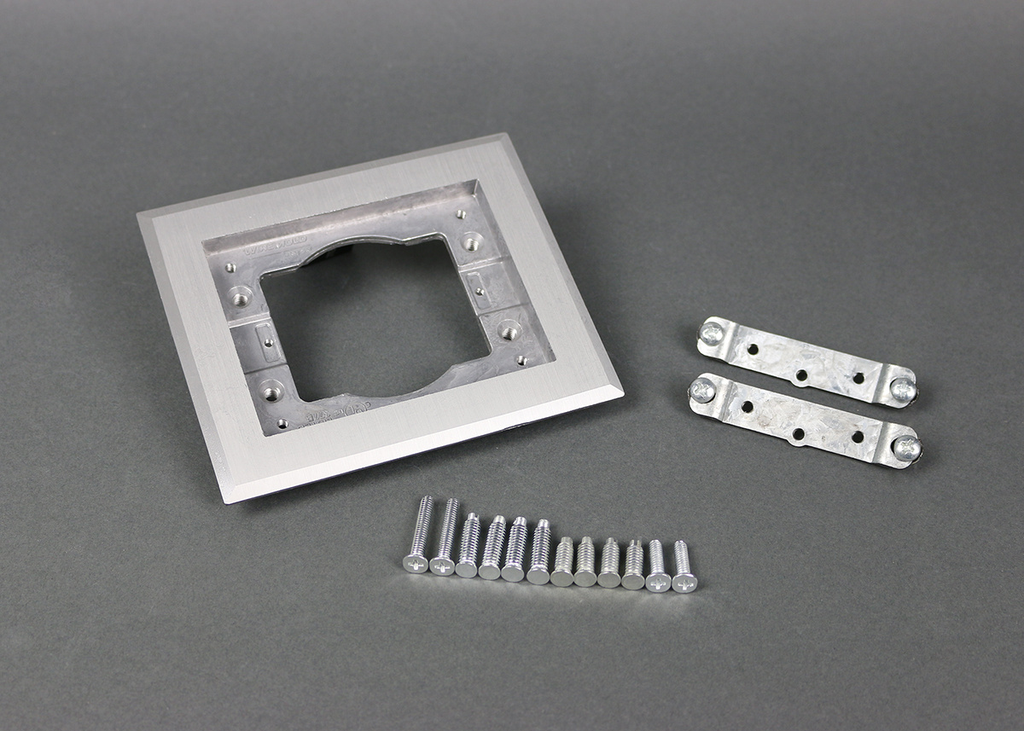

One gang brushed aluminum combination carpet and tile flange, for OmniBox® and Modulink™ Series floor boxes. Flange is 5.940 inch x 4.920 inch (150.9mm x 125.0mm). Accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II, and Wiremold CM Series Open System adapters, sold separately. NOTE: Brushed aluminum flanges come with beveled edges. Brass cover plates can only be used with brass flanges. Brushed aluminum flanges come with beveled edges.
QTY
  • Product Description
  • Features
  • Specifications
One gang brushed aluminum combination carpet and tile flange, for OmniBox® and Modulink™ Series floor boxes. Flange is 5.940 inch x 4.920 inch (150.9mm x 125.0mm). Accepts Ortronics MAB6TJ TracJack and MAB3S2 Series II, and Wiremold CM Series Open System adapters, sold separately. NOTE: Brushed aluminum flanges come with beveled edges. Brass cover plates can only be used with brass flanges. Brushed aluminum flanges come with beveled edges.
  • Features
    • This product meets the material restrictions of RoHS
  • Certifications
    • RoHS Compliant
    • cULus Listed
  • Specifications
    • Depth : 6.0 in
    • Height : 0.75 in
    • Color : Aluminum
    • Material : Aluminum
    • Weight : 0.63 lb
    • Width : 5.0 in
    • Product Line : Wiremold
    • Country of Origin : China
    • Product Volume : 22.5
