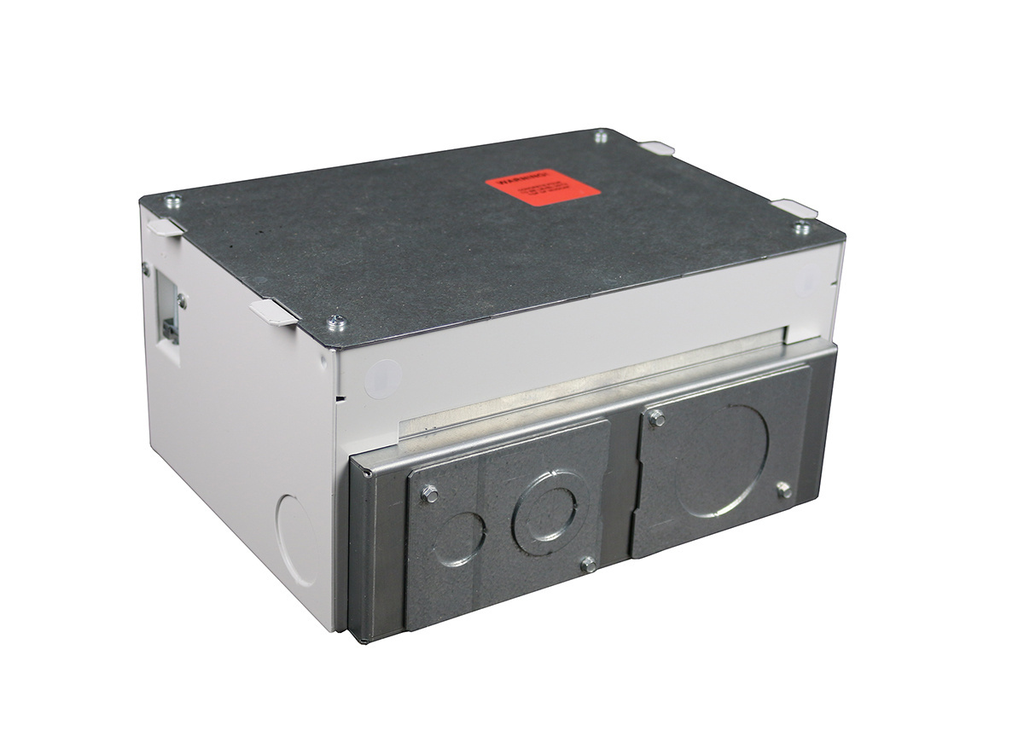

Evolution™ Series Four/Five Gang Floor Box

Evolution™ Series Four/Five Gang Floor Box

WRMEFB45S EFB45S 786564086253
278.51 / EA
  • Certifications: NAFTA
  • Country of Origin: Mexico
  • Depth: 13.0 in
  • Height: 6.0 in
  • Number of Outlets: 0.0
  • Type: Floor Box
  • Volume: 702.0 cu in
  • Weight: 13.5 lb
  • Width: 9.0 in
The Evolution™ Series Four/Five Gang Floor Box has been designed to be installed in concrete, raised, and wood floor applications. The box has a fully finished interior to assist plugging and unplugging of devices. Designed to work with standard size wall plates for four gangs of capacity, or proprietary plates for a full five gangs of capacity. It comes complete with all components needed for initial installation. The floor box is compatible with Walkerflex Modular Wiring System. Custom options are available upon request.
  • Product Description
  • Features
  • Specifications
The Evolution™ Series Four/Five Gang Floor Box has been designed to be installed in concrete, raised, and wood floor applications. The box has a fully finished interior to assist plugging and unplugging of devices. Designed to work with standard size wall plates for four gangs of capacity, or proprietary plates for a full five gangs of capacity. It comes complete with all components needed for initial installation. The floor box is compatible with Walkerflex Modular Wiring System. Custom options are available upon request.
  • Certifications
    • RoHS Compliant
    • NAFTA Compliant
  • Finished interior. Fully finished interior removes the unfinished industrial look while increasing visibility, making it easier to see where to plug in devices.
  • Auto-close egress doors. Cable egress doors lock in position when open, and automatically closes around wires to protect cabling and reduce trip hazards.
  • Configurable with removable modules. In addition to having removable dividers and a tunnel feature that allows all compartments to be connected, the modules are removable through the top or back of the floor box. This allows for easier installations and facilitates moves, adds and changes without having to disconnect services, saving time and money.
  • One box many applications. Evolution Series Floor Boxes are designed to work in concrete, raised and wood floor applications and are fully adjustable both pre- and post-concrete pour. A single box can be specified for multiple floor types without having to order additional components or accessories.
  • Audio/Video Design. Evolution Series Floor Boxes have been developed specifically with the A/V industry in mind. With 3 1/2'' - 3 7/8'' [89mm x 98mm] of wiring capacity behind each device plate, these boxes will accept devices from leading A/V manufacturers including Extron® Electronics and Crestron®.
  • Durable 180° articulating hinge. Hinge design enables covers to open a full 180° and lie flat on the floor surface with the durability to support a large cover. Provides easy access to all interior modules and activations while reducing tripping hazards.
  • Die cast aluminium cover assemblies. Evolution Series Floor Box Covers have been designed to work on multiple floor surfaces and are manufactured from die cast aluminium to provide strength and style. Decorative powder coat colors (black, brass, bronze, gray, nickel, and aluminium) will complement any room décor.
  • Certifications
    • cULus Listed : E2961
  • Product Weight : 13.5 lb
  • Number of Outlets : 0.0
  • Cubic Capacity : 27.5 cu in
  • Product Volume : 702.0 cu in
  • Construction : Assembled
  • Certifications : CULUS,ROHS,NAFTA
  • Special Features : One box, three floor types (concrete, raised, and wood). 4 or 5 gangs of capacity, Fully finished interior, Removable modules, accepts 2" trade size conduit feeds, Cable guides
  • Standard : cULus Listed Metallic Outlet Boxes: File E2961 Guide QCIT, Meets Article 314.27(C) of NEC.
  • Country Of Origin : MX
  • Application Sector : Commercial
  • Product Depth : 13.0 in
  • Product Width : 9.0 in
  • Color : White
  • Product Height : 6.0 in
  • Type : Floor Box
  • Product Line : Wiremold
  • Cable Entry : Knockouts in
