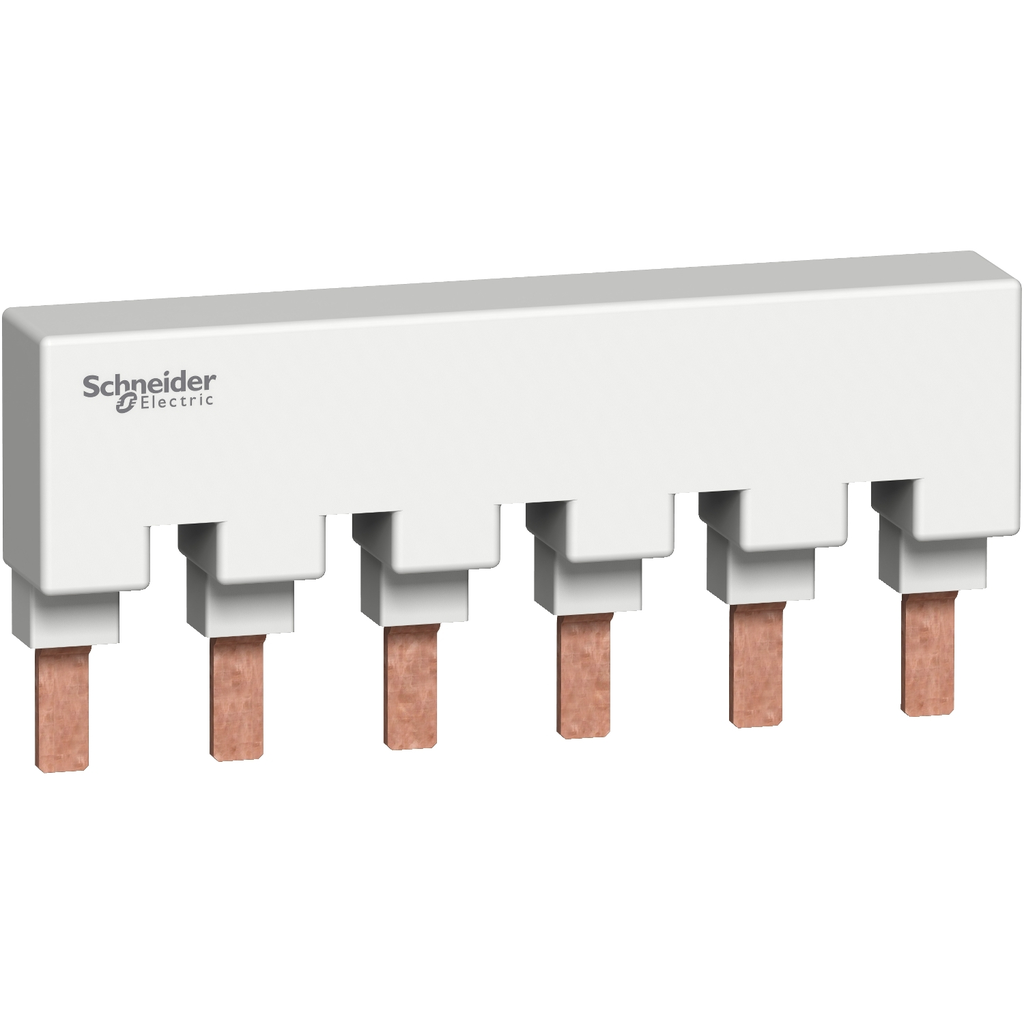

Multi9 - comb busbar - 2L - 18 mm pitch - 6 modules - 115A

Multi9 - comb busbar - 2L - 18 mm pitch - 6 modules - 115A

SQDM9XUP206 M9XUP206 785901975304
72.04 / EA
  • Mounting Type: Horizontal
  • Standard: UL 508
  • Voltage: 277 V, 480 V
  • Width: 108 mm, 4.25 in
  • Specifications
  • Offer Sustainability
    • WEEE : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • EU RoHs Directive : Compliant
    • REACh Free Of SVHC : Yes
  • Environment
    • Pollution Degree : 3
    • Standards : UL 508
    • Fire Resistance : 1760 °F (960 °C) 30 s ) IEC 60695-2-1
    • IP Degree Of Protection : IP20 with end-pieces and tooth covers
  • Main
    • Product Or Component Type : Comb busbar
    • Range : Multi 9
    • Lines Description : 2L
    • Length In 18 mm Modules : 6
    • Accessory / Separate Part Cate : Connection accessory
  • Complementary
    • Poles Configuration For 1 Way : 1 x 2P
    • Device Presentation : Uncuttable
    • Ue Rated Operational Voltage : 480 V AC 50/60 Hz Ph/Ph || 277 V AC 50/60 Hz Ph/N
    • Width : 4.25 in (108 mm)
    • Colour : Light gray RAL 7035)
    • Mounting Mode : Horizontal
    • Mounting Location : Top on tunnel type terminals
    • Connection Pitch : 0.71 in (18 mm)
    • Distance Between Way : 1.42 in (36 mm)
    • Ui Rated Insulation Voltage : 1000 V AC 50/60 Hz UL 508
    • Connector Type : Tooth
    • Ie Rated Operational Current : 115 A 104 °F (40 °C)
    • Range Compatibility : Multi 9 C60BP
    • Number Of Ways : 3 ways 2 L
    • 9 mm Pitches : 12
    • Insulation : Insulated
  • Ordering And Shipping Details
    • Returnability : Yes
    • GTIN : 00785901975304
    • Nbr. Of Units In Pkg. : 1
    • Discount Schedule : DE2
    • Category : 00949 - M9 GEN 2 CB UL489
