Head for triple headed push button, Harmony XB4, green flush/red projecting/green flush pushbutton 22mm with marking

Head for triple headed push button, Harmony XB4, green flush/red projecting/green flush pushbutton 22mm with marking

SQDZB4BA73133 ZB4BA73133 3389119043649
57.52 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for triple headed push button, Harmony XB4, green flush/red projecting/green flush pushbutton 22mm with marking-1
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Standard
  • Warranty Length: 18 mth

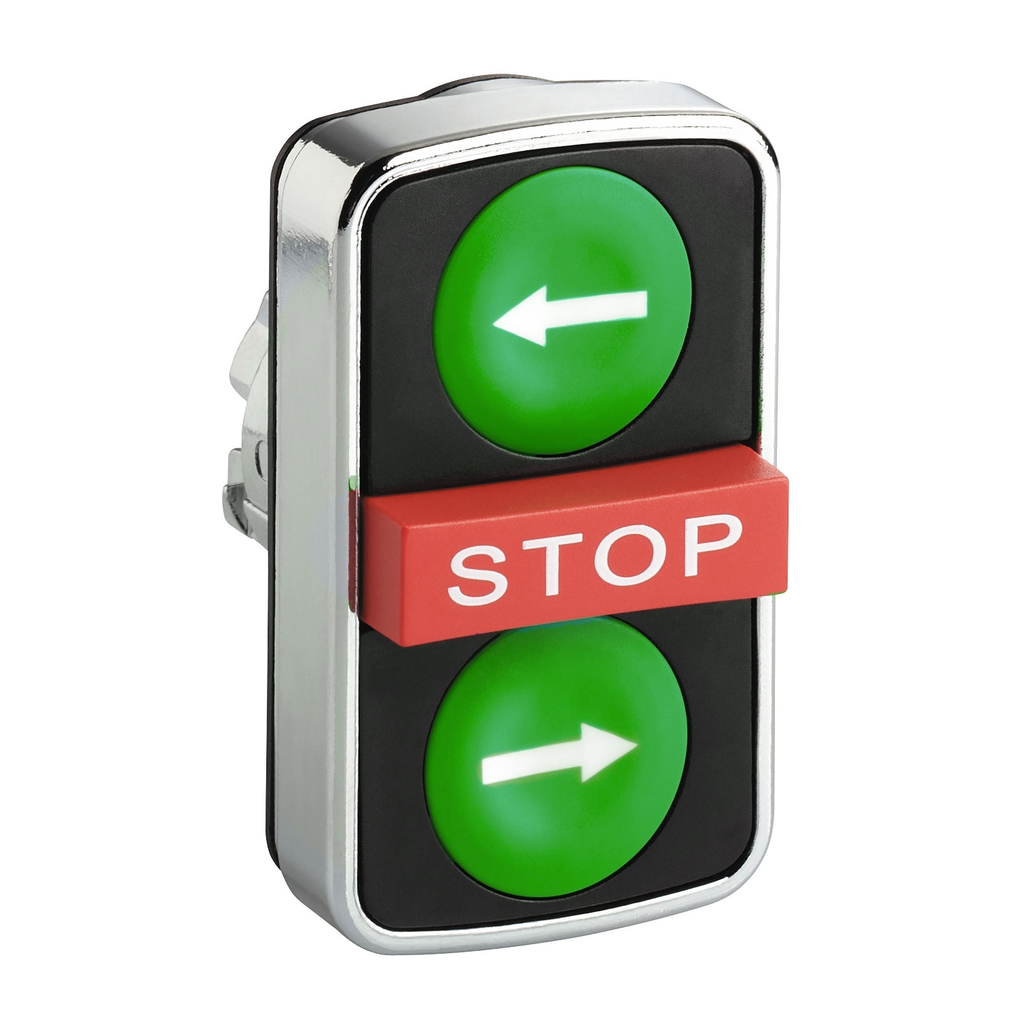

This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It is marked with "left arrow", "STOP" and "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It is marked with "left arrow", "STOP" and "right arrow" symbols. This 3-function head provides a complete 3 button interface to your machines
  • Electrical Composition Code
    • C1 9 single front mounting
    • C2 9 single and double front mounting
    • C2 9 single and double front mou
  • IP Degree Of Protection
    • IP69 IEC 60529
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.0110313167
    • 0 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.1 kg CO2 eq.
    • 0.0695688019
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 0.4 kg CO2 eq.
    • 0.3898410439
  • Electrical Shock Protection Class
    • class I conforming to IEC 60536
  • Nema Degree Of Protection
    • NEMA 13
    • NEMA 4X
  • Vibration Resistance
    • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0071924081
    • 0 kg CO2 eq.
  • Resistance To High Pressure Washer
    • 7000000 Pa 55 °C 0.1 m
  • Color Of Marking
    • black marking when white caps
    • white marking when green, red or black caps
    • white/white/white
  • Operator Profile
    • red projecting, STOP white)
    • green flush, left arrow white)
    • green flush, right
  • Shock Resistance
    • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • 50 gn 11 ms) half sine wave ac
  • Assets
    • CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002362_3D-CAD
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-01-12
    • Manufacturing Carbon Footprint : 0.3898410439
    • Distribution Carbon Footprint : 0.0071924081
    • Installation Carbon Footprint : 0.0110313167
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 0.0695688019
    • Legacy WEEE Scope : Out
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308035EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant
    • ROHS EUR Conformity Date : 1930
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Return Indicator : Y
    • WD Status : 1 - GSC certified
    • Bezel Material : chromium plated metal
    • Compatibility Code : ZB4
    • Device Short Name : ZB4
    • Group Of Product : flush/proj/flush marked
    • Head Type : standard
    • Main Group : triple head push-button
    • Mounting Diameter : 22 mm
    • Operators Description : green ''right arrow'' - green ''left arrow'' - red ''STOP''
    • Package Weight Lbs : 58.000 g
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : head for triple-headed push-button
    • Range Of Product : Harmony XB4
    • Returnability : Yes
    • Sale Per Indivisible Quantity : 1
    • Shape Of Signaling Unit Head : rectangular
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 0.5 kg CO2 eq.
    • Type Of Operator : spring return
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.4776335706
    • Pep Code : ENVPEP2308035EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Product Weight In G : 55
    • Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel c
    • Functional Unit Quantity : 1
    • Functional Unit Unit : Unit
    • Reference Lifetime In Y : 10
    • Energy Consumption On Product Lifetime In Kwh : 0
    • Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Acidification Ap Mole Of H Equiv Total Life Cycle : 0.0035781101
    • Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0033041103
    • Acidification Ap Mole Of H Equiv Distribution A4 : 0.00004626
    • Acidification Ap Mole Of H Equiv Installation A5 : 0.0000437867
    • Acidification Ap Mole Of H Equiv Maintenance B2 : 0
    • Acidification Ap Mole Of H Equiv Repair B3 : 0
    • Acidification Ap Mole Of H Equiv Replacement B4 : 0
    • Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0
    • Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.0001839531
    • Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.0004898849
    • Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.0022312841
    • Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.001740949
    • Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
    • Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.0004903351
    • Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
    • Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
    • Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
    • Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.000538465
    • Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 0.475400949
    • Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.388099051
    • Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.0071924081
    • Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.010540688
    • Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.0695688019
    • Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0855077106
    • Climate Change Total Kg Co2 Eq Total Life Cycle : 0.4776335706
    • Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.3898410439
    • Climate Change Total Kg Co2 Eq Distribution A4 : 0.0071924081
    • Climate Change Total Kg Co2 Eq Installation A5 : 0.0110313167
    • Climate Change Total Kg Co2 Eq Maintenance B2 : 0
    • Climate Change Total Kg Co2 Eq Repair B3 : 0
    • Climate Change Total Kg Co2 Eq Replacement B4 : 0
    • Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0
    • Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0695688019
    • Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0860427046
    • Components For Re Use Kg Total Life Cycle : 0
    • Components For Re Use Kg Manufacturing A1 A3 : 0
    • Components For Re Use Kg Distribution A4 : 0
    • Components For Re Use Kg Installation A5 : 0
    • Components For Re Use Kg Maintenance B2 : 0
    • Components For Re Use Kg Repair B3 : 0
    • Components For Re Use Kg Replacement B4 : 0
    • Components For Re Use Kg Operational Energy Use B6 : 0
    • Components For Re Use Kg End Of Life C1 C4 : 0
    • Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.0000529011
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.0000528985
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.0000000003
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.0000000004
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 0.0000000019
    • Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.0000223908
    • Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 9.8696423488
    • Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.0914946619
    • Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.1002004745
    • Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.1148214709
    • Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 0
    • Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 3.5631257414
    • Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -1.7569335706
    • Ecotoxicity Fresh Water Ctue Total Life Cycle : 65.6222304448
    • Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 65.478054567
    • Ecotoxicity Fresh Water Ctue Distribution A4 : 0.0048399348
    • Ecotoxicity Fresh Water Ctue Installation A5 : 0.0752841044
    • Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
    • Ecotoxicity Fresh Water Ctue Repair B3 : 0
    • Ecotoxicity Fresh Water Ctue Replacement B4 : 0
    • Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 0
    • Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.0640518387
    • Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -1.4648398577
    • Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.0000000459
    • Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.0000000443
    • Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.0000000004
    • Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000003
    • Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
    • Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
    • Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
    • Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0
    • Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000001
    • Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.0000000397
    • Exported Energy Mj By Energy Vector Total Life Cycle : 0
    • Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
    • Exported Energy Mj By Energy Vector Distribution A4 : 0
    • Exported Energy Mj By Energy Vector Installation A5 : 0
    • Exported Energy Mj By Energy Vector Maintenance B2 : 0
    • Exported Energy Mj By Energy Vector Repair B3 : 0
    • Exported Energy Mj By Energy Vector Replacement B4 : 0
    • Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
    • Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
    • Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
    • Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.0000032196
    • Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000031283
    • Freshwater Eutrophication Kg P Eq Distribution A4 : 0.0000000027
    • Freshwater Eutrophication Kg P Eq Installation A5 : 0.0000000797
    • Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
    • Freshwater Eutrophication Kg P Eq Repair B3 : 0
    • Freshwater Eutrophication Kg P Eq Replacement B4 : 0
    • Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0
    • Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.0000000089
    • Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.0000002327
    • Hazardous Waste Disposed Of Kg Total Life Cycle : 1.49581071
    • Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 1.4203440095
    • Hazardous Waste Disposed Of Kg Distribution A4 : 0
    • Hazardous Waste Disposed Of Kg Installation A5 : 0.0001304015
    • Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0753362989
    • Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -1.7628054567
    • Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.0000002137
    • Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000002097
    • Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.0000000039
    • Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
    • Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000002621
    • Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.0000001554
    • Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000001542
    • Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.0000000001
    • Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
    • Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.0000000011
    • Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.0000000043
    • Impacts Related To Land Use Soil Quality Total Life Cycle : 0.0025416133
    • Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.0025416133
    • Impacts Related To Land Use Soil Quality Distribution A4 : 0
    • Impacts Related To Land Use Soil Quality Installation A5 : 0
    • Impacts Related To Land Use Soil Quality Maintenance B2 : 0
    • Impacts Related To Land Use Soil Quality Repair B3 : 0
    • Impacts Related To Land Use Soil Quality Replacement B4 : 0
    • Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0
    • Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
    • Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 0.4383355715
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.4369400949
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.000017495
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.0005171631
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0
    • Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0008608185
    • Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0138902728
    • Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.0006258406
    • Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0005564656
    • Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.0000217247
    • Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.0000115963
    • Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0
    • Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.000036054
    • Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0000563871
    • Materials For Energy Recovery Kg Total Life Cycle : 0
    • Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
    • Materials For Energy Recovery Kg Distribution A4 : 0
    • Materials For Energy Recovery Kg Installation A5 : 0
    • Materials For Energy Recovery Kg Maintenance B2 : 0
    • Materials For Energy Recovery Kg Repair B3 : 0
    • Materials For Energy Recovery Kg Replacement B4 : 0
    • Materials For Energy Recovery Kg Operational Energy Use B6 : 0
    • Materials For Energy Recovery Kg End Of Life C1 C4 : 0
    • Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
    • Materials For Recycling Kg Total Life Cycle : 0.0227666726
    • Materials For Recycling Kg Manufacturing A1 A3 : 0
    • Materials For Recycling Kg Distribution A4 : 0
    • Materials For Recycling Kg Installation A5 : 0.006061809
    • Materials For Recycling Kg Maintenance B2 : 0
    • Materials For Recycling Kg Repair B3 : 0
    • Materials For Recycling Kg Replacement B4 : 0
    • Materials For Recycling Kg Operational Energy Use B6 : 0
    • Materials For Recycling Kg End Of Life C1 C4 : 0.0167048636
    • Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
    • Net Use Of Fresh Water M3 Total Life Cycle : 0.0038101778
    • Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.0032338434
    • Net Use Of Fresh Water M3 Distribution A4 : 0.0000006351
    • Net Use Of Fresh Water M3 Installation A5 : 0.0001096673
    • Net Use Of Fresh Water M3 Maintenance B2 : 0
    • Net Use Of Fresh Water M3 Repair B3 : 0
    • Net Use Of Fresh Water M3 Replacement B4 : 0
    • Net Use Of Fresh Water M3 Operational Energy Use B6 : 0
    • Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000466032
    • Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.0008787604
    • Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.2961312479
    • Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.2533066429
    • Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.0002521257
    • Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0358850534
    • Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
    • Non Hazardous Waste Disposed Of Kg Repair B3 : 0
    • Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
    • Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.0066874259
    • Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.1888333333
    • Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.0000001283
    • Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.0000001271
    • Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.0000000007
    • Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0
    • Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.0000000004
    • Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.0000000123
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.0020834065
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0018623665
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000060209
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.0000233701
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.0001374609
    • Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0002050267
    • Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0000731711
    • Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000067618
    • Radioactive Waste Disposed Of Kg Distribution A4 : 0.0000001796
    • Radioactive Waste Disposed Of Kg Installation A5 : 0.0000048168
    • Radioactive Waste Disposed Of Kg Maintenance B2 : 0
    • Radioactive Waste Disposed Of Kg Repair B3 : 0
    • Radioactive Waste Disposed Of Kg Replacement B4 : 0
    • Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0
    • Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.0000005567
    • Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000326979
    • Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.0067583452
    • Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.0060332325
    • Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0002383399
    • Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.0000875237
    • Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
    • Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0
    • Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.0003992491
    • Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.0006117657
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 9.8696423488
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 6.0914946619
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1002004745
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1148214709
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.5631257414
    • Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.7569335706
    • Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 9.9747099644
    • Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 6.1879893238
    • Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.1003374852
    • Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.1230616845
    • Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 0
    • Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 3.5633214709
    • Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -1.8063226572
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1050865753
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.0965403321
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001337159
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0082389087
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001736186
    • Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0493766904
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1746559905
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1746559905
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 9.6949863582
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.9168386714
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.1002004745
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.1148214709
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 3.5631257414
    • Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -1.7569335706
    • Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.1201257414
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.1201257414
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
    • Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0906097272
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : -0.0150398185
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.0235860617
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.0001337159
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0082389087
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0001736186
    • Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.0412323843
    • Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
    • Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
    • Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
    • Use Of Renewable Secondary Fuels Mj Installation A5 : 0
    • Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
    • Use Of Renewable Secondary Fuels Mj Repair B3 : 0
    • Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
    • Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
    • Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
    • Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
    • Use Of Secondary Materials Kg Total Life Cycle : 0.0000034994
    • Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.0000034994
    • Use Of Secondary Materials Kg Distribution A4 : 0
    • Use Of Secondary Materials Kg Installation A5 : 0
    • Use Of Secondary Materials Kg Maintenance B2 : 0
    • Use Of Secondary Materials Kg Repair B3 : 0
    • Use Of Secondary Materials Kg Replacement B4 : 0
    • Use Of Secondary Materials Kg Operational Energy Use B6 : 0
    • Use Of Secondary Materials Kg End Of Life C1 C4 : 0
    • Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
  • General Attributes
    • Product Or Component Type : head for triple-headed push-button
    • Range Of Product : Harmony XB4
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=3742077&lang=en-us
    • Take Back : No
    • Reach Free SHVC : Yes
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.4776335706
    • Circularity Profile : ENVEOLI2308035EN
    • Environmental Disclosure : ENVPEP2308035EN
    • EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Free Of SVHC : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308035EN
    • Pep Verification Date : 2023-08-01
    • PCR Version : PEP-PCR-ed4-2021 09 06
    • PSR Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : France
  • Overview Attributes
    • Device Presentation : basic element
