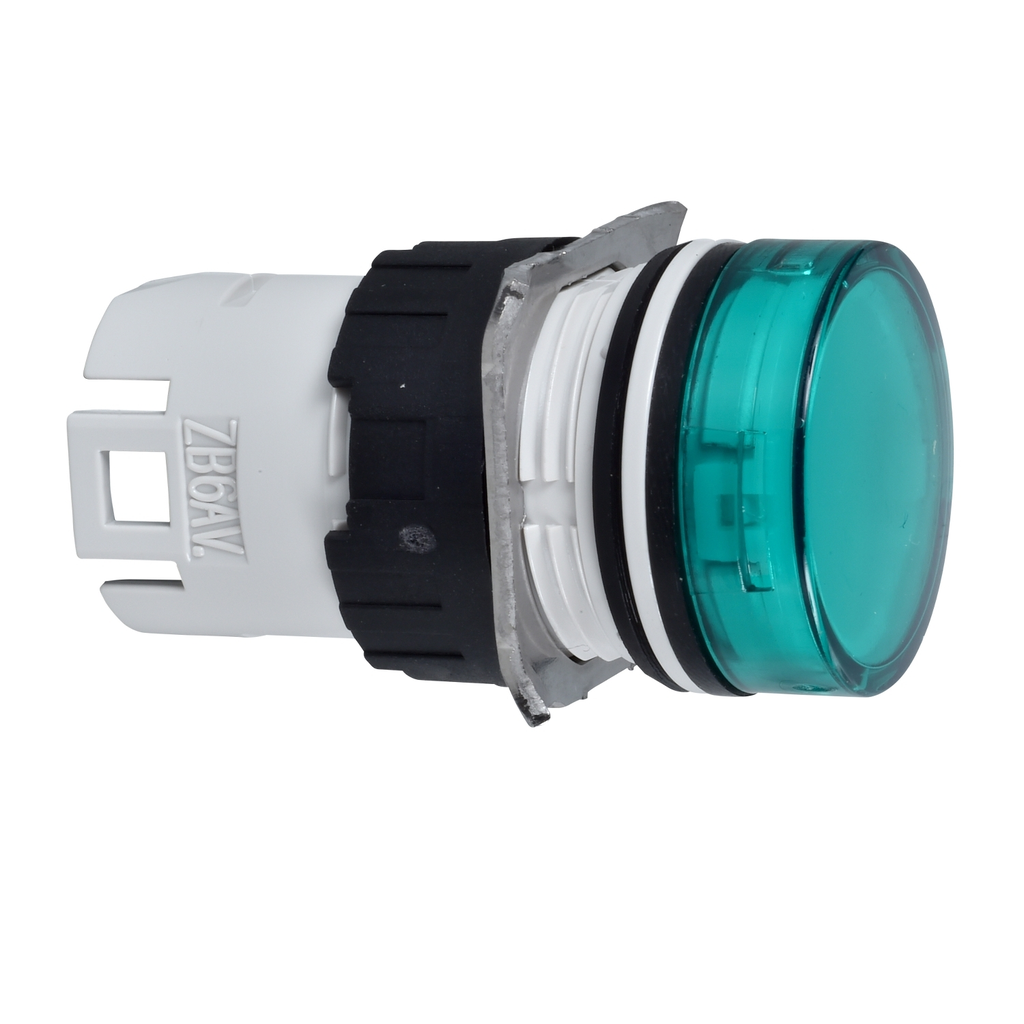

This Harmony ZB6AV3 is a green pilot light head, for integral LED. It is part of the range Harmony XB6 diameter 16mm monolithic plastic push buttons, switches, and pilot lights.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Assets
• Cad : https://download.schneider-electric.com/files?p_Doc_Ref=ZB6AVS, https://download.schneider-electric.com/files?p_Doc_Ref=ZB6AVF, https://download.schneider-electric.com/files?p_Doc_Ref=ZB6AV3_CAD
• Physical Attributes
• Cad Overall Depth : 33 mm
• Cad Overall Height : 18 mm
• Cad Overall Width : 18 mm
• Cap Operator Or Lens Color : green
• Conformance Attributes
• Product Certifications : CCC, CSA, UL, GOST
• Standards : IEC 60947-5-5, CSA C22.2 No 14, JIS C 4520, UL 508, JIS C 852, IEC 60947-1, IEC 60947-5-1
• Important Information Attributes
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, +/- 3 mm (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.001046129, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.01265
• Carbon Footprint Of The Installation Phase A5 : 0.0010812097, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2394919355
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Medium Desc : Head for pilot light, Harmony XB6, green, 16mm, integral LED
• Local Data Status : Publishable
• Local Publishable Date : 2026-01-12
• Global Commercial Status : Commercialised
• Html Descr : Green pilot light head Dia 16 for integral LED
• Return Indicator : Y
• Stocking Flag : N
• Manufacturer : Schneider Electric
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2312044EN
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant By Exemption
• Rohs Eur Full Compliance Status : Compliant By Exemption
• China Rohs In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Product Kit Identifier : N
• Bezel Material : plastic
• Compatibility Code : ZB6
• Device Short Name : ZB6
• Electrical Shock Protection Class : class II conforming to IEC 61140
• Mounting Diameter : 16 mm
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for pilot light
• Protective Treatment : TC
• Range Of Product : Harmony XB6
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Software Version : v5.9.4
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Cap Operator Or Lens Color : green
• Pep Code : ENVPEP2312044EN
• Database Version : 2022-01
• Pep Verification Date : 2023-12-07
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Data Source : extrapolated product
• Functional Unit Description : Harmony XB6 complete pilot light is part of the range diameter 16mm plastic.It has a circular head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness.
• Functional Unit Unit : Unit
• Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Energy Model Installation A5 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model Use B6 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Energy Model End Of Life C1 C4 2 : Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
• Environment Attributes Main
• Nema Degree Of Protection : NEMA 4 CSA C22.2 No 94, NEMA 4X CSA C22.2 No 94, NEMA 13 UL 50, NEMA 4 UL 50, NEMA 4X UL 50, NEMA 13 CSA C22.2 No 94
• Take Back : Nej
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 0.2542692742
• Ambient Air Temperature For Operation : -25-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2312044EN
• Environmental Disclosure : ENVPEP2312044EN
• Eu Rohs Directive : Compliant By Exemption
• Ip Degree Of Protection : IP65 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Product Compatibility : integral LED
• Pep Code : ENVPEP2312044EN
• Pep Verification Date : 2023-12-07
• Pcr Version : PEP-PCR-ed4-2021 09 06
• Psr Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony XB6
• ETIM
• ETIM 8 : EC000223
• ETIM 9 : EC000223
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Mexico, United States
