SQUARE D

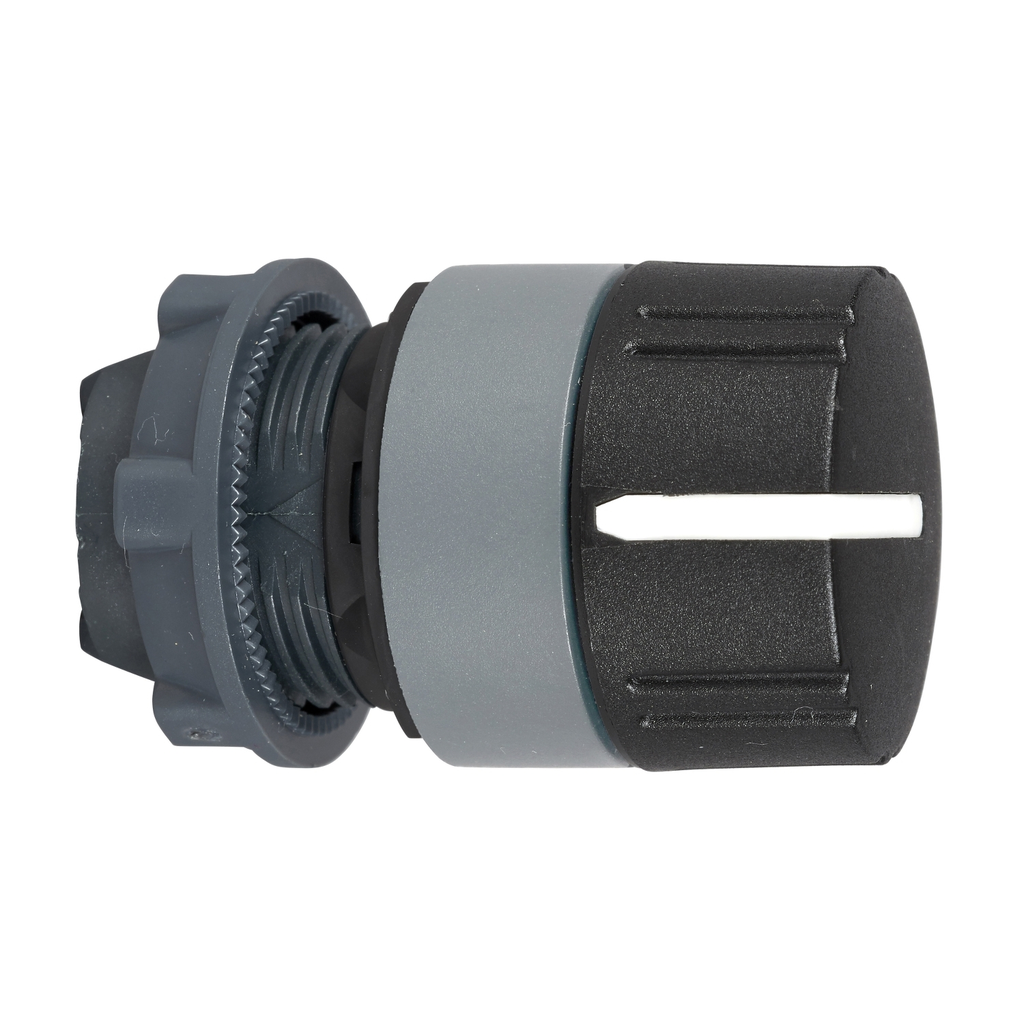

Harmony XB5, Selector switch knurled knob head, plastic, black, Ø22, 2 positions, spring return, grey bezel

HARMONY XB5, SELECTOR SWITCH K

SQDZB5AD49C0 3606489763466
19.53 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Selector switch knurled knob head, plastic, black, Ø22, 2 positions, spring return, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.024 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This switch head with knurled knob provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This switch head with knurled knob provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments.
  • Environment
    • Standards : EN/IEC 60947-1 || EN/IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ip Degree Of Protection : IP67 IEC 60529
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK06 IEC 50102
    • Protective Treatment : TH
    • Overvoltage Category : class II IEC 60536
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Product Certifications : LROS (Lloyds register of shipping) || DNV || GL || BV || CSA || UL Listed
  • Complementary
    • Cad Overall Height : 29 mm
    • Device Presentation : basic element
    • Cad Overall Width : 29 mm
    • Cad Overall Depth : 46 mm
    • Mechanical Durability : 1000000 cycles
    • Net Weight : 0.024 kg
    • Electrical Composition Code : C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C3 6 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting
    • Station Name : XALD 1...5 cut-outs || XALK 2...5 cut-outs
  • Specifications
    • Type Of Operator : right to left spring return
    • Bezel Material : plastic colour plated grey
    • Head Type : standard
    • Operator Profile : black knurled knob
    • Shape Of Signaling Unit Head : round
    • Mounting Diameter : 22 mm
    • Device Short Name : ZB5
    • Product Or Component Type : head for selector switch
    • Operator Position Information : 2 positions 90°
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
