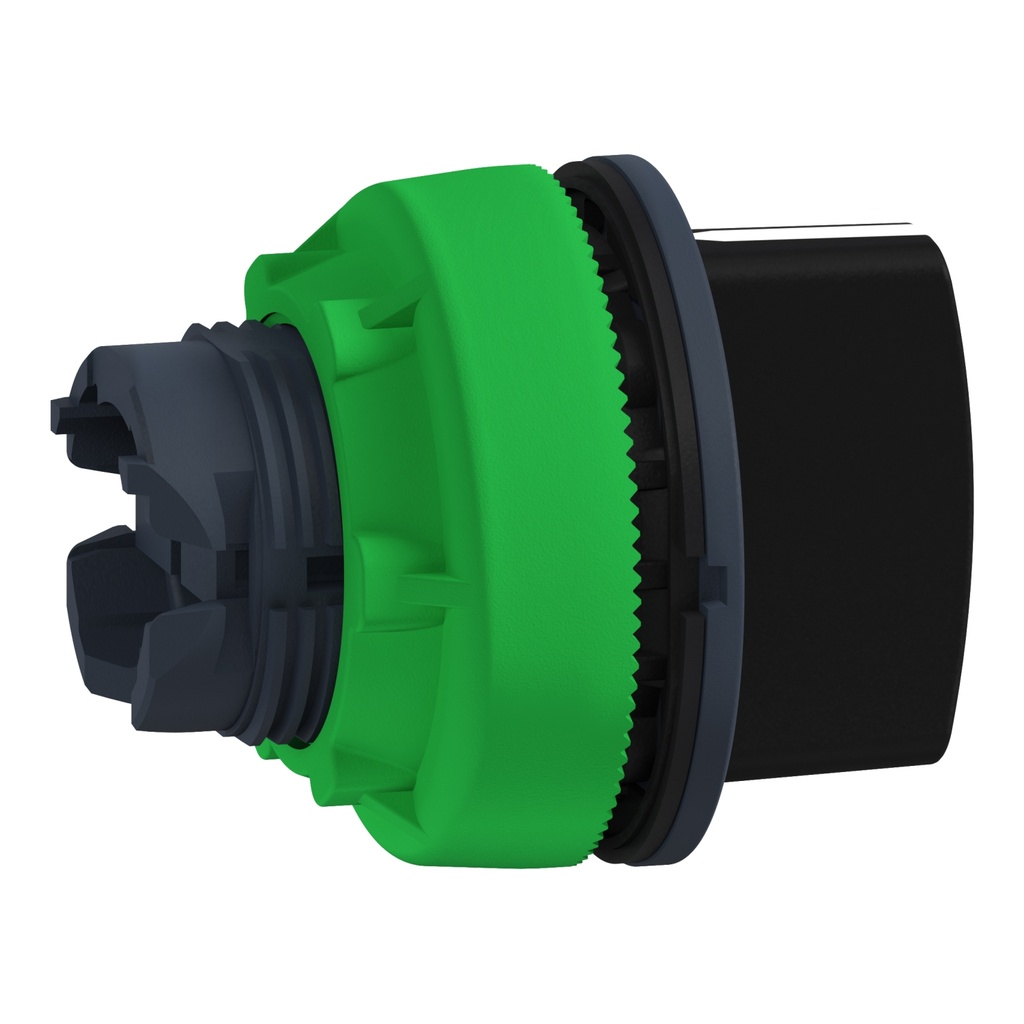

Harmony XB5, Antimicrobial Flush mounted selector switch head, plastic, black, Ø30, 3 positions, spring return to center

HARMONY XB5, ANTIMICROBIAL FLU

SQDZB5FD5 3606481339287
26.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Antimicrobial Flush mounted selector switch head, plastic, black, Ø30, 3 positions, spring return to center-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, ISO 21702, ISO 22196:2011, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Protective Treatment : TH
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ik Degree Of Protection : IK03 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Product Certifications : GL || CSA || LROS (Lloyds register of shipping) || BV || DNV || UL Listed
    • Standards : EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-5-4 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
    • Ambient Air Temperature For Storage : -40-70 °C
  • Specifications
    • Range Of Product : Harmony XB5
    • Operator Position Information : 3 positions +/- 45°
    • Device Short Name : ZB5
    • Head Type : built-in-flush
    • Shape Of Signaling Unit Head : round
    • Bezel Material : dark grey plastic
    • Mounting Diameter : 30.5 mm
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for selector switch
    • Operator Profile : black standard handle
    • Type Of Operator : to centre spring return
  • Offer Sustainability
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Reach Free Of Svhc : Yes
  • Complementary
    • Cad Overall Depth : 46 mm
    • Cad Overall Width : 37 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3 single front mounting
    • Device Presentation : basic element
    • Cad Overall Height : 37 mm
    • Mechanical Durability : 1000000 cycles
    • Net Weight : 0.031 kg
