SQUARE D

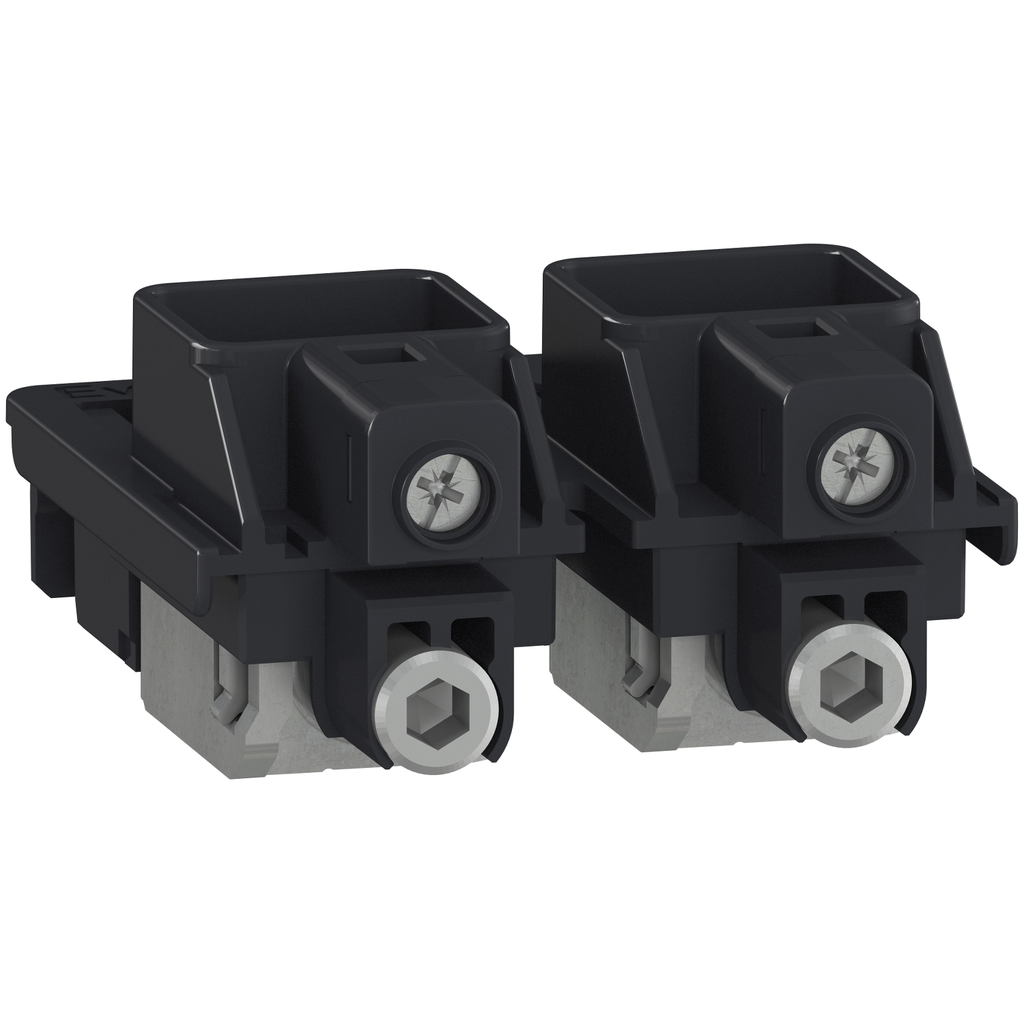

Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 2 pole, qty 1, EverLink, control wire terminal

CB EVERLINK LUG KIT (2P) W/ CW

SQDLV426973 LV426973 3606481154484
47.84 / EA
http://schema.org/OutOfStock
Mayer-DDS-Circuit breaker accessory, PowerPacT B, lug kit, mechanical, 15A to 125A, 2 pole, qty 1, EverLink, control wire terminal-1
PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This accessory is an EverLink connector kit for two pole devices. EverLink lugs minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks. This field installable kit can be applied upstream or downstream. It includes control wire terminals which provide an auxiliary power supply to a control power transformer, convenience receptacle, or metering.
QTY
  • Product Description
  • Features
  • Specifications
PowerPacT B-Frame circuit breakers offer a whole range of field installable accessories, allowing modifying the circuit breaker at any time in the design and build cycle. This accessory is an EverLink connector kit for two pole devices. EverLink lugs minimize loose wiring at installation sites caused by wire strand deformation, terminal temperature changes, and vibration or shocks. This field installable kit can be applied upstream or downstream. It includes control wire terminals which provide an auxiliary power supply to a control power transformer, convenience receptacle, or metering.
  • Prop 65
    • WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
  • Important Information Attributes
    • Persona Type Ids : LC, OM, OM8, PB
    • Persona Type Names : Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Current Of Common : 10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded, 10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded, 10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded, 10 A 0.5-6 mm² AWG 20...AWG 10), stranded or fine stranded, 10 A 1.5-6 mm² AWG 20...AWG 10), rigid, 10 A 1.5-6 mm² AWG 20...AWG 10), rigid, 10 A 1.5-6 mm² AWG 20...AWG 10), rigid, 10 A 1.5-6 mm² AWG 20...AWG 10), rigid
    • Location Of Connection : downstream, upstream
    • Connections Terminals : screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid, screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid, screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid, screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid, screw terminal - 1 2.5-95 mm² AWG 14...AWG 3/0) - solid, screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded, screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded, screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded, screw terminal 2.5-95 mm² AWG 14...AWG 3/0) - stranded, screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded, screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded, screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded, screw terminal 2.5-70 mm² AWG 6...AWG 2/0) - fine stranded
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-11-13
    • Serviceability : No
    • Traceability : No
    • Field Service Division : PPIBS
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : Yes
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status Id : COMPLIANT_WITH_EXEMPTIONS
    • China ROHS In Scope : No
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Conductor Material : steel
    • Energy Efficiency Optimized : False
    • Halogen Free Status : Halogen free product
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : mechanical lug
    • Range Of Product : PowerPact B
    • Returnability : Yes
    • Sustainable Packaging : No
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Relationship Type : Compatible relationship
    • Product Kit Identifier : N
  • General Attributes
    • Product Or Component Type : mechanical lug
    • Range Of Product : PowerPact B
  • Environment Attributes Main
    • EU ROHS Directive : Compliant By Exemption​, Compliant with Exemptions
    • ROHS Exemption Information : Yes
    • Take Back : No
    • Halogene Performance : Halogen free product
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Halogen Content Performance : Halogen free product
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Complementary Attributes
    • Line Rated Current : 15-125 A copper, 15-125 A copper, 15-100 A aluminium, 15-100 A aluminium
