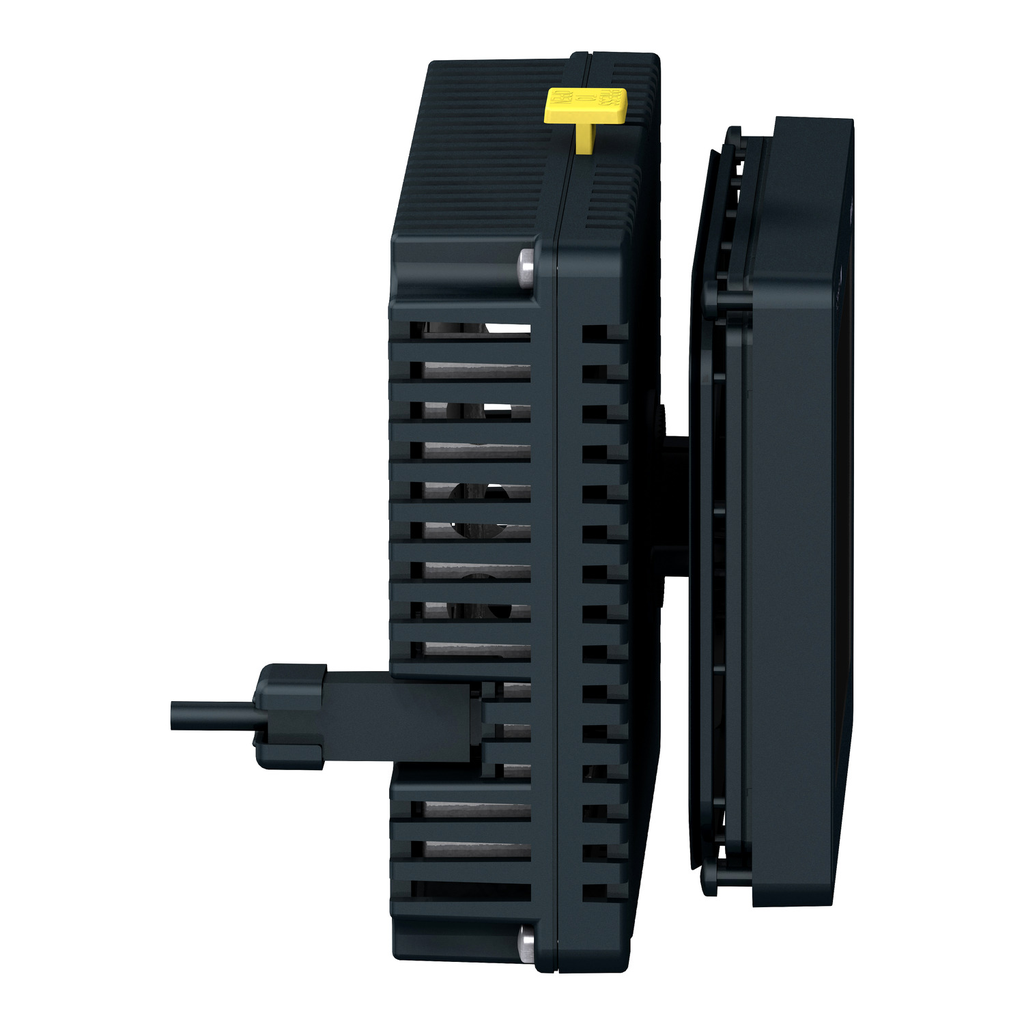

This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 3.5" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines.
- Environment
- Product Certifications : cULus || C-tick || Marine || UL class 1 Div2 T4A ou T5 || UKCA
- Ambient Air Temperature For Operation : 0-50 °C
- Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
- Standards : IEC 61000-6-2 || IEC 61131-2 || UL 1604 || UL 508 || FCC Class A
- Immunity To Microbreaks : 10 ms
- Vibration Resistance : +/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6
- Shock Resistance : 15 gn 11 msIEC 60068-2-27
- Ip Degree Of Protection : IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)
- Ambient Air Temperature For Storage : -20-60 °C
- Nema Degree Of Protection : NEMA 4X front panel indoor use)
- Relative Humidity : 0-85 % without condensation
- Operating Altitude : <= 6561.68 ft (2000 m)
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP2101003EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI2101003EN
- Upgradeability : Upgradeable through digital modules and upgraded components
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Silicon Free : Yes
- Complementary
- Number Of Pages : limited by internal memory capacity
- Brightness : 16 levels
- Height : 98.15 mm
- Inrush Current : 30 A
- Power Consumption In W : 6.5 W
- Supply : external source
- Display Resolution : 320 x 240 pixels QVGA
- Marking : with Schneider logo || CE
- Processor Frequency : 333 MHz
- Fixing Mode : Ø 22 mm hole
- Backlight Lifespan : 50000 hours
- Touch Panel : analogue
- Supply Voltage Limits : 20.4-28.8 V
- Integrated Connection Type : 1 USB 2.0 type mini B || 1 USB 2.0 type A || COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s) || power supply - removable screw terminal block || 1 Ethernet - RJ45
- Display Size : 3.5 inch
- Downloadable Protocols : Modbus TCP/IP || Modbus || Uni-TE || third party protocols
- Realtime Clock : access to the PLC real-time clock
- Enclosure Material : PC/PBT
- Display Colour : 65536 colours
- Width : 118 mm
- Display Type : QVGA TFT colour touchscreen
- Depth : 55.3 mm
- Character Font : Chinese (simplified Chinese) || Japanese (ANK, Kanji) || ASCII || Korean || Taiwanese (traditional Chinese)
- Memory Description : application memory 16 MB || back up of data 64 kB
- [Us] Rated Supply Voltage : 24 V DC
- Specifications
- Country of Origin : China
- Width : 118 mm
- Height : 98.15 mm
- Range Of Product : Harmony STO & STU
- Product Or Component Type : touch panel screen
- Operating System : Harmony
- Processor Name : CPU ARM9
- Software Designation : Vijeo Designer
